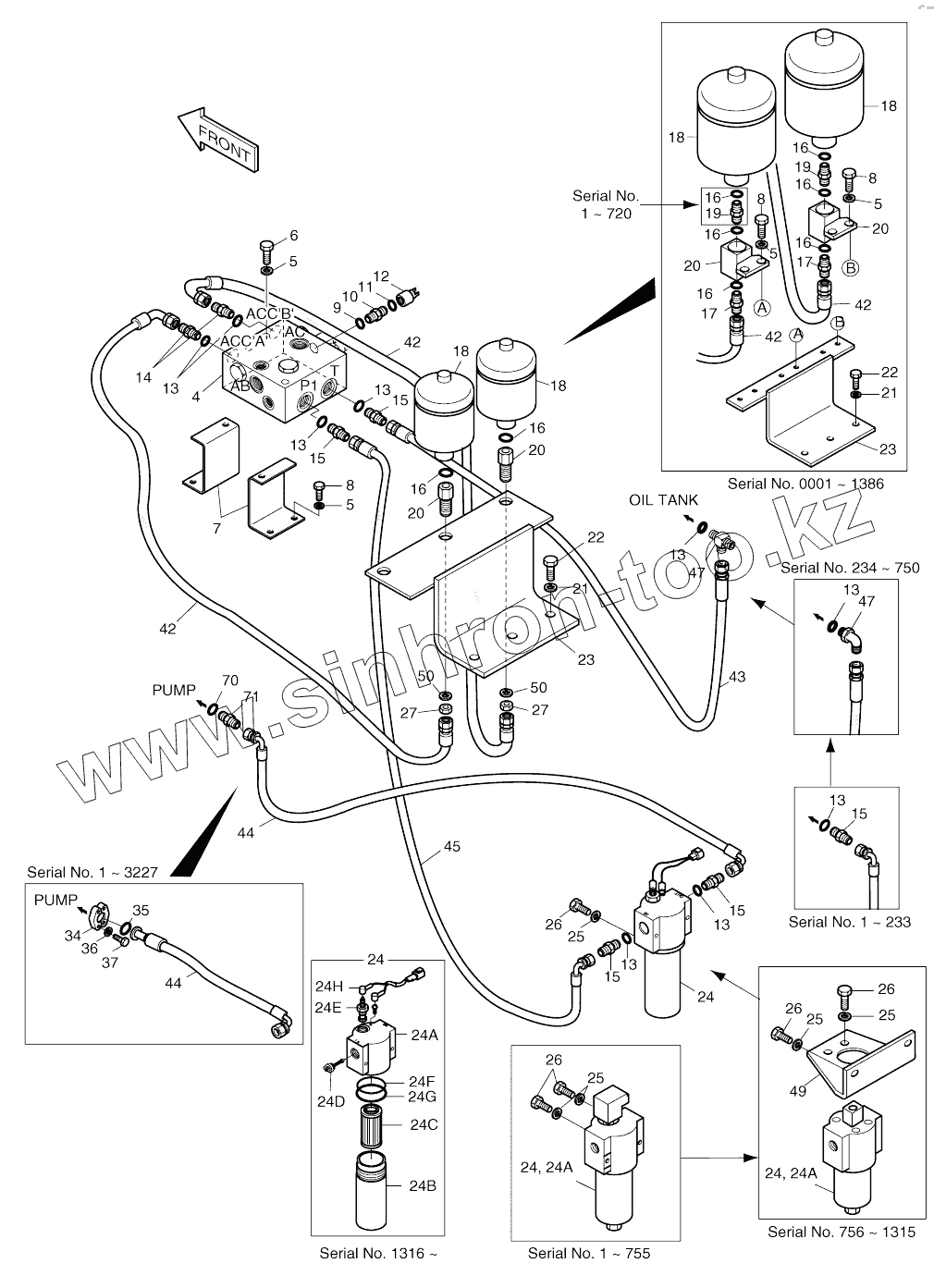

Каталог запасных частей к технике: Doosan SOLAR 130W-V(2). BRAKE PIPING (2)
24G
27
27
26
26
26
26
26
26
26
26
26
26
26
26
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
24H
34
24F
24E
24D
24C
24B
24A
24A
24A
24
24
24
24
24
44
44
44
71
70
50
50
49
47
47
47
47
45
44
44
24A
24A
24A
43
42
42
42
42
42
42
42
42
42
42
37
36
35
9
16
16
16
16
16
16
16
16
16
15
15
15
15
15
15
15
15
15
15
15
15
14
13
13
13
13
13
13
13
13
12
11
10
16
16
16
16
16
16
16
16
16
8
8
8
8
8
8
8
7
6
5
5
5
5
5
5
5
4
16
16
16
16
16
16
16
16
16
17
17
18
18
18
18
18
18
18
18
19
19
20
20
20
20
20
20
20
20
21
21
22
22
23
23
23
23
23
23
23
24
24
24
24
24
24
24
24
24
24
24A
24A
24A
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 24G | PF1116-0001 | Ring, back up | |
| 27 | 121-00010D1 | NUT | |
| 26 | S0553753 | BOLT M6X1.0X55 | |
| 26 | S0504553 | BOLT M6X1.0X14 | |
| 26 | S0553753 | BOLT M6X1.0X55 | |
| 25 | S5102303 | WASHER;SPRING M6 | |
| 25 | S5102303 | WASHER;SPRING M6 | |
| 25 | S5102303 | WASHER;SPRING M6 | |
| 24H | 530-00097 | Harness | |
| 34 | 2181-9089 | FLANGE | |
| 24F | PF1116-0002 | O-ring | |
| 24E | 471-00026 | Indicator | |
| 24D | 426-00059 | Valve, by-pass | |
| 24C | 474-00009 | Element, brake filter | |
| 24B | HOUSING | Housing | |
| 24A | HEAD | Head | |
| 24 | 471-00024A | Filter, brake | |
| 44 | 2184-1201D22 | Hose | |
| 71 | 2181-1126D13 | Adapter unf | |
| 70 | S8040101 | O-RING | |
| 50 | S5111001 | Washer, spring | |
| 49 | 2197-2201 | Plate | |
| 47 | 2181-1951D8 | Tee | |
| 47 | 2181-1702D2 | ELBOW | |
| 45 | 2184-1036D51 | Hose | |
| 44 | 2184-1096D146 | Hose | |
| 24A | 2474-9063 | Element, brake filter | |
| 43 | 2184-1026D388 | HOSE PF1/2-2200L | |
| 43 | 2184-1036D319 | HOSE PF1/2-2200L | |
| 42 | 2184-1036D393 | Hose | |
| 42 | 2184-1036D125 | Hose | |
| 37 | S2209061 | BOLT;SOCKET | |
| 36 | S5110503 | WASHER;SPRING | |
| 35 | 2180-1026D30 | O-RING | |
| 9 | S8000111 | O-RING | |
| 16 | S8000141 | O-RING | |
| 15 | 2181-1126D6 | ADAPTER | |
| 15 | 2181-1126D6 | ADAPTER | |
| 14 | 2181-1126D23 | Adapter | |
| 13 | S8000181 | O-RING | |
| 12 | 2549-9093 | Switch, low pressure | |
| 11 | S8180211 | SEAL RING | |
| 10 | 2181-2180 | Adapter | |
| 16 | S8000141 | O-RING | |
| 8 | S0511853 | BOLT M10X1.5X20 | |
| 8 | S0511853 | BOLT M10X1.5X20 | |
| 7 | 2197-1552B | Bracket | |
| 6 | S0559353 | BOLT M10X1.5X90 | |
| 5 | S5102603 | WASHER;SPRING M10 | |
| 5 | S5102603 | WASHER;SPRING M10 | |
| 4 | 2420-9325A | Brake supply valve | |
| 2400-1802A | 2400-1802A | Brake piping | |
| 16 | S8000141 | O-RING | |
| 17 | 2181-1126D7 | ADAPTER PFO3/8-PF3/8 | |
| 18 | 2460-9034 | Accumulator | |
| 18 | 2460-9055 | Accumulator | |
| 19 | 2181-1938D1 | Adapter | |
| 20 | 2423-1344 | Block | |
| 20 | 181-00524 | Adapter | |
| 21 | S5102703 | WASHER;SPRING M10 | |
| 22 | S0515153 | Bolt | |
| 23 | 2197-1778 | Bracket | |
| 23 | 2197-2566A | Bracket | |
| 23 | 2197-2566B | Bracket | |
| 24 | 2471-9027 | Filter assy | |
| 24 | 2471-9054 | Filter, brake | |
| 24A | 2474-9042 | Element, filter |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
