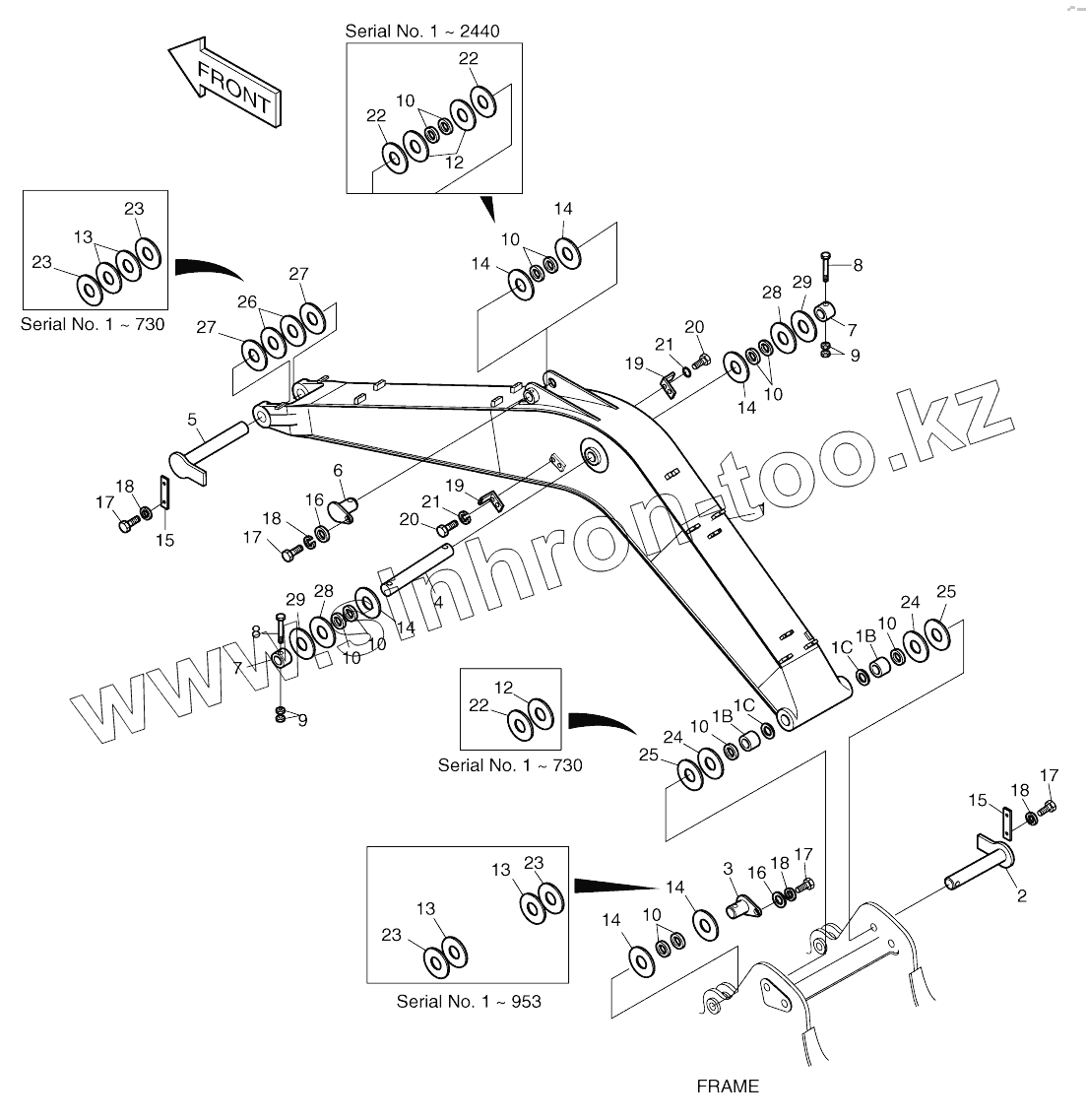

Каталог запасных частей к технике: Doosan SOLAR 130W-V(2). BOOM-4.3M
12
12
17
17
17
17
16
16
15
15
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
13
13
13
13
13
13
17
17
17
17
12
12
10
10
10
10
10
10
10
10
9
9
8
8
8
8
7
7
6
18
18
18
18
18
18
18
18
19
19
20
20
21
21
22
22
22
22
22
22
23
23
23
23
23
23
23
23
23
23
24
24
25
25
26
27
27
28
28
29
29
1B
1B
1
1B
1B
1B
1B
1B
2701-1424A
1B
1B
1B
1B
1C
1C
2
3
4
5
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 12 | 2114-1059D134 | SHIM | |
| 17 | S0521361 | Bolt | |
| 16 | 2116-1060D6 | STOPPER | |
| 15 | 2116-1514A | PLATE;STOPPER | |
| 14 | 2114-1059D188 | SHIM | |
| 14 | 2114-1059D188 | SHIM | |
| 14 | 2114-1059D188 | SHIM | |
| 13 | 2114-1059D127 | SHIM | |
| 13 | 2114-1059D127 | SHIM | |
| 17 | S0521366 | BOLT M16X2.0X35 | |
| 12 | 2114-1059D134 | SHIM | |
| 10 | 2180-1106BD4 | SEAL;DUST | |
| 9 | S4012933 | NUT | |
| 8 | S0566966 | BOLT M16X2.0X140 | |
| 8 | S0566961 | Bolt | |
| 7 | 2116-1532A | STOPPER | |
| 6 | 2123-2209C | PIN | |
| 6 | 2123-2209B | Pin | |
| 18 | S5102901 | WASHER;SPRING | |
| 18 | S5102903 | WASHER;SPRING | |
| 19 | 2195-2394B | BRACKET | |
| 20 | S0515053 | BOLT M12X1.75X25 | |
| 21 | S5102703 | WASHER;SPRING M10 | |
| 22 | 2114-1059D135 | SHIM | |
| 22 | 2114-1059D135 | SHIM | |
| 23 | 2114-1059D129 | SHIM | |
| 23 | 2114-1059D129 | SHIM | |
| 24 | 114-00001D1 | Shim | |
| 25 | 114-00001D2 | Shim | |
| 26 | 114-00001D3 | Shim | |
| 27 | 114-00001D4 | Shim | |
| 28 | 2114-1059D253 | SHIM | |
| 29 | 2114-1059D254 | SHIM | |
| 1B | 110-00033 | Bushing | |
| 2701-1424B | 2701-1424B | Boom assy | |
| 1 | 2701-1425A | Boom sub assy | |
| 1 | 2701-1425B | Boom sub assy | |
| 1 | 2701-1425C | Boom sub assy | |
| 1 | 2701-1425E | Boom sub assy | |
| 1 | 2701-1425G | Boom sub assy | |
| 1 | 2701-1425H | Boom sub assy | |
| 1 | 2701-1425I | Boom sub assy | |
| 1 | 2701-1425J | Boom sub assy | |
| 1 | 2701-1425K | Boom sub assy | |
| 1 | 2701-1425L | Boom sub assy | |
| 1 | 2701-1425M | Boom sub assy | |
| 1 | 2701-1425N | Boom sub assy | |
| 1B | 2110-1327 | Bushing | |
| 1B | 2110-1327A | BUSHING | |
| 2701-1424A | 2701-1424A | Boom assy | |
| 1B | 110-00058 | Bushing | |
| 1B | 2110-1327A | BUSHING | |
| 1C | 2180-1106BD4 | SEAL;DUST | |
| 2 | 2123-2202A | Pin | |
| 2 | 2123-2202C | Pin | |
| 2 | 2123-2202E | Pin | |
| 2 | 2123-2202G | PIN | |
| 3 | 2123-2204B | Pin | |
| 3 | 2123-2204C | Pin | |
| 3 | 2123-2204E | PIN | |
| 4 | 2123-2206A | Pin | |
| 4 | 2123-2206B | PIN | |
| 5 | 2123-2207B | Pin | |
| 5 | 2123-2207C | Pin | |
| 5 | 2123-2207E | PIN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
