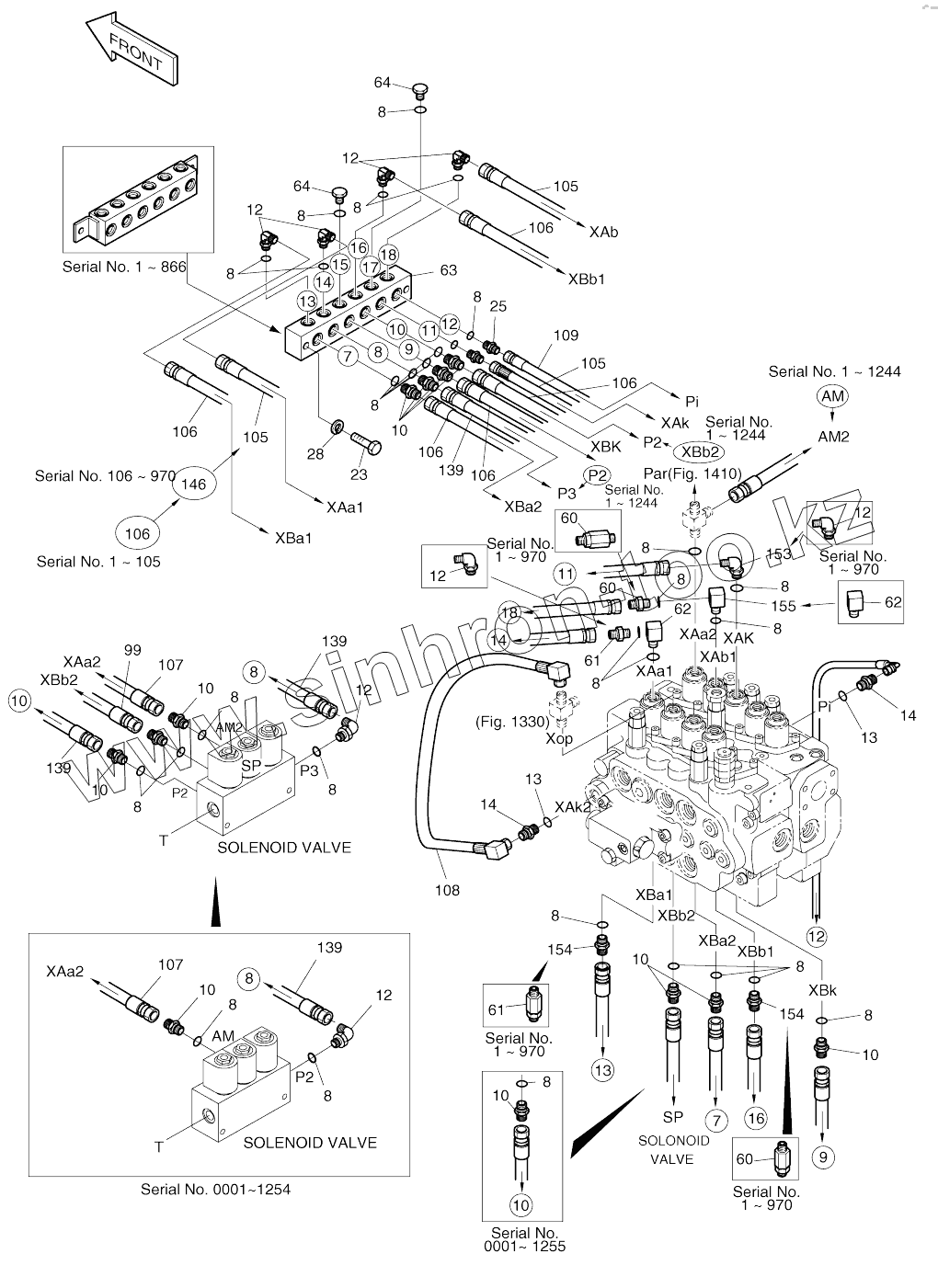

Каталог запасных частей к технике: Doosan SOLAR 130W-V(1). PILOT PIPING (7)
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
12
12
12
12
12
12
12
12
12
12
12
12
12
12
13
13
13
14
14
14
23
25
28
60
60
60
60
60
60
60
60
60
60
60
60
61
61
61
61
61
61
61
62
62
63
64
64
99
105
105
105
105
105
105
105
106
106
106
106
106
106
106
106
106
106
106
106
106
106
107
107
107
107
107
108
109
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
139
146
153
154
154
154
154
154
155
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2400-1781A | 2400-1781A | Pilot piping | |
| 8 | S8000141 | O-RING | |
| 8 | S8000141 | O-RING | |
| 8 | S8000141 | O-RING | |
| 10 | 2181-1126D7 | ADAPTER PFO3/8-PF3/8 | |
| 10 | 2181-1126D7 | ADAPTER PFO3/8-PF3/8 | |
| 12 | 2181-1702D5 | ELBOW PF3/8-PF3/8 | |
| 12 | 2181-1702D5 | ELBOW PF3/8-PF3/8 | |
| 13 | S8000111 | O-RING | |
| 14 | 2181-1126D14 | ADAPTER;S PFO-PF1/4 | |
| 23 | S0511853 | BOLT M10X1.5X20 | |
| 23 | S0512953 | BOLT M10X1.5X65 | |
| 25 | 2181-1126D36 | ADAPTER PFO3/8-PF1/4 | |
| 28 | S5102603 | WASHER;SPRING M10 | |
| 60 | 2426-9035 | Shockless valve | |
| 60 | 2181-2822D7 | Adapter, orifice | |
| 60 | 181-00144D7 | Adapter, orifice | |
| 61 | 2426-9034 | Valve, shockless | |
| 61 | 2181-2822D5 | Orifice | |
| 61 | 181-00144D5 | Adapter | |
| 62 | 2181-2295D16 | Elbow | |
| 63 | 2423-1550 | Block | |
| 63 | 2423-1492 | Block | |
| 64 | 2181-1950D2 | PLUG PFO1/2 | |
| 99 | 2184-1045D206 | Hose | |
| 105 | 2184-1045D206 | Hose | |
| 105 | 2184-1045D206 | Hose | |
| 106 | 2184-1045D205 | Hose | |
| 106 | 2184-1045D205 | Hose | |
| 107 | 2184-1045D205 | Hose | |
| 107 | 2184-1045D215 | Hose | |
| 108 | 2184-1129D8 | Hose | |
| 108 | 2184-1129D26 | Hose | |
| 109 | 2184-1046D79 | HOSE PF1/4-2000L | |
| 139 | 2184-1045D63 | Hose | |
| 139 | 2184-1045D217 | Hose | |
| 139 | 2184-1045D220 | Hose | |
| 139 | 2184-1045D220 | Hose | |
| 139 | 2184-1045D63 | Hose | |
| 146 | 2184-1026D105 | Hose | |
| 153 | 2181-1702D51 | Elbow | |
| 154 | 2181-2822D6 | Orifice | |
| 154 | 181-00144D6 | Adapter | |
| 155 | 2181-2295D17 | Elbow |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
