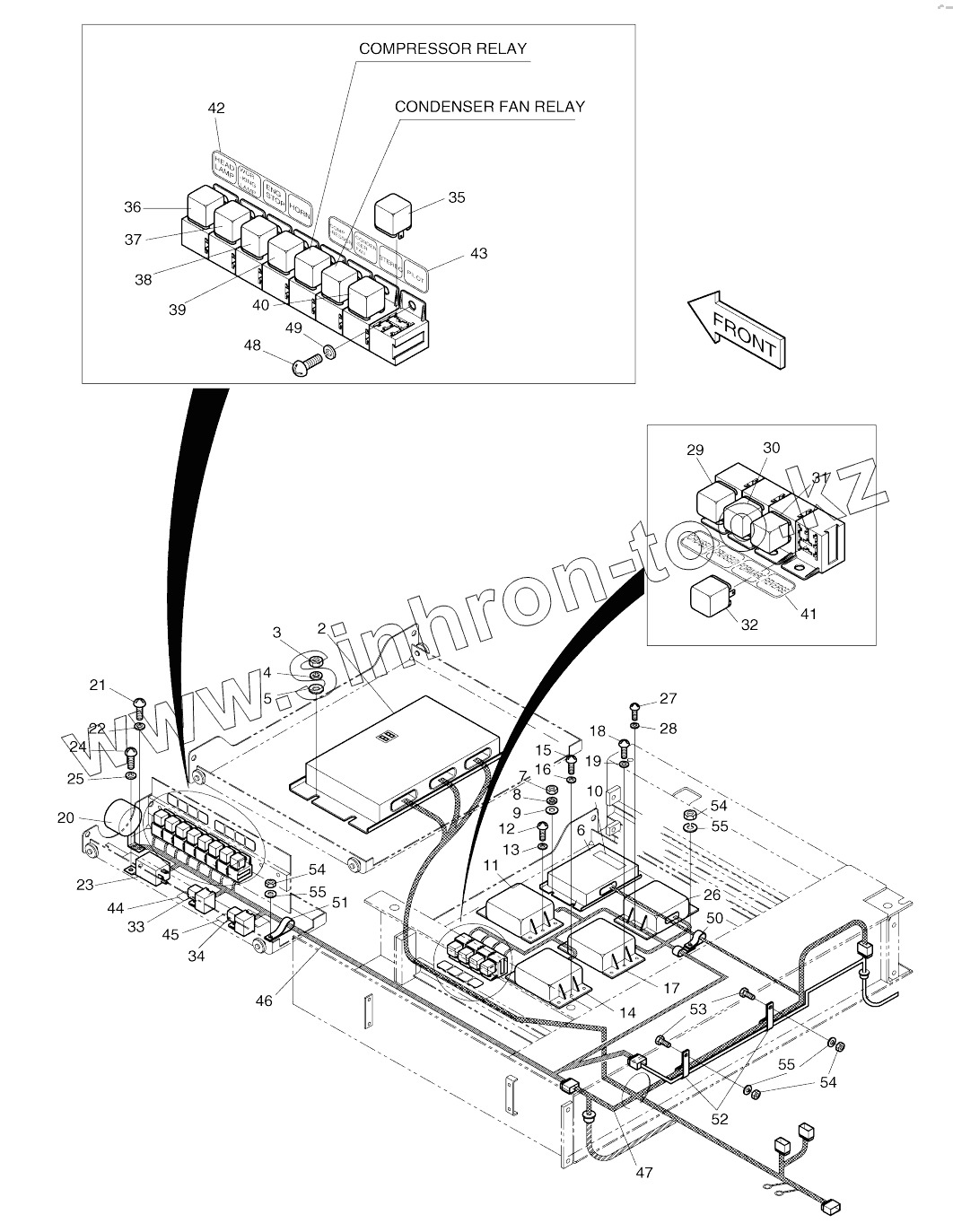

Каталог запасных частей к технике: Doosan SOLAR 130W-V(1). ELECTRIC BOX ASSY-ELECTRIC

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
2500-1175C
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
54
55
55
55
Позиция на иллюстрации Заводской номер детали Название детали
2500-1175E 2500-1175E Electric box assy
2500-1175C 2500-1175C Electric box assy
2500-1175M 2500-1175M Electric box assy
2500-1175L 2500-1175L Electric box assy
2500-1175K 2500-1175K Electric box assy
2500-1175I 2500-1175I Electric box assy
2500-1175J 2500-1175J Electric box assy
2500-1175G 2500-1175G Electric box assy
2500-1175H 2500-1175H Electric box assy
2 2543-1038 Controller, epos-v
3 S4012633 NUT M10X1.5
4 S5102603 WASHER;SPRING M10
5 S5010613 WASHER;PLAIN
6 2543-1036 Controller, throttle
7 S4012333 NUT M6X1.0
8 S5102303 WASHER;SPRING M6
9 S5010313 WASHER;PLAIN
10 2190-3231D3 Plate, name
10 2190-3231D6 Plate, name
11 2543-9015 STARTER;CONTROLLER
12 S3450943 SCREW M6X1.0X10
13 S5102303 WASHER;SPRING M6
14 2537-9008 TIMER;WIPER
15 S3450943 SCREW M6X1.0X10
16 S5102303 WASHER;SPRING M6
17 2531-1003 CONVERTER;DC-DC (2)
18 S3450953 SCREW M6X1.0X12
19 S5102303 WASHER;SPRING M6
20 2516-1116 BUZZER;PILOT
21 S3450943 SCREW M6X1.0X10
22 S5102303 WASHER;SPRING M6
23 2525-1009 Unit, blinker
23 2525-1011 Unit, blinker
24 S3450943 SCREW M6X1.0X10
25 S5102303 WASHER;SPRING M6
26 2543-9025 Unit, control
26 2543-1046 Unit, control
27 S3450943 SCREW M6X1.0X10
28 S5102303 WASHER;SPRING M6
29 2544-9029 Relay, engine stop
29 2544-9033 RELAY
30 2544-9033 RELAY
30 2544-9029 Relay, engine stop
31 2544-9029 Relay, engine stop
31 2544-9033 RELAY
32 2544-9029 Relay, engine stop
32 2544-9033 RELAY
33 2544-9029 Relay, engine stop
33 2544-9033 RELAY
34 2544-9029 Relay, engine stop
34 2544-9033 RELAY
35 2544-9029 Relay, engine stop
35 2544-9033 RELAY
36 2544-9033 RELAY
36 2544-9029 Relay, engine stop
37 2544-9029 Relay, engine stop
37 2544-9033 RELAY
38 2544-9029 Relay, engine stop
38 2544-9033 RELAY
39 2544-9029 Relay, engine stop
39 2544-9033 RELAY
40 2544-9029 Relay, engine stop
40 2544-9033 RELAY
41 2190-2037D2 Plate, name
42 2190-2037D19 PLATE;NAME
43 2190-2037D21 Plate, name
44 2190-2037D22 Plate, name
45 2190-2037D23 Plate, name
46 2530-1618 Harness, electric box
46 2530-1618A Harness, electric box
46 2530-1618B Harness, electric box
46 2530-1618C Harness, electric box
46 2530-1618E Harness, electric box
47 2530-1617B Harness, cabin
47 2530-1617E Harness, cabin
47 2530-1617C Harness, cabin
47 2530-1617A Harness, cabin
48 S3450823 SCREW M5X0.8X10
49 S5100203 WASHER;SPRING
50 2124-1509D2 CLIP D18
51 2124-1509D4 CLIP
52 2124-1509D5 Clip
53 S0508853 BOLT M8X1.25X20
54 S4012533 NUT M8X1.25
55 S5102503 WASHER;SPRING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
