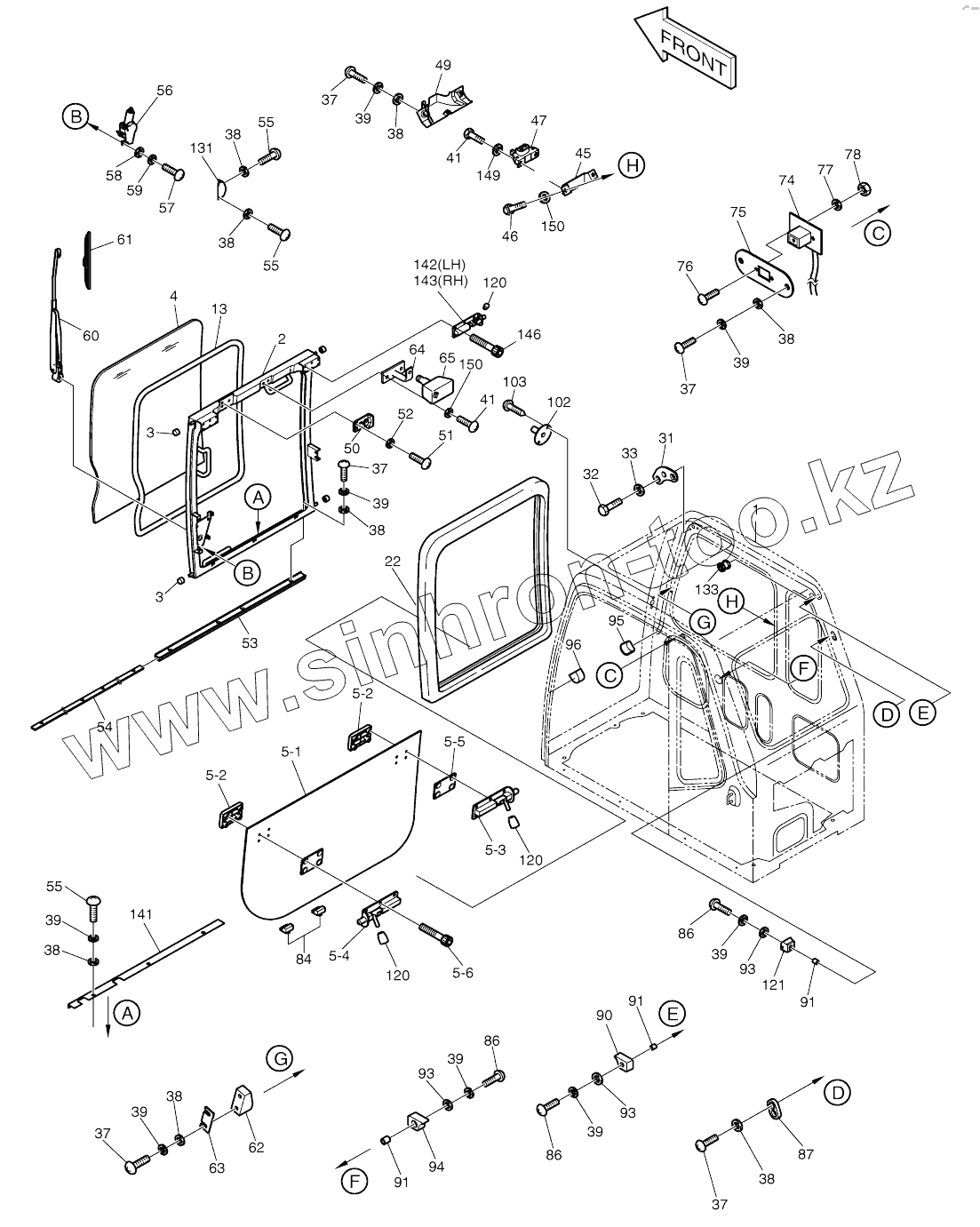

Каталог запасных частей к технике: Doosan SOLAR 130W-V(1). CABIN (1)
63
86
86
86
84
78
77
76
75
74
65
64
87
62
61
60
59
58
57
56
55
55
55
54
131
150
150
149
146
141
133
53
121
120
120
120
103
102
96
95
94
93
93
93
91
91
91
90
2
5-3
5-2
5-2
5-1
4
3
3
5-4
1
39
39
39
39
39
39
39
39
52
51
50
49
47
46
45
41
41
38
38
38
38
38
38
38
38
37
37
37
37
37
33
32
31
22
13
5-6
5-5
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 63 | 2114-1854 | Shim, stopper | |
| 86 | S3450993 | SCREW M6X1.0X25 | |
| 84 | 2161-2211 | STOPPER;RUBBER | |
| 78 | S4010003 | NUT M3X0.5 | |
| 77 | S5020013 | WASHER;PLAIN M3 | |
| 76 | S3450343 | SCREW M3X0.5X10 | |
| 75 | 2891-1323 | PLATE | |
| 74 | 2530-1605B | Harness, wiper | |
| 74 | 2530-1605A | Harness, wiper | |
| 74 | 2530-1605 | Harness, wiper | |
| 65 | 2903-6006 | Mirror, room | |
| 64 | 2197-1712 | Bracket | |
| 87 | 2514-1013 | HOLDER | |
| 62 | 2116-1518 | Stopper, front window | |
| 61 | 2507-6004 | Blade, wiper | |
| 60 | 2541-6020 | WIPER ARM ASS'Y | |
| 59 | S5102203 | WASHER SPRING M5 | |
| 58 | S5010213 | WASHER PLAIN M5 | |
| 57 | S3450833 | SCREW M5X0.8X12 | |
| 56 | 2538-9013A | Wiper, motor | |
| 56 | 2538-9013 | Wiper, motor | |
| 55 | S3450953 | SCREW M6X1.0X12 | |
| 54 | 2159-1171 | Plate, front | |
| 131 | 2403-1072 | Cover, wiper motor | |
| 150 | 2114-1058D45 | WASHER M10 | |
| 149 | 2114-1898D2 | WASHER M8 | |
| 146 | S2203061 | Bolt, socket | |
| 143 | 2125-9059 | Slide latch | |
| 143 | 2125-9041 | Slide latch | |
| 142 | 2125-9058 | Slide latch | |
| 142 | 2125-9040 | Slide latch | |
| 141 | 2621-3886B | Cover | |
| 141 | 2621-3886A | Cover | |
| 133 | 2160-1004D50 | Bushing, rubber | |
| 53 | 2161-2221A | Seal, rubber | |
| 121 | 2161-2212 | STOPPER;RUBBER | |
| 120 | 2160-1307 | CAP;RUBBER | |
| 103 | S3643359 | SCREW;TAPPING | |
| 102 | 2114-1855 | WASHER ASS'Y | |
| 96 | 2161-2209 | STOPPER;RUBBER LH | |
| 95 | 2161-2210 | STOPPER;RUBBER RH | |
| 94 | 2161-2207 | STOPPER;RUBBER LH | |
| 93 | 2114-1058D52 | WASHER | |
| 91 | 2140-1338 | PIPE;SPACER | |
| 90 | 2161-2208 | STOPPER;RUBBER RH | |
| 2 | 2622-1427B | Panel assy, front | |
| 5-3 | 2125-9059 | Slide latch | |
| 5-3 | 2125-9041 | Slide latch | |
| 5-2 | 2229-1048 | Retainer | |
| 5-1 | 2903-1209 | Glass | |
| 5 | 2903-1215B | Glass, front lower | |
| 5 | 2903-1215A | Glass, front lower | |
| 4 | 2903-1208 | Glass, front upper | |
| 3 | 2154-1033 | ROLLER | |
| 2 | 2622-1529B | Panel assy, front | |
| 2 | 2622-1529A | Panel assy, front | |
| 2 | 2622-1529 | Panel assy, front | |
| 5-4 | 2125-9040 | Slide latch | |
| 1 | 2622-1428C | Cabin | |
| 1 | 2622-1428B | Cabin | |
| 2622-1429Q | 2622-1429Q | Cabin assy | |
| 2622-1429N | 2622-1429N | Cabin assy | |
| 2622-1429M | 2622-1429M | Cabin assy | |
| 2622-1429J | 2622-1429J | Cabin assy | |
| 2622-1429H | 2622-1429H | Cabin assy | |
| 2622-1429G | 2622-1429G | Cabin assy | |
| 2622-1429E | 2622-1429E | Cabin assy | |
| 2622-1429C | 2622-1429C | Cabin assy | |
| 39 | S5102303 | WASHER;SPRING M6 | |
| 52 | S5210503 | Washer | |
| 51 | S3453103 | Screw | |
| 50 | 2142-9004 | Striker | |
| 49 | 2621-3739 | Cover, auto lock | |
| 47 | 2125-9056 | CATCH;AUTO LOCK | |
| 47 | 2125-9034 | Lock, auto catch | |
| 46 | 2120-2166D4 | BOLT M10X1.5X20 | |
| 46 | S0511853 | BOLT M10X1.5X20 | |
| 45 | 2197-1711 | BRACKET;AUTO LOCK | |
| 41 | 2120-2166D5 | BOLT M8X1.25X20 | |
| 2622-1429B | 2622-1429B | Cabin assy | |
| 38 | S5010313 | WASHER;PLAIN | |
| 37 | S3450973 | SCREW M6X1.0X16 | |
| 33 | S5210303 | WASHER;TOOTHED LOCK | |
| 32 | 2120-2150D3 | BOLT M6X1.0X16 | |
| 31 | 2131-1131 | Holder, latch | |
| 22 | 2162-1063 | Strip, weather | |
| 13 | 2198-1053 | H-rubber, front | |
| 5-6 | S2203061 | Bolt, socket | |
| 5-5 | 2180-1266 | Packing | |
| 5-4 | 2125-9058 | Slide latch |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
