Каталог запасных частей к технике: Doosan SOLAR 130W-V(1). BREAKER PACKAGE VALVE

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE (1-1381) TIMING GEAR CASE (1382-) FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD VALVE MACHANISM OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP AND COOLING PUMP INTAKE AND EXHAUST MANIFOLD FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT (1-1381) OVER HAUL GASKET KIT (1382-) FRAME (1-1166) FRAME (1) (1167-) ENGINE MOUNTING AIR CLEANER MUFFLER RADIATOR AND OIL COOLER RESERVE TANK PUMP ASSY SWING DEVICE (1-700) SWING DEVICE (701-1156) SWING DEVICE (1157-) FUEL TANK OIL TANK ENGINE CONTROL ASSY LEVER ASSY-ENGINE SUB MAIN PIPING (1) MAIN PIPING (2) MAIN PIPING (3) MAIN PIPING (4) MAIN PIPING (5) OIL COOLER PIPING (1) (1-1381) OIL COOLER PIPING (1-1) (1382-) OIL COOLER PIPING (2) OIL COOLER PIPING (3) STEERING PIPING (1)-STEER PUMP STEERING PIPING (2)-STEER VALVE STEERING PIPING (1382-) PILOT PIPING (1) (1-1381) PILOT PIPING (1-1) (1382-) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING (9) PILOT PIPING (10) PILOT PIPING (11) PILOT PIPING (12) BRAKE PIPING (1) BRAKE PIPING (2) STEERING ASSY (1-1280) STEERING WHEEL ASSY (1281-) STEERING WHEEL ASSY (1305-) STEERING CLOUMN ASSY (1305-) CABIN ASSY CABIN (1) CABIN (2) CABIN (3) CABIN (4) CABIN (5) CONTROL STAND-L.H. CONTROL STAND-R.H. SEAT & ELECTRIC BOX SEAT MOUNTING-EXCEPT EUROPE SEAT MOUNTING-EUROPE & U.S.A SEAT-EUROPE & U.S.A SEAT-EXCEPT EUROPE & U.S.A DUCT COVER ASSY HEATER COVER ASSY ELECTRIC BOX ASSY ELECTRIC BOX ASSY-ELECTRIC ELECTRIC PARTS (1)-STAND R.H. ELECTRIC PARTS (2)-STAND L.H. ELECTRIC PARTS (3)-CABIN ELECTRIC PARTS (4)-CONSOLE BOX ELECTRIC PARTS (5)-BATTERY ELECTRIC PARTS (6)-ENGINE ALTERNATOR (1-946] ALTERNATOR (947-] ELECTRIC PARTS (7)-RELATED ELECTRIC WIRING (1)-RELATED ELECTRIC WIRING (2)-ENGINE AIRCONDITIONER (1) AIRCONDITIONER (2)-AIRCON HEATER PIPING SUPPORT (1) (1-607) SUPPORT (1) (608-) SUPPORT (2) (1-607) SUPPORT (2) (608-) COVER (1) COVER (2) COVER (3) COVER (4) COVER (5) BAFFLE ASSY (1) (1-607) BAFFLE ASSY (2) (1-607) BAFFLE ASSY (2) (608-) ACOUSTIC FOAM UNDER COVER LUBRICATOR PIPING POWER TRAIN (1)-FRONT AXLE (1-1146) POWER TRAIN (1)-FRONT AXLE (1147-) POWER TRAIN (2)-REAR AXLE (1-1146) POWER TRAIN (2)-REAR AXLE (1147-) POWER TRAIN (3)-SHAFT& C/J (1-1146) POWER TRAIN (3)-SHAFT& C/J (1147-) CHASSIS COMPONENTS CHASSIS COMPONENTS-FOR DOZER & OUTRIGGER PIPING (1~607) DOZER & OUTRIGGER PIPING (608~) BRAKE PIPING (1)-FRONT BRAKE PIPING (2)-REAR STEER PIPING (1-1146) STEER PIPING (1147-) CHOCKING PIPING (1-1146) CHOCKING PIPING (1147-) PROPELLING PIPING (1)-TRAVEL (1-1146) PROPELLING PIPING (1)-REMOTE T/M (1147-) PROPELLING PIPING (2)-GEARSHIFT (1-1146) PROPELLING PIPING (2)-GEARSHIFT, TEST PORT (1147-) PROPELLING PIPING (3)-MAKE-UP (1-1146) PROPELLING PIPING (3)-MAKE-UP (1147-) PROPELLING PIPING (4)-DRAIN, TESTPORT (1-607) PROPELLING PIPING (4-1)-DRAIN, TESTPORT (608-1146) PROPELLING PIPING (4)-REMOTE T/M (1147-) DOZER BLADE BLADE PIPING CHASSIS FRAME BOOM 4.3M ARM 2.1m BUCKET 0.5MВі FRONT PIPING FRONT LUBRICATOR MAIN PUMP (1-1381) MAIN PUMP (1) (1382-) REGULATOR (1-1381) REGULATOR (1) (1382-) REGULATOR COVER (1-1381) REGULATOR COVER (1) (1382-) CONTROL ASSY (1-1381) CONTROL ASSY (1) (1382-) PROPORTINAL VALVE ASSY PROPORTIONAL VALVE ROTARY GROUP-L.H. (1-1381) ROTARY GROUP (1)-L.H. (1382-) ROTARY GROUP-R.H. (1-1381) ROTARY GROUP (2)-R.H. (1382-) PILOT GEAR PUMP RELIEF VALVE PTO PUMP (1-1381) PTO PUMP (1382-) BRAKE PUMP (1-1381) BRAKE PUMP (1) (1382-) STEERING PUMP (1) (1382-) SPRING CONTROL STEERING PUMP (1-1381) SWING MOTOR (1-700) SWING MOTOR (701-) SWING REDUCTION GEAR (1-700) SWING REDUCTION GEAR (701-) TRAVELING MOTOR PISTON MOTOR ROTARY GROUP REGULATOR CONTROL PARTS COUNTER BALANCE VALVE TRAVEL MOTOR - TBM115VA (1-1146) CONTROL VALVE (1) (1-620) CONTROL VALVE (1) (621-1224) CONTROL VALVE (3) (1225-) STEERING VALVE PILOT & T/M SUPPLY VALVE REMOTE CONTROL VALVE REMOCON VALVE-DOZER PILOT CHECK VALVE BRAKE SUPPLY VALVE SOLENOID VALVE BREAKER PACKAGE VALVE BRAKE FILTER (1-867) BRAKE FILTER (868-) BOOM CYLINDER-L.H. (1-600) BOOM CYLINDER-L.H. (601-) BOOM CYLINDER-R.H. (1-600) BOOM CYLINDER-R.H. (601-) ARM CYLINDER ARM CYLINDER-OPT. (2.5M,3.0M ARM) BUCKET CYLINDER DOZER CYLINDER-L.H. DOZER CYLINDER-R.H. CHOCKING CYLINDER OUTRIGGER CYLINDER (1-1294) OUTRIGGER CYLINDER (1295-) BOOM CYLINDER-ARTI.BOOM, L.H BOOM CYLINDER-ARTI.BOOM, R.H ARTI.BOOM CYLINDER ARM CYLINDER-ARTI.BOOM BUCKET CYLINDER-ARTI.BOOM CENTER JOINT-STD. (1-607) CENTER JOINT-STD. (608-1249) CENTER JOINT-STD. (1250-) CENTER JOINT-OUTRIGGER (OPT.) CENTER JOINT-OUTRIGGER (OPT.) INPUT SHAFT-FRONT AXLE DIFFERENTIAL GEAR-FRONT AXLE BODY-FRONT AXLE STEERING KNUCKLE-FRONT AXLE HUB-FRONT AXLE STEERING CYLINDER-FRONT AXLE UNIVERSAL JOINT-FRONT AXLE HOUSING-TRANSMISSION INPUT SHAFT-TRANSMISSION HOUSING-TRANSMISSION OIL PIPE-TRANSMISSION COUPLING-TRANSMISSION M-DISC BRAKE-TRANSMISSION PLANETARY DISCONNECTION SPUR GEAR DRIVE GEAR SHIFT OUTPUT SHAFT-TRANSMISSION (1-1146) OUTPUT SHAFT (1)-TRANSMISSION (1147-) DIFFERENTIAL CARRIER-REAR AXLE (1-1146) INPUT - REAR AXLE (1147-) DIFFERENTIAL-REAR AXLE BODY-RAER AXLE (1-1146) AXLE CASING - REAR AXLE (1147-) HUB CARRIER-REAR AXLE HUB-REAR AXLE CONTROL VALVE-ARTI.BOOM PEDAL VALVE-ARTI.BOOM (1-1664) PEDAL VALVE-ARTI.BOOM (1665-) BOOM CYL. (L.H)-ARTI. BOOM FOR BOOM CYL. (R.H)-ARTI. BOOM FOR ARM CYLINDER-ARTI. BOOM FOR BOOM CYL. (L.H)-BOOM 4.3M FOR BOOM CYL. (R.H)-BOOM 4.3M FOR ARM CYLINDER-BOOM 4.3M FOR ARM CYLINDER-BOOM 4.6M FOR TOOLS SPARE PARTS FRONT OUTRIGGER-WELDING REAR OUTRIGGER FRONT OUTRIGGER PIPING (1)-WELDING TIPE (1-1146) FRONT OUTRIGGER PIPING (1)-BOLTING TIPE (1147-) FRONT OUTRIGGER PIPING (2)-WELDING TIPE (1-1146) FRONT OUTRIGGER PIPING (2)-BOLTING TIPE (1147-) FRONT OUTRIGGER PIPING (3)-WELDING TIPE (1-721) FRONT OUTRIGGER PIPING (3-1)-WELDING TIPE (722-1146) FRONT OUTRIGGER PIPING (3-1)-BOLTING TIPE (1147-) FRONT OUTRIGGER PIPING (4)-WELDING TIPE (1-1146) FRONT OUTRIGGER PIPING (4)-BOLTING TIPE (1147-) REAR OUTRIGGER PIPING CHASSIS FRAME-FRONT OUTRIGGER (WELDING) CHASSIS FRAME-FRONT DOZER (BOLTING TIPE) (1-1295) CHASSIS FRAME-FRONT DOZER (BOLTING TIPE) (1296-) FRONT BLADE-BOLTING TYPE FRONT DOZER PIPING (1)-BOLTING TIPE (1-1146) FRONT DOZER PIPING (1-1)-BOLTING TIPE (1147-) FRONT DOZER PIPING (2)-BOLTING TIPE (1-1146) FRONT DOZER PIPING (2-1)-BOLTING TIPE (1147-) FRONT DOZER PIPING (3)-BOLTING TIPE (1-721) FRONT DOZER PIPING (3-1)-BOLTING TIPE (722-1146) FRONT DOZER PIPING (3-2)-BOLTING TIPE (1147-) FRONT DOZER PIPING (4)-BOLTING TIPE (1-1146) FRONT DOZER PIPING (4-1)-BOLTING TIPE (1147-) CHASSIS FRAME-F/OUTRIGGER BOLTING TIPE (1-1295) CHASSIS FRAME-F/OUTRIGGER BOLTING TIPE (1296-) BUCKET CRADLE-BOLTING TYPE (1146) CHASSIS FRAME-REAR DOZER, OUTRIGGER CHASSIS FRAME-F/OUTRIGGER WELDING (1-1146) CHASSIS FRAME-GERMAN HOMOLOGATION (1-1146) CHASSIS FRAME-BOLT-ON, CRADLE AND REMOTE (1147-) DOZER BLADE-GERMAN HOMOLOGATION (1-1295) CHASSIS COMPONENTS-GERMAN HOMOLOGATION (1-1295) TRAVEL MOTOR-GERMAN HOMOLOGATION (1-1295) STAY-GERMAN HOMOLOGATION (1-1295) OPTION ASSY-GERMAN HOMOLOGATION (1296-) TIRE-10.0X20X14PR ELECTRIC BOX-FOR GERMANY ELECTRIC PARTS-FOR GERMANY LAMP-FOR GERMANY ARM LAMP HARNESS-FOR FUEL FILLER PUMP ASSY AIR CLEANER-PRE CLEANER CABIN LAMP-OPT. ROTATING BEACON-OPT. SWING ALARM-OPT. PILOT PIPING-BREAKER MAIN PIPING-ONE & TWO WAY NAME PLATE-BREAKER FRONT-BREAKER (1-1724) BOOM PIPING-BOOM 4.3M (ONE WAY) ARM PIPING-ARM 2.1M (ONE WAY) ARM PIPING-ARM 2.25M (ONE WAY) BUCKET-0.25 SIDE PIN TYPE BUCKET-0.35 SIDE PIN TYPE BUCKET-0.45 SIDE PIN TYPE BUCKET ASSY-0.45 VERTICAL PIN TYPE (1225-) BUCKET-0.55 SIDE PIN TYPE BUCKET-0.65 SIDE PIN TYPE ARM 2,25M FRONT PIPING-BOOM 4,3M+ARM 2,25M FRONT PIPING-BOOM 4,6M+ARM 2,25M MAIN FRAME-ARTI.BOOM ARTICULATED UPPER BOOM-2.8M ARM-1.96M-ARTI.BOOM (1-1245) ARM-1.96M-ARTI.BOOM (1246-) ARM-2.5M-ARTI.BOOM MAIN PIPING-ARTI.BOOM PILOT PIPING-ARTI.BOOM FRONT PIPING (1)-ARTI.BOOM FRONT PIPING (2)-ARTI.BOOM BREAKER PIPING-ARTI.BOOM (1-1268) FRONT ONE WAY PIPING-ARTI.BOOM (1269-) CABIN-ARTI.BOOM (1-2080) FLOOR ASSY-ARTI.BOOM (2081-) STEREO ASSY-FOR JAPAN ENGINE COVER-EUROPE BOOM-4.6M ARM-2.5M FRONT PIPING-BOOM 4,6M+ARM 2,5M FRONT PIPING-BOOM 4,3M+ARM 2,5M ARM-3.0M FRONT PIPING-BOOM 4,6M+ARM 3M FRONT PIPING-BOOM 4,3M+ARM 3M ARM-1.9M FRONT PIPING-BOOM 4,3M+ARM 1,9M FRONT PIPING-BOOM 4,6M+ARM 2,1M LUBRICATION PIPING-BOOM 4.6M (2304-) BUCKET-0.38 (30")-SIDE PIN BUCKET-0.38 (30")-VERTICAL PIN BUCKET-0.44 (33")-SIDE PIN BUCKET-0.44 (33")-VERTICAL PIN BUCKET-0.48 (36")-SIDE PIN BUCKET-0.48 (36")-VERTICAL PIN NOISE FILTER ASSY-EUROPE (682-) TROPICAL COVER LOCK VALVE PIPING-ARTI.BOOM LOCK VALVE PIPING-BOOM 4.3M BOOM WELDMENT-BOOM 4.6M (ONE WAY) (1724) BOOM PIPING-BOOM 4.6M (ONE WAY) ARM WELDMENT-ONE WAY (1724) ARM PIPING-BOOM 4.6M + ARM 1.9M (ONE WAY) ARM PIPING-BOOM 4.6M + ARM 2.5M (ONE WAY) ARM PIPING-BOOM 4.6M + ARM 3.0M (ONE WAY) LOCK VALVE PIPING-BOOM 4.6M DOUBLE FUEL FILTER CABIN LAMP RELAY -REAR CABIN LAMP (1410-) ALTERNATOR- FOR BEACON LAMP (1410-) CABIN ASSY-WINDOW GUARD (1281-) SUN VISOR ASSY (1410-) SUN ROOF ASSY (1410- ) REMOCON VALVE MOUNT-3 SWITCH (1410-) REMOCON VALVE MOUNT-5 SWITCH (1410-) RETURN FILTER SWITCH ASSY (1620-) COUNTER WEIGHT (1373-) ARTI. BOOM-UPPER BOOM 3.3M + ARM 2.5M FRONT PIPING (1)-ARTI. BOOM FRONT PIPING (2)-ARTI. BOOM FRONT PIPING (3)-ONE WAY (ARTI.BOOM)

1

2

3

4

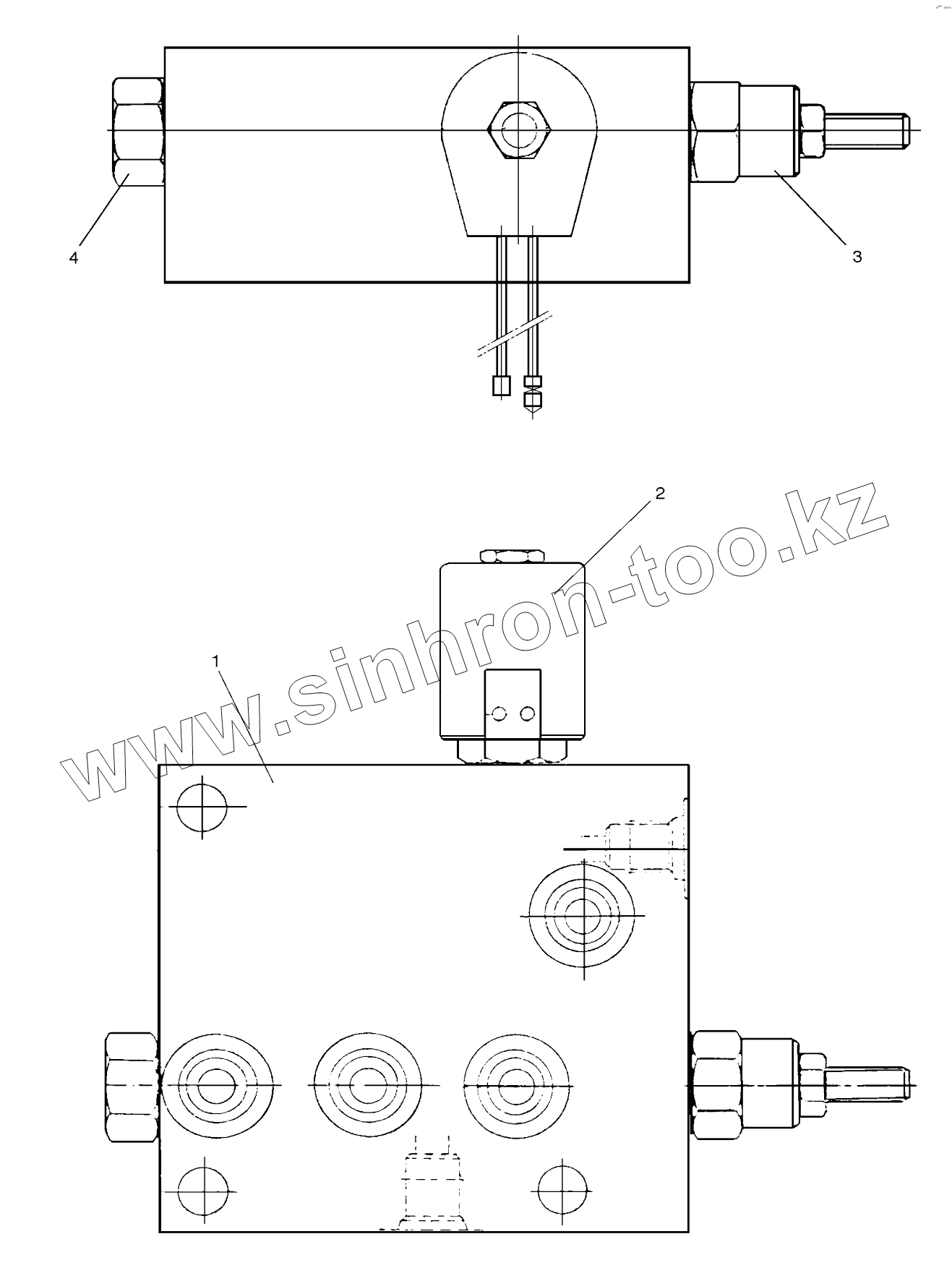

Позиция на иллюстрации	Заводской номер детали		Название детали
2420-9227A	2420-9227A		Valve, breaker
1	2420-9227A-1		Body
2	2420-9227A-2		Valve, solenoid
3	2420-9227A-3		Valve, reducing
4	2420-9227A-4		Valve, shuttle

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
