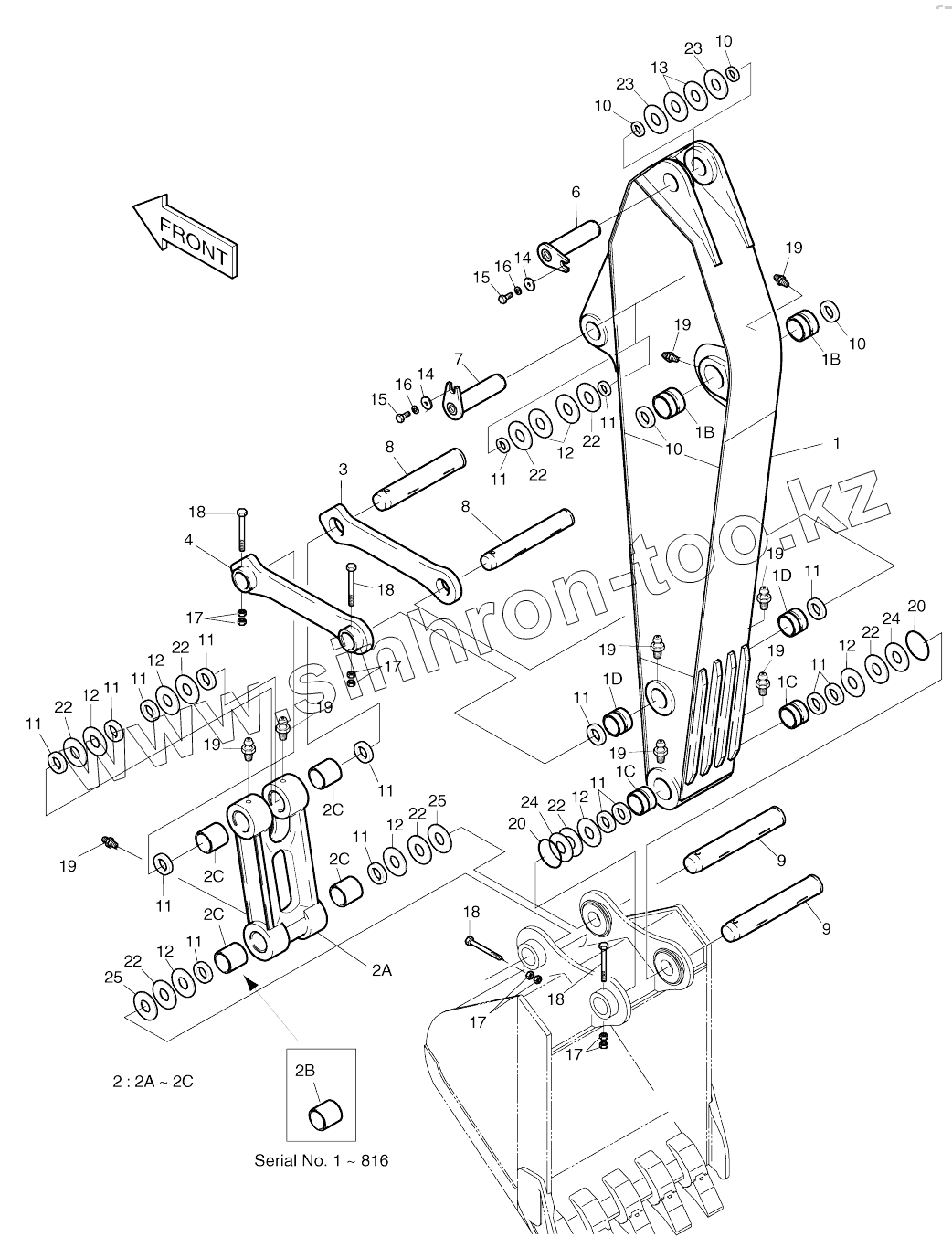

Каталог запасных частей к технике: Doosan SOLAR 130W-V(1). ARM 2.1m
11
11
11
11
11
11
11
11
11
11
11
11
11
11
10
10
10
10
9
9
9
9
9
9
8
8
8
8
8
8
8
11
11
11
11
11
11
11
11
11
11
11
11
11
11
7
6
4
3
2C
2C
2C
2C
2C
2C
2C
2C
2C
2C
2C
2C
2C
2C
2C
2C
2C
2C
2C
19
19
19
19
19
19
19
19
25
25
25
25
25
24
24
24
24
24
23
23
22
22
22
22
22
22
22
20
20
20
20
20
18
18
18
18
17
17
17
17
16
16
15
15
14
14
13
12
12
12
12
12
12
12
1B
1B
1B
1B
1B
1B
1B
1B
1B
1B
1B
1C
1C
1C
1
2
2B
2A
2A
2A
2A
2A
2A
2A
2A
2A
1D
1C
1C
1C
1C
1C
1C
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 7 | 2123-2225C | PIN | |
| 11 | 2180-1106BD3 | SEAL;DUST | |
| 10 | 2180-1106BD4 | SEAL;DUST | |
| 9 | 2123-2212C | PIN | |
| 9 | 2123-2212B | Pin | |
| 9 | 2123-2212A | Pin | |
| 8 | 2123-2211C | PIN | |
| 8 | 2123-2211B | Pin | |
| 8 | 2123-2211A | Pin | |
| 11 | 2180-1106BD3 | SEAL;DUST | |
| 7 | 2123-2225B | Pin | |
| 6 | 2123-2209C | PIN | |
| 6 | 2123-2209B | Pin | |
| 4 | 2155-1307B | LINK;GUIDE(L.H) | |
| 3 | 2155-1306B | LINK;GUIDE(R.H) | |
| 2C | 2110-1366A | BUSHING | |
| 2C | 2110-1366A | BUSHING | |
| 2C | 2110-1366 | Bushing | |
| 19 | S6710041 | NIPPLE;GREASE | |
| 25 | 2114-1995A | Spacer | |
| 25 | 2114-1995 | Spacer | |
| 24 | 2114-1994A | Spacer | |
| 24 | 2114-1994 | Spacer | |
| 23 | 2114-1059D129 | SHIM | |
| 22 | 2114-1059D89 | SHIM | |
| 20 | 180-00077D3 | O-RING | |
| 20 | 2180-1105D7 | O-ring | |
| 2B | 2110-1367B | Bushing | |
| 18 | S0566761 | Bolt | |
| 17 | S4012933 | NUT | |
| 16 | S5102901 | WASHER;SPRING | |
| 15 | S0521361 | Bolt | |
| 14 | 2116-1060D6 | STOPPER | |
| 13 | 2114-1059D127 | SHIM | |
| 12 | 2114-1058D12 | SHIM | |
| 1 | 2701-1429I | Arm sub assy | |
| 1B | 2110-1328A | BUSHING | |
| 1B | 110-00059 | Bushing | |
| 1B | 110-00009 | Bushing | |
| 1B | 2110-1328A | BUSHING | |
| 1B | 2110-1328 | Bushing | |
| 1 | 2701-1429L | Arm sub assy | |
| 1 | 2701-1429K | Arm sub assy | |
| 1 | 2701-1429J | Arm sub assy | |
| 1C | 2110-1329 | Bushing | |
| 1 | 2701-1429H | Arm sub assy | |
| 1 | 2701-1429G | Arm sub assy | |
| 1 | 2701-1429E | Arm sub assy | |
| 1 | 2701-1429C | Arm sub assy | |
| 1 | 2701-1429B | Arm sub assy | |
| 1 | 2701-1429A | Arm sub assy | |
| 2701-1428C | 2701-1428C | ARM ASS'Y-2.1m | |
| 2701-1428B | 2701-1428B | Arm assy | |
| 2 | 2155-1339A | Link, push assy | |
| 2B | 2110-1367A | Bushing | |
| 2A | 2155-1338C | LINK;PUSH | |
| 2A | 2155-1338B | Link, push | |
| 2A | 2155-1338A | Link, push | |
| 2A | 2155-1338 | Link, push | |
| 2 | 2155-1339E | LINK;PUSH ASS'Y | |
| 2 | 2155-1339C | Link, push assy | |
| 2 | 2155-1339B | Link, push assy | |
| 2701-1428A | 2701-1428A | Arm assy | |
| 1D | 2110-1330A | BUSHING | |
| 1D | 110-00101 | Bushing | |
| 1D | 2110-1330A | BUSHING | |
| 1D | 2110-1330 | Bushing | |
| 1C | 2110-1329A | BUSHING | |
| 1C | 110-00102 | Bushing | |
| 1C | 2110-1329A | BUSHING |
