1
1А
1В
1С
1D
1Е
1F
1G
1Н
1I
2
3
6
7
10
11

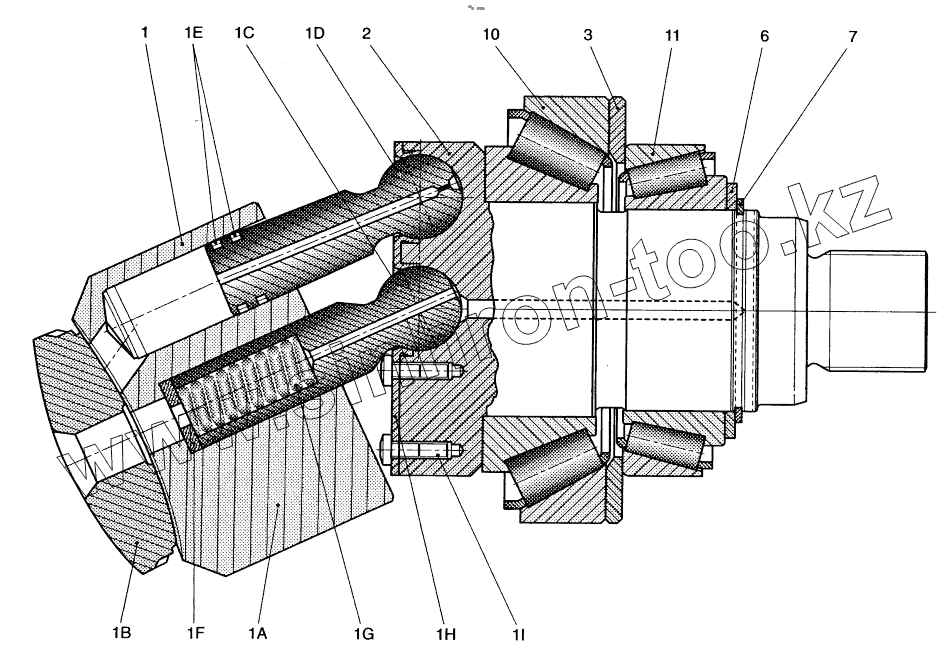

Позиция на иллюстрации
Заводской номер детали
Название детали
09603784
09603784
Rotary group
1
09603785
Rotary
1А
09430794
Cylinder
1В
09921790
Lens, control
1С
!09921576
PIN, CENTER
1D
09430790
Piston
1Е
09831897
Ring, steel sealing
1F
09921577
Shim, adjustment
1G
09921583
Spring, pressure
1Н
09062969
Plate, retaining
1I
09831108
Screw, pan head
2
09921597
Shaft, drive
3
09651499
SHIM
6
09650815
Plate, back up
7
09083369
Ring, retaining
10
09154687
Bearing, tapered-roller
11
09154688
Bearing, tapered-roller
