274-00003C
2274-6014AKT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

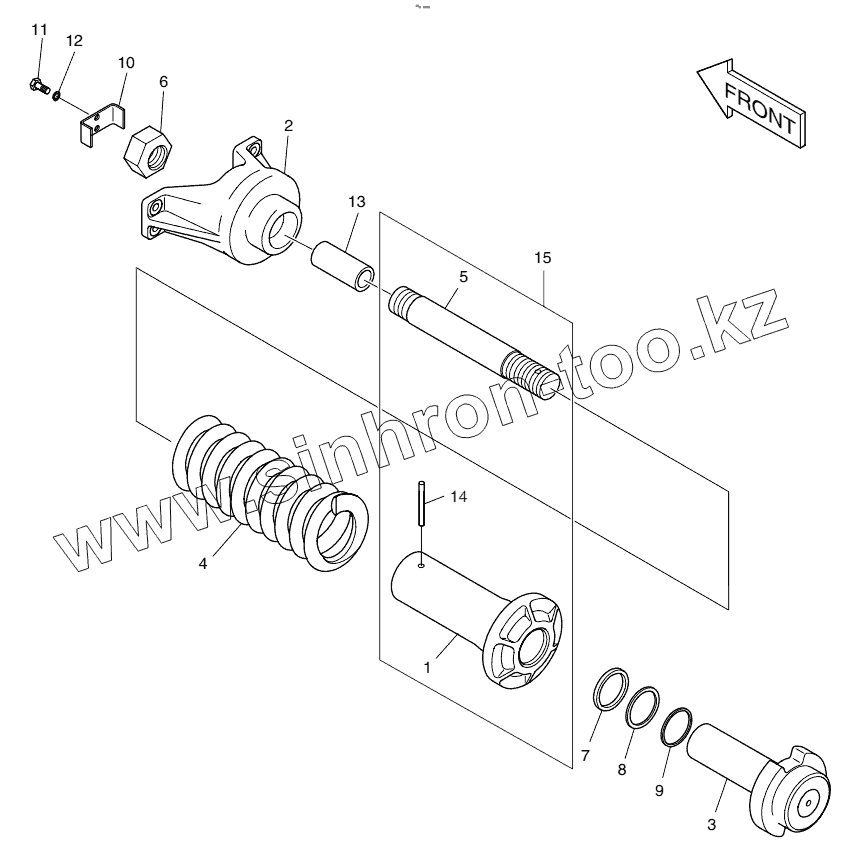

Позиция на иллюстрации
Заводской номер детали
Название детали
274-00003C
274-00003C
TRACK SPRING ASSY
2274-6014AKT
2274-6014AKT
SEAL KIT, TRACK SPRING
1
308-00030
BODY
2
195-02111
BRACKET
3
2444-6003B
ROD ASSY
4
129-00147
SPRING
5
2444-6004B
TIE BAR
6
2121-6035A
NUT
7
PACKING
PACKING
8
RING
Ring, top
9
SEAL
Seal
10
2621-6019
PLATE
11
S0718361
BOLT M14X1.5X35
12
S5102803
Washer
13
416-00017A
STOPPER
14
S5741420
PIN, SPRING D10X63
15
308-00033A
BODY ASSY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
