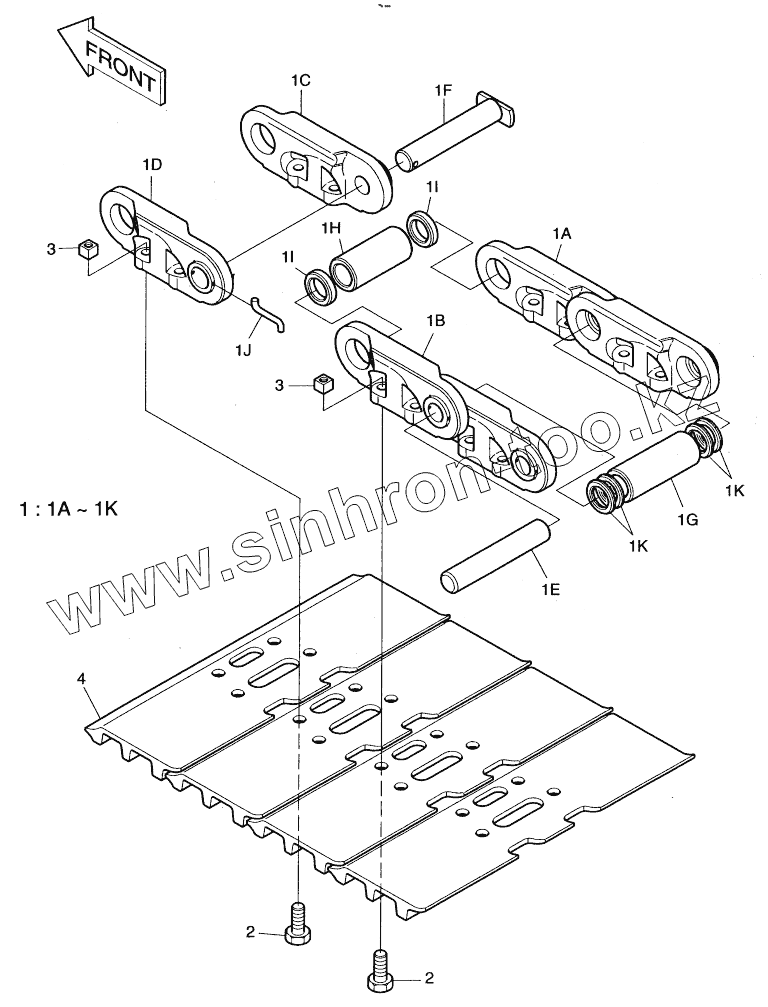

1
1А
1А
1В
1С
1D
1Е
1F
1G
1Н
1I
1I
1J
1К
1К
1К
2
2
3
3
4
Позиция на иллюстрации
Заводской номер детали
Название детали
2272-6162D5
2272-6162D5
TRACK SHOE ASSY
1
2272-6143В
TRACK LINK ASSY
1А
2272-6144
LINK
1В
2272-6145
LINK
1С
2272-6135
LINK, MASTER
1D
2272-6136
LINK, MASTER
1Е
2123-6079А
.PIN
1F
2123-6080
PIN, MASTER
1G
2110-6065В
BUSHING
1Н
2110-6066А
BUSHING, MASTER
1I
2271-6018
COLLAR
1J
2123-6081
PIN, SMALL
1К
2180-6077А
SEAL, DUST
2
2120-6025
BOLT, TRACK
3
2121-6027
NUT, TRACK
4
2273-6058D1
SHOE, TRACK
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
