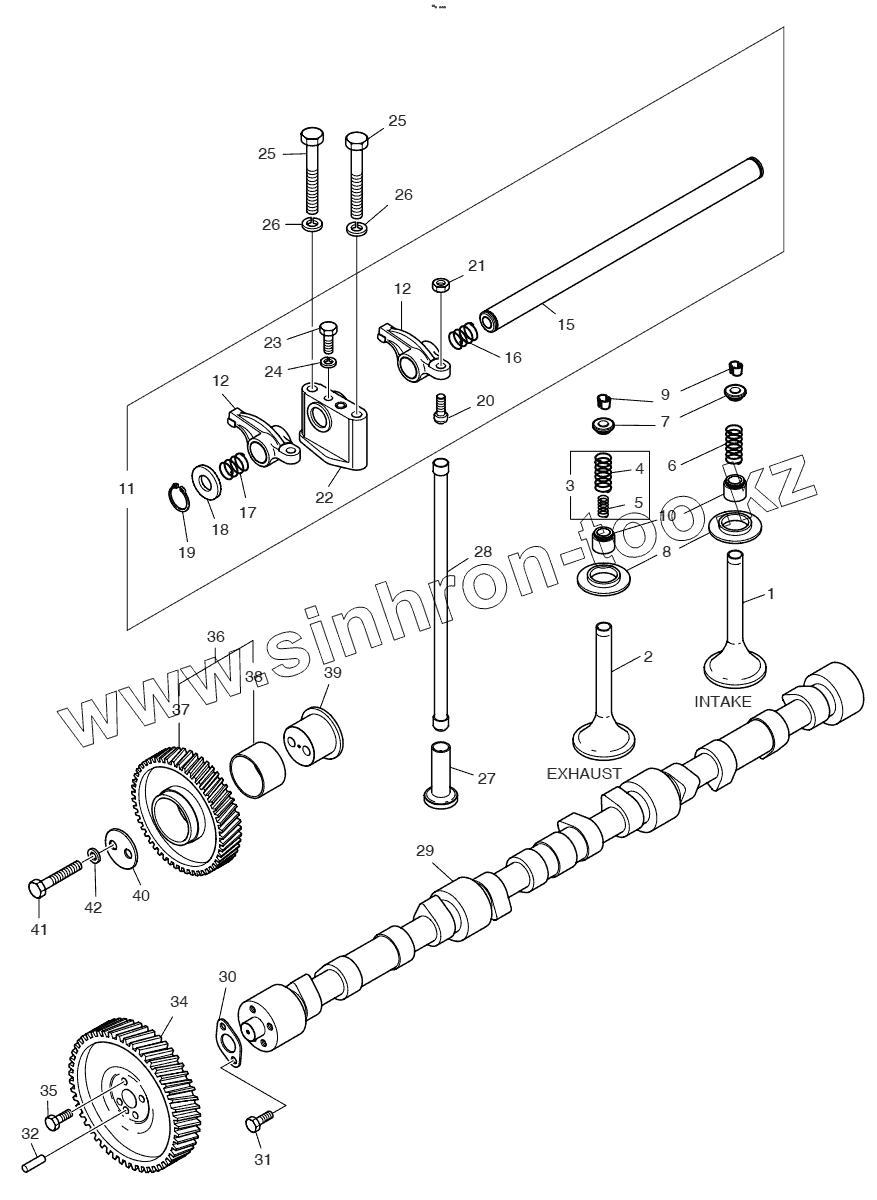

Каталог запасных частей к технике: Doosan S500LC-V. TIMING SYSTEM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
5
5
6
7
8
9
10
11
11
12
12
15
16
17
18
19
20
20
21
22
23
24
25
25
26
26
27
28
29
29
29
29
30
31
32
34
35
36
37
38
39
40
41
42
Позиция на иллюстрации Заводской номер детали Название детали
1 65.04101-0050A VALVE, INTAKE
2 65.04101-0044 VALVE, EXHAUST
3 65.04102-6004A SPRING VALVE ASSY
3 65.04102-6004 SPRING VALVE ASSY
4 65.04102-0066 SPRING, VALVE
5 65.04102-0002 SPRING, VALVE
5 65.04102-0002A SPRING, VALVE
6 65.04102-0066 SPRING, VALVE
7 65.04103-0014 RETAINER, VALVE SPRING
8 65.04103-0078 SEAT, VALVE SPRING
9 65.04104-0007 COTTER, VALVE
10 65.04902-0010 SEAL, VALVE STEM
11 65.04200-6027D R/ARM & SHAFT ASSY
11 65.04200-6027C R/ARM & SHAFT ASSY
12 65.04201-5014E ROCKER ARM ASSY
15 65.04203-5010 SHAFT, ROCKER ARM
16 65.97601-0104 SPRING, ROCKER ARM SHAFT
17 65.97601-0053 SPRING, CONICAL
18 65.90710-0039 WASHER, ROCKER ARM
19 06.29010-0120 Ring
20 65.04205-0003 BOLT, ADJUSTING
20 65.04205-0003A BOLT, ADJUSTING
21 65.90501-0003 NUT
22 65.04202-0014A BRACKET, ROCKER ARM
23 06.01283-7112 Bolt
24 06.15010-2311 Washer
25 06.01013-9221 BOLT
26 06.16731-2108 Washer
27 65.04301-0006 TAPPET
28 65.04302-5011 ROD, PUSH
29 65.04401-0489A CAM, SHAFT
29 65.04401-0489B CAM, SHAFT
29 65.04401-0489C CAM, SHAFT
29 65.04401-0489D CAM, SHAFT
30 65.98112-0038 FLANGE
31 65.90001-6003 BOLT
32 06.22022-1014 PIN, DOWEL
34 65.04501-0007A GEAR, CAMSHAFT
35 06.01914-3119 BOLT ASSY
36 65.04505-5016 IDLE GEAR ASSY
37 65.04505-0033 GEAR;IDLE
38 65.04507-0004 .BUSH;IDLE GEAR
39 65.04506-0033 PIN, IDLE GEAR
40 65.90720-0018 WASHER, THRUST
41 06.01015-9220 BOLT, HEX
42 06.16731-2108 Washer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
