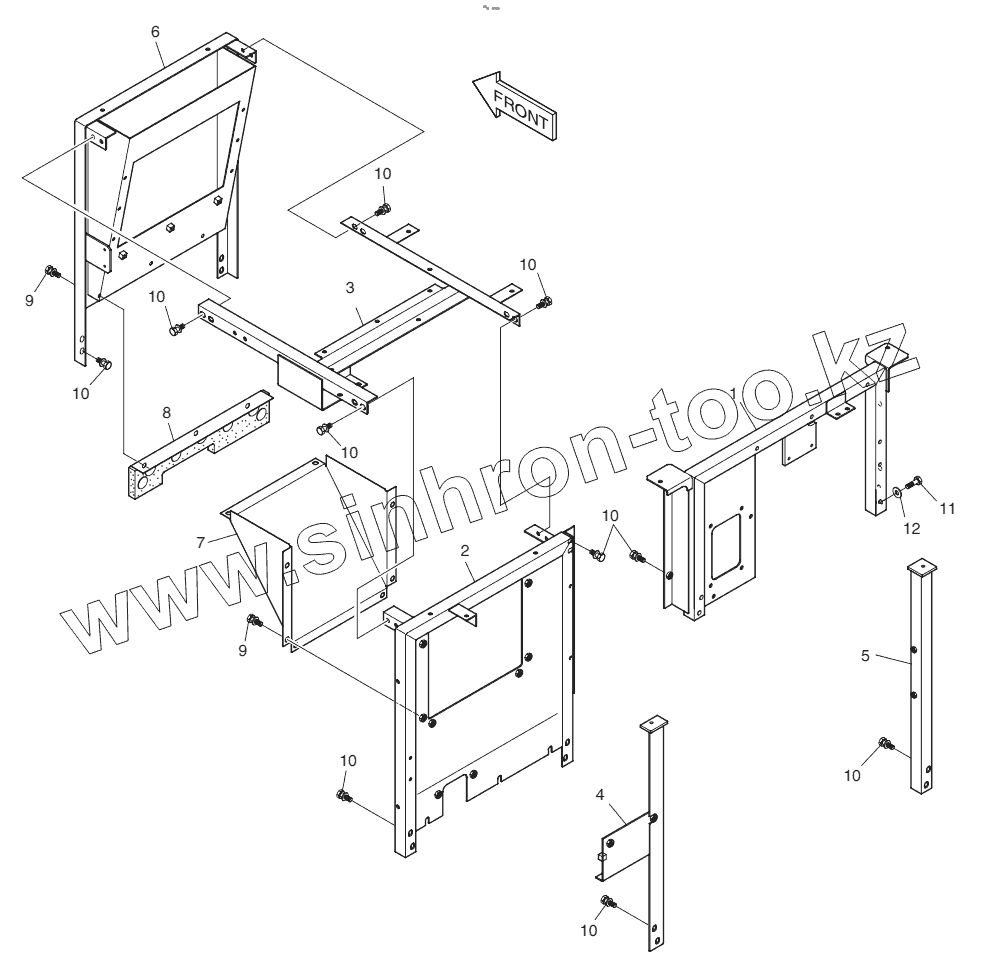

Позиция на иллюстрации
Заводской номер детали
Название детали
195-01568
195-01568
SUPPORT ASSY
1
195-01578С
SUPPORT
2
195-01579Е
SUPPORT
3
195-01580С
SUPPORT
4
195-01461В
SUPPORT
5
195-01643А
SUPPORT
6
195-01457В
SUPPORT
7
621-01690А
COVER
8
621-01587В
COVER
9
2120-2196D6
Bolt
10
2120-2196D9
BOLT;SET M12X1.75X25
11
S0560553
BOLT M12X1.75X40
12
2114-1154
WASHER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
