Позиция на иллюстрации
Заводской номер детали
Название детали
400-00697
400-00697

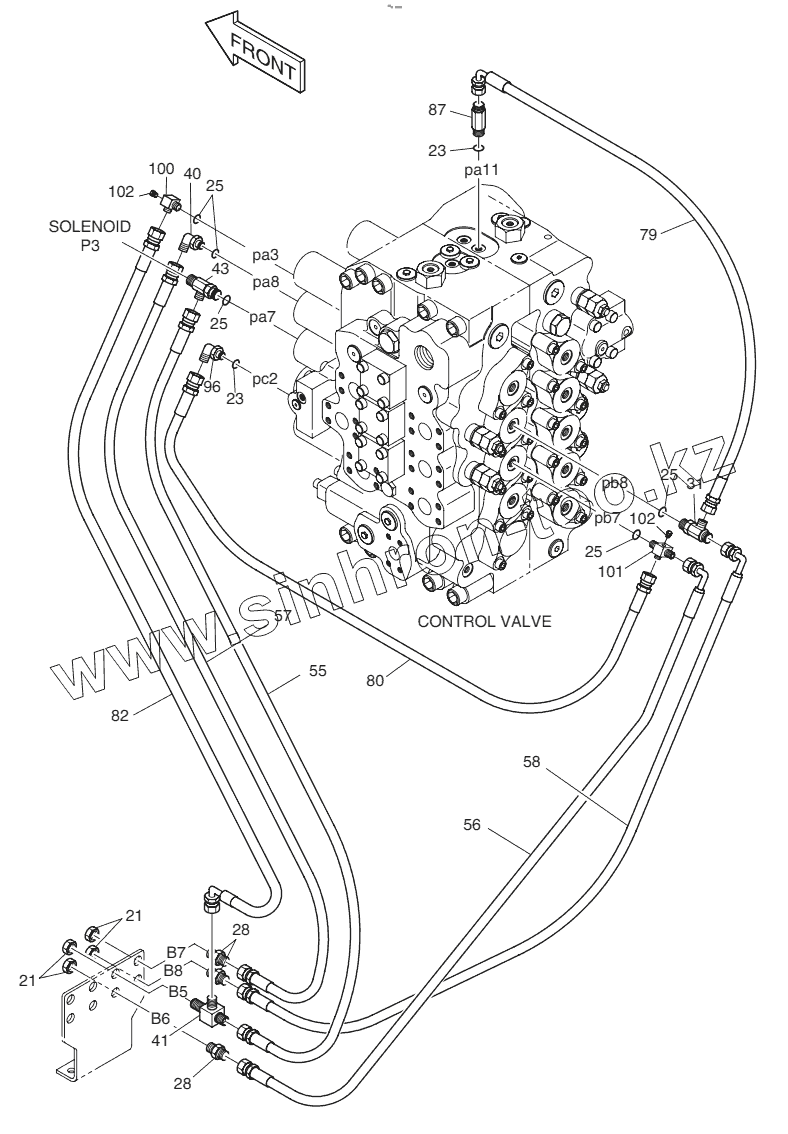

PILOT PIPING
21
121-00010D1
NUT
23
S8000111
O-RING
25
S8000141
O-RING
28
181-00078D1
ADAPTER 2PF3/8
31
2181-1951D6
TEE
40
2181-1702D5
ELBOW PF3/8-PF3/8
41
181-00086D2
TEE 3PF3/8
43
2181-1951D16
TEE
55
DS2053737
HOSE PF3/8-1550L
56
2184-1046D291
Hose
57
2184-1045D139
HOSE
58
2184-1046D291
Hose
79
2184-1046D126
HOSE
80
2184-1045D219
HOSE PF3/8-870L
82
DS2055733
HOSE PF3/8-1750L
87
2181-1126D38
Adapter
96
2181-1702D3
ELBOW
100
2181-2590D2
Adapter
101
DS2462001
TEE PFO3/8-2PF3/8
102
2181-2047A
PLUG
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
