Каталог запасных частей к технике: Doosan S500LC-V. OVERLOAD WARNING ASSY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING DRIVING SYSTEM CYLINDER HEAD CYLINDER HEAD COVER TIMING SYSTEM OIL PUMP OIL FILTER OIL COOLER OIL PAN COOLING WATER PIPE WATER PUMP COOLING FAN EXHAUST MANIFOLD INTAKE MANIFOLD TURBO CHARGER NOZZLE & HOLDER INJECTION PIPE INJECTION PUMP INJECTION PUMP DRIVE INJECTION PUMP MOUNTING FUEL PIPE FUEL FILTER ALTERNATOR MOUNTING STARTER PRESSURE GAUGE AIR CONDITIONER ENGINE MOUNTING OVER HAUL GASKET KIT - TOP OVER HAUL GASKET KIT - ALL CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING DRIVING SYSTEM CYLINDER HEAD CYLINDER HEAD COVER TIMING SYSTEM OIL PUMP OIL FILTER OIL COOLER OIL PAN COOLING WATER PIPE COOLING WATER PUMP COOLING FAN EXHAUST MANIFOLD INTAKE MANIFOLD TURBO CHARGER INJECTION NOZZLE INJECTION PIPE INJECTION PUMP INJECTION PUMP DRIVE INJECTION PUMP MOUNTING FUEL PIPE FUEL FILTER ALTERNATOR MOUNTING STARTER PRESSURE GAUGE AIR CONDITIONER ENGINE MOUNTING OVER HAUL GASKET KIT - TOP OVER HAUL GASKET KIT - ALL MAIN FRAME COUNTERWEIGHT - ADDITIONAL ENGINE MOUNTING RADIATOR RESERVE TANK MUFFLER РЎРђРЎ PIPING AIR CLEANER ASSY AIR CLEANER PUMP MOUNTING FUEL PIPING FUEL TANK SWING DEVICE ASSY OIL TANK OIL COOLER PIPING (1) OIL COOLER PIPING (2) OIL COOLER PIPING (3) MAIN PIPING (l) MAIN PIPING (2) MAIN PIPING (3) MAIN PIPING (4) MAIN PIPING (5) MAIN PIPING - ONE & TWO WAY ENGINE CONTROL ASSY PILOT PIPING (1) PILOT PIPING (2) PILOT PIPING (3) PILOT PIPING (4) PILOT PIPING (5) PILOT PIPING (6) PILOT PIPING (7) PILOT PIPING (8) PILOT PIPING - BREAKER CONTROL STAND - L.H. CONTROL STAND - R.H. SEAT & ELECTRIC BOX SEAT MOUNTING SEAT DUCT COVER ASSY HEATER COVER ASSY CABIN MOUNT ASSY CABIN ASSY CABIN (1) CABIN (2) CABIN (3) CABIN (4) CABIN (5) SUPPORT COVER (1) COVER (2) COVER (3) COVER (4) COVER (5) UNDER COVER BAFFLE ACOUSTIC FOAM COVER - NOISE KIT ACOUSTIC FOAM - NOISE KIT LUBRICATION PIPING ELECTRIC BOX ASSY (1) - BOX ELECTRIC BOX ASSY (2) - ELECTRIC PARTS ELECTRIC PARTS (1) - GAUGE & SWITCH PANEL ELECTRIC PARTS (2) - STAND R.H ELECTRIC PARTS (3) - STAND L.H ELECTRIC PARTS (4) - CABIN ELECTRIC PARTS (5) - CABIN LAMP ELECTRIC PARTS (6) - BATTERY ELECTRIC PARTS (7) - ENGINE ALTERNATOR ELECTRIC PARTS (8) - RELATED PARTS ELECTRIC WIRING (1) - BATTERY ELECTRIC WIRING (2) - ENGINE ELECTRIC WIRING (3) - RELATED PARTS AIR CONDITIONER (1) AIR CONDITIONER (2) - AIRCON UNIT HEATER PIPING NOISE FILTER ASSY TRACK FRAME IDLER TRACK SPRING UPPER ROLLER LOWER ROLLER TRACK SHOE ASSY - 600G TRAVEL PIPING JOINT CENTER BOOM - 6.3m ARM - 2.9m BUCKET - 2.55m (72") - SIDE PIN BUCKET - 2.55m (72") - VERTICAL PIN BUCKET - 2.87m3 (80") - SIDE PIN BUCKET - 2.87m3 (80") - VERTICAL PIN BUCKET - 3.2m (88") - SIDE PIN BUCKET - 3.2m3 (88") - VERTICAL PIN BOOM PIPING - 6.3m ARM PIPING - 2.9m LUBRICATION PIPING - 6.3m BOOM LOCK VALVE PIPING - 6.3m BOOM PIPING - 6.3m ONE & TWO WAY ARM PIPING - 2.9m ONE & TWO WAY MAIN PUMP MAIN PUMP - PUMP MAIN PUMP - CONTROL MAIN PUMP - EPPR VALVE SWING MOTOR SWING REDUCTION GEAR Serial No 1001 - 1448 SWING REDUCTION GEAR Serial No 1449 - TRAVEL MOTOR TRAVEL MOTOR - ROTARY GROUP TRAVEL MOTOR - CONTROL BRAKE VALVE PRESSURE CONTROL VALVE VALVE TRAVEL REDUCTION GEAR CONTROL VALVE (1) CONTROL VALVE (2) CONTROL VALVE (3) REMOTE CONTROL VALVE Serial No. 1001 - 1613 REMOTE CONTROL VALVE Serial No. 1614 REMOTE CONTROL VALVE - 3 SWITCH PEDAL VALVE SOLENOID VALVE BREAKER VALVE PILOT VALVE BOOM CYLINDER - R.H BOOM CYLINDER - L.H ARM CYLINDER BUCKET CYLINDER ARM CYLINDER - BOOM 6.3m BOOM CYLINDER(R.H) - LOCK VALVE BOOM CYLINDER(L.H) - LOCK VALVE ARM CYLINDER - LOCK VALVE ARM CYLINDER - LOCK VALVE BUCKET CYLINDER - ARM 6.0m Serial No 1001 - 1253 BUCKET CYLINDER - ARM 6.0m Serial No 1254 - BUCKET CYLINDER - ARM 8.0m ARM CYLINDER - HEAVY DUTY BUCKET CYLINDER - HEAVY DUTY TOOLS SPARE PARTS NAME PLATE - EUROPE NAME PLATE - ENGLISH FUEL FILLER PUMP ASSY 6 - LAMP & BEACON (TELESCOPIC) ROTATING BEACON TRAVEL ALARM ASSY TRAVEL/SWING ALARM ASSY RETURN FILTER PRESS SWITCH ALTERNATOR F.O.G.S GUARD CABIN LOW GUARD SUN VISOR ASSY SUN ROOF ASSY FLOOR PLATE - TILTING OVERLOAD WARNING ASSY JOYSTICK VALVE ASSY - 3 SWITCH TRACK SHOE - 750G Serial No 1001 - 1799 TRACK SHOE - 750G Serial No 1800 - TRACK SHOE - 800G Serial No 1001 - 1799 TRACK SHOE - 800G Serial No 1800 - TRACK SHOE - 900G Serial No 1001 - 1799 TRACK SHOE - 900G Serial No 1800 - BOOM - 7.1m BOOM - 9.0m BOOM - 11.0m ARM - 2.4m ARM - 3.35m ARM - 4.0m ARM - 6.0m ARM - 8.0m BUCKET - 1.58m(48") - SIDE PIN BUCKET - 1.58m(48") - VERTICAL PIN BUCKET - 1.82m(54") - SIDE PIN BUCKET - 1.82m(54") - VERTTCAL PIN BUCKET - 2.07m(60") - SIDE PIN BUCKET - 2.07m(60") - VERTICAL PIN BUCKET - 0.8m3 BUCKET - 1.1m3 BUCKET - 1.2m3 BUCKET - 1.6m3 BUCKET - 1.9m3 BUCKET - 2.1m3 BUCKET - 2.5m3 BUCKET - 1.75m - ROCK BUCKET - 0.96m3 - DITCH CLEANING BUCKET - 1.17m3 - DITCH CLEANING BOOM PIPING - 7.1m Serial No 1001 - 1200 BOOM PIPING - 7.1m Serial No 1201 - BOOM PIPING - 9.0m BOOM PIPING - 11.0m ARM PIPING - 2.4m ARM PIPING - 3.35m ARM PIPING - 4.0m ARM PIPING - 6.0m ARM PIPING - 8.0m LUBRICATION PIPING - 7.1m BOOM Serial No 1001 - 1200 LUBRICATION PIPING - 7.1m BOOM Serial No 1201 - LUBRICATION PIPING - 9.0m BOOM LUBRICATION PIPING - 11.0m BOOM LOCK VALVE PIPING - 7.1m BOOM LOCK VALVE PIPING - 9.0m BOOM LOCK VALVE PIPING - 11.0m BOOM BOOM PIPING - 7.1m ONE & TWO WAY Serial No 1001 - 1200 BOOM PIPING - 7.1m ONE & TWO WAY Serial No 1201 - BOOM PIPING - 9.0m ONE & TWO WAY ARM PIPING - 2.4m ONE & TWO WAY ARM PIPING - 3.35m ONE & TWO WAY ARM PIPING - 6.0m ONE & TWO WAY NAME PLATE - ONE & TWO WAY CABIN ASSY - WINDOW GUARD ROCK BUCKET - 1.75m3 BUCKET - 2.5m3 - WITHOUT TOOTH DOUBLE FUEL FILTER ASSY BOOM - 7.1m - HEAVY DUTY BOOM PIPING - HEAVY DUTY ARM - 3.35m - HEAVY DUTY ARM PIPING - HEAVY DUTY ROCK BUCKET ASSY 1.48m3 - HEAVY DUTY Serial No 1001 - 1530 ROCK BUCKET ASSY 1.48m3 - HEAVY DUTY GODET Serial No 1531 - LUBRICATION PIPING - H.D ARM 3.35m Serial No 1001 - 1462 LUBRICATION PIPING - H.D ARM 3.35m Serial No 1463 - UNDER COVER - HEAVY DUTY TRACK FRAME - HEAVY DUTY TRACK SHOE ASSY - 600G - HEAVY DUTY Serial No 1001 - 1394 TRACK SHOE ASSY - 600G - HEAVY DUTY Serial No 1395 - 1799 TRACK SHOE ASSY - 600G - HEAVY DUTY Serial No 1800 - CABIN GUARD - HEAVY DUTY

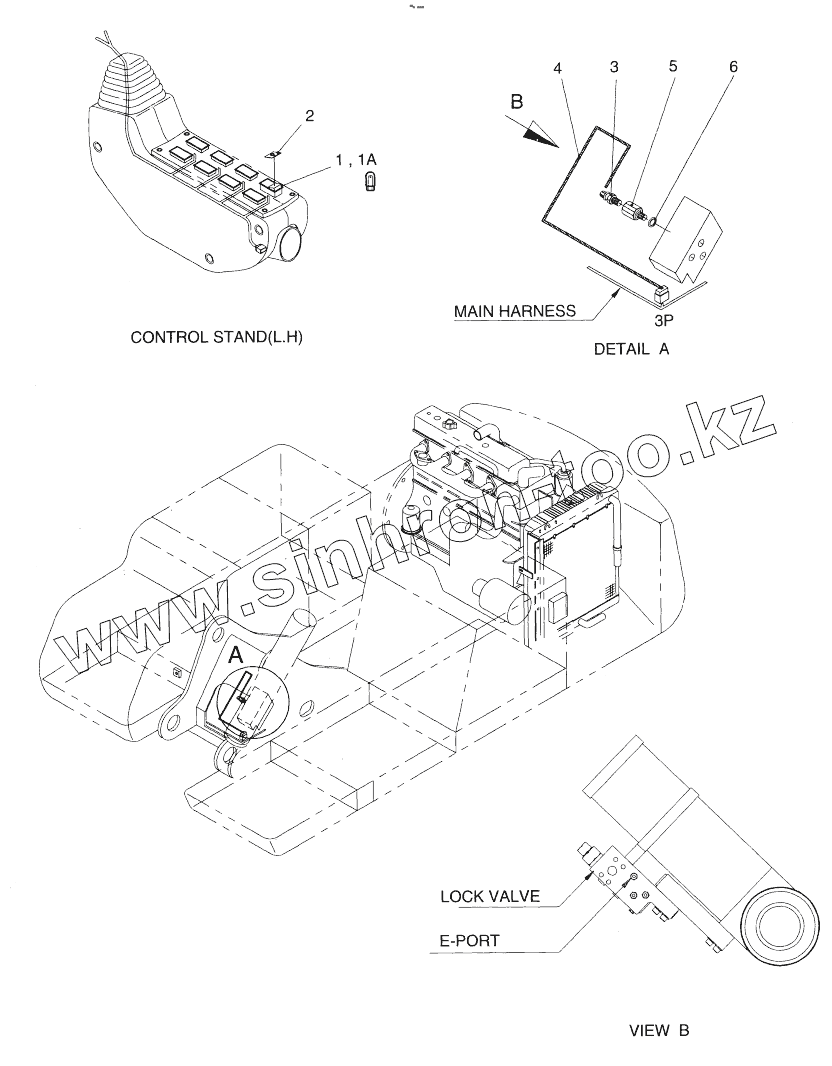

1

1А

2

3

4

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
500-00156	500-00156		OVERLOAD WARNING DEVICE
1	2549-9098		SWITCH;OVERLOAD WARNING
1А	К9000353		LAMP, PILOT
2	2190-2036D25		INSERT;OVERLOAD WARNING
3	2547-9045		SENSOR;PRESSURE
4	530-00269		Harness, overload warning
5	2181-2439А		REDUCER
6	S8000111		O-RING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
