Каталог запасных частей к технике: Doosan S500LC-V. MAIN PUMP - CONTROL
1
1A
1B
1C
1D
1E
1F
1G
2
2
2A
2A
2Aa
2Ab
2Ac
2Ad
2Ae
2Af
2Af
2Ag
2Ah
2Ai
2Aj
2Ak
2Al
2Am
2An
2Ao
2Ap
2Aq
2Ar
2As
2At
2B
2C
2D
2E
2F
2G
2H
2I
2J
2K
2L
2M
2N
2O
2Р
2Q
2R
2S
2U
10
11
12
13
14
15
16
17
26
37
42
43
44

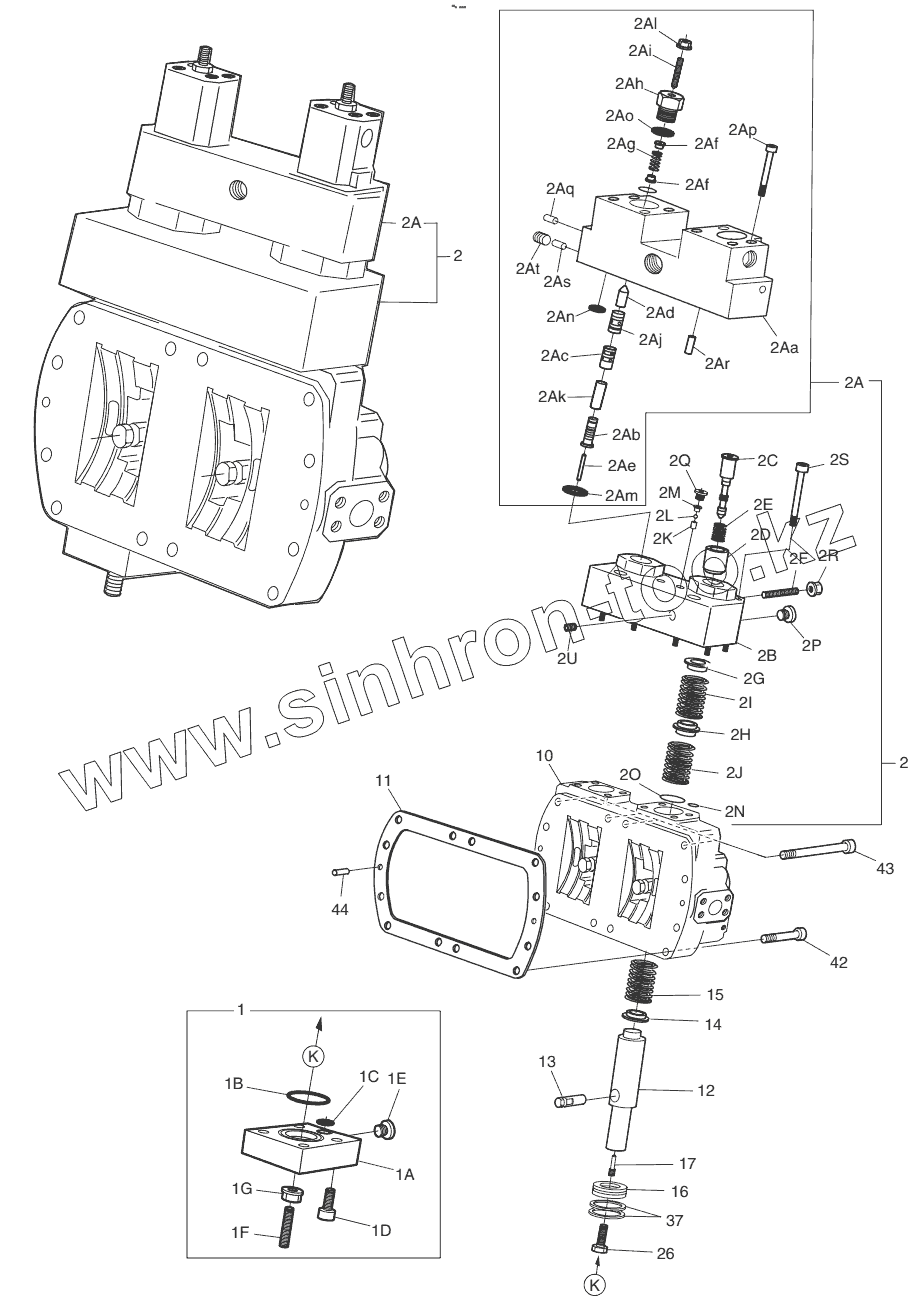

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 09610429 | COVER | |
| 1A | 09651448 | COVER | |
| 1B | 09150108 | O-RING | |
| 1C | 09085709 | O-RING | |
| 1D | 09083116 | SCREW, SOCKET-HEAD | |
| 1E | 09151692 | SCREW | |
| 1F | 09086120 | Pin, threaded | |
| 1G | 09152459 | Nut, seal lock | |
| 2 | 02057202 | CONTROL MODULE | |
| 2A | 02057201 | CONTROL MODULE | |
| 2Aa | 02057192 | HOUSING, CONTROL | |
| 2Ab | 02054797 | PISTON;CONTROL | |
| 2Ac | 02054798 | BUSH;CONTROL | |
| 2Ad | 09436378 | PISTON, POSITIONING | |
| 2Ae | 02057199 | PIN | |
| 2Af | 09430649 | COLLAR;SPRING | |
| 2Ag | 09650259 | SPRING;PRESSURE | |
| 2Ah | 09436380 | SCREW;LOCKING | |
| 2Ai | 09420991 | PIN;THREADED | |
| 2Aj | 02054799 | PISTON, CONTROL | |
| 2Ak | 02054800 | BUSH, CONTROL | |
| 2Al | 09152425 | NUT;SEAL LOCK | |
| 2Am | 09086730 | O-RING | |
| 2An | 02600655 | O-RING | |
| 2Ao | 09083757 | O-RING | |
| 2Ap | 09083027 | SCREW;SOCKET-HEAD | |
| 2Aq | 09831318 | PIN;DOUBLE BREAK-OFF | |
| 2Ar | 09084149 | PIN;CYLINDER | |
| 2As | 09831319 | PIN;DOUBLE BREAK-OFF | |
| 2At | 02600705 | PLUG | |
| 2B | 02030917 | HOUSING, CONTROL | |
| 2C | 09449944 | PISTON, CONTROL | |
| 2D | 09449344 | BUSH, SPRING | |
| 2E | 09651102 | SPRING, PRESSURE | |
| 2F | 09420992 | PIN, THREADED | |
| 2G | 09432513 | COLLAR, SPRING | |
| 2H | 09432511 | COLLAR, SPRING | |
| 2I | 02031945 | SPRING, PRESSURE | |
| 2J | 02031946 | SPRING, PRESSURE | |
| 2K | 09650250 | BUSH | |
| 2L | 09083258 | BALL | |
| 2M | 09650251 | SCREW, VALVE | |
| 2N | 02600655 | O-RING | |
| 2O | 09151810 | O-RING | |
| 2Р | 09153364 | SCREW;LOCKING | |
| 2Q | 09153816 | SCREW, LOCKING | |
| 2R | 09152425 | NUT;SEAL LOCK | |
| 2S | 09083051 | SCREW, SOCKET-HEAD | |
| 2U | 09153338 | SCREW, LOCKING | |
| 10 | 02030556 | HOUSING, CONTROL | |
| 11 | 02031863 | GASKET | |
| 12 | 09921021 | PISTON, POSITIONING | |
| 13 | 09425458 | TRUNNION, POSITIONING | |
| 14 | 02057263 | COLLAR, SPRING | |
| 15 | 09432558 | SPRING, PRESSURE | |
| 16 | 09651472 | PISTON | |
| 17 | 09445016 | Pin, threaded | |
| 26 | 09083716 | SCREW, HEX | |
| 37 | 09156647 | RING, SQUARE | |
| 42 | 09083136 | SCREW | |
| 43 | 09083142 | BOLT | |
| 44 | 09084186 | PIN, CYLINDER |
