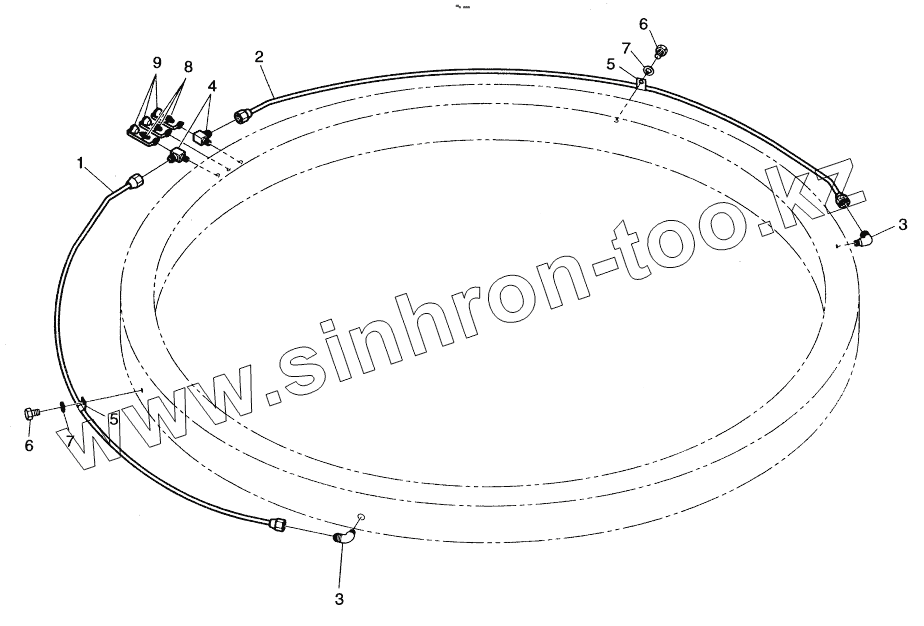

LUBRICATION PIPING
1
140-00875
PIPE
2
140-00876
PIPE
3
2181-1925
ELBOW
4
2181-2527
TEE PT1/8
5
2124-1027D19
CLIP,PIPE
6
S0508453
BOLT M8X1.25X12
7
S5102503
WASHER;SPRING
8
S6710041
NIPPLE;GREASE
9
160-00020
CAP;GREASE NIPPLE
