Каталог запасных частей к технике: Doosan S500LC-V. LOCK VALVE PIPING - 6.3m
1
1
2
2
3
3
4
4
5
5
5A
5A
6
6A
7
8
9
10
11
12
13
13
13
13
14
15
17
19
19
20
20
21
21
22
22
22
23
23
24
24
25
25
26
27
27
27
27
27
28
28
29
29
30
30
31
32
32
33
34
34
35
35
35
35
36
36
37
37
38
38
39
39
39
39
39
39
40
42
42
43
43
44
44
45
46
46
47
47
48
48
49
49
49
49
50
50
50
50
51
51
51
51
52
52
53
54
55

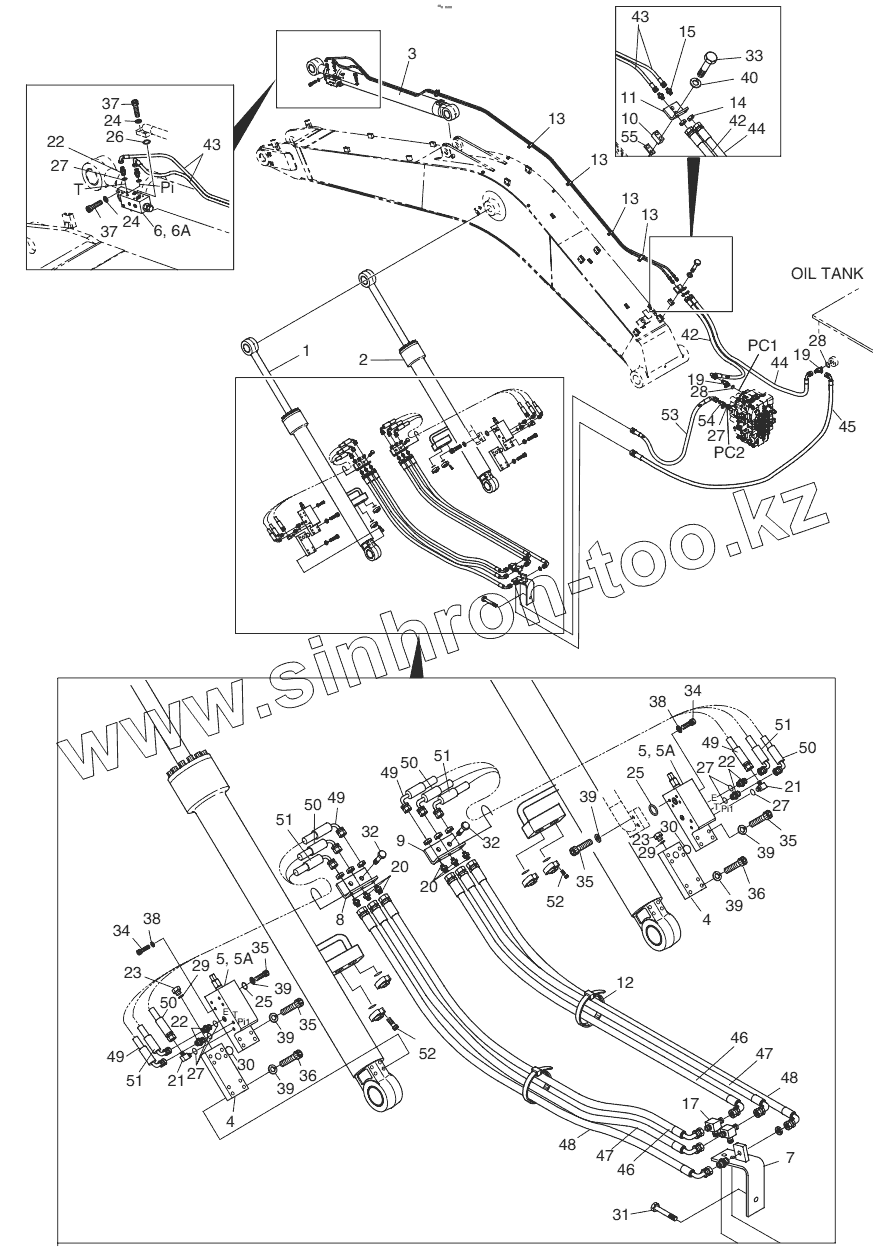

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 400-00996A | 400-00996A | LOCK VALVE PIPING-6.3m | |
| 1 | 440-00318 | CYLINDER, BOOM (L.H) | |
| 1 | 440-00318A | CYLINDER, BOOM (L.H) | |
| 2 | 440-00319 | CYLINDER, BOOM (R.H) | |
| 2 | 440-00319A | CYLINDER, BOOM (R.H) | |
| 3 | 440-00089 | CYLINDER, ARM | |
| 3 | 440-00089A | CYLINDER, ARM | |
| 4 | 423-00030 | VALVE, BLOCK | |
| 5 | 420-00004A | Valve, lock | |
| 5A | K9000999 | Seal kit | |
| 6 | 420-00021A | VALVE,LOCK | |
| 6A | K9001000 | SEAL KIT | |
| 7 | 195-01964 | BRACKET, LOCK VALVE | |
| 8 | 195-00335 | BRACKET | |
| 9 | 195-00329 | BRACKET | |
| 10 | 2114-1180D20 | SHIM | |
| 11 | 195-00163 | BRACKET | |
| 12 | 2124-1084D2 | CLIP;BAND | |
| 13 | 124-00199D5 | Clip | |
| 14 | 121-00010D1 | NUT | |
| 15 | 181-00078D5 | ADAPTER PF1/4-PF3/8 | |
| 17 | 181-00008 | TEE | |
| 19 | 2181-1951D16 | TEE | |
| 20 | 181-00020 | ADAPTER PF1/4-PF1/4 | |
| 21 | 2181-1702D4 | ELBOW | |
| 22 | 2181-1126D14 | ADAPTER;S PFO-PF1/4 | |
| 23 | 2181-1890D9 | PLUG | |
| 24 | S5110803 | WASHER | |
| 25 | S8000341 | O-ring | |
| 26 | S8000401 | O-RING | |
| 27 | S8000111 | O-RING | |
| 28 | S8000141 | O-RING | |
| 29 | S8000291 | O-RING | |
| 30 | 2180-1026D19 | O-RING | |
| 31 | S0566666 | BOLT M16X2.0X120 | |
| 32 | S0515353 | BOLT M12X1.75X35 | |
| 33 | S0563366 | BOLT | |
| 34 | S0515053 | BOLT M12X1.75X25 | |
| 35 | S2215766 | Bolt | |
| 36 | S2215966 | BOLT, SOCKET | |
| 37 | S2218966 | BOLT | |
| 38 | S5102703 | WASHER;SPRING M10 | |
| 39 | S5110703 | Washer | |
| 40 | S5102803 | Washer | |
| 42 | DS2055733 | HOSE PF3/8-1750L | |
| 43 | 2184-1046D259 | HOSE PF1/4-6000L | |
| 44 | 2184-1046D238 | Hose | |
| 45 | 2184-1046D226 | HOSE PF3/8-2900L | |
| 46 | 2184-1060D45 | HOSE PF1/4-1000L | |
| 47 | 2184-1060D48 | Hose | |
| 48 | 2184-1060D221 | HOSE PF1/4-1100L | |
| 49 | 2184-1061D335 | Hose | |
| 50 | 2184-1046D35 | Hose | |
| 51 | 2184-1061D336 | HOSE PF1/4-580L | |
| 52 | S2215666 | BOLT, SOCKET | |
| 53 | 2184-1046D227 | Hose | |
| 54 | 2181-1951D20 | TEE | |
| 55 | 2114-1180D15 | SHIM |
