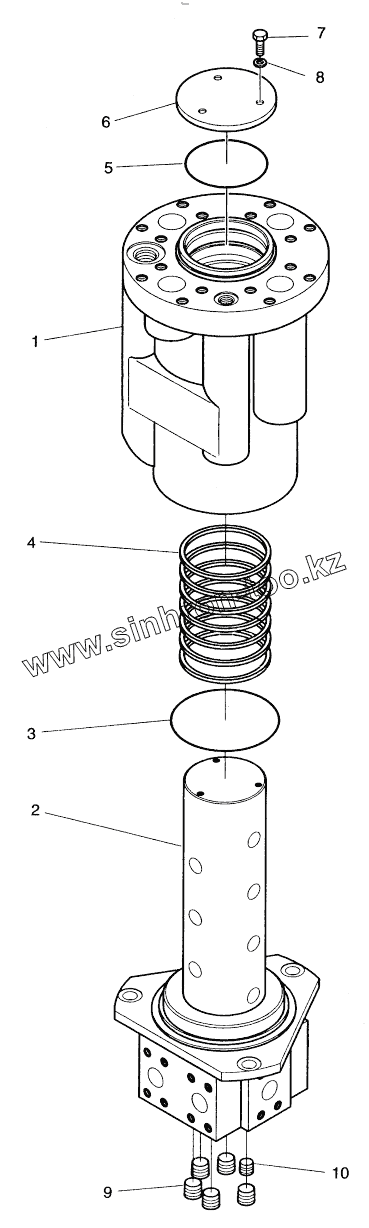

2480-9405ВКТ
1
2
3
4
5
6
7
8
9
10
Позиция на иллюстрации
Заводской номер детали
Название детали
2480-9405В
2480-9405В
JOINT, CENTER
2480-9405ВКТ
2480-9405ВКТ
SEAL KIT
1
03С271-2
BODY
2
03С272-4
SPINDLE
3
Е6301581
O-RiNG
4
Е5430420
SEAL.SLIPPER
5
Е6490049
O-RING
6
03С273-1
COVER
7
Е0020335
BOLT, HEXM8X1.25X16
8
ЕЗ110092
WASHER, SPRING
9
Е1500050
PLUG PT3/4
10
Е1500030
PLUG PT3/8
