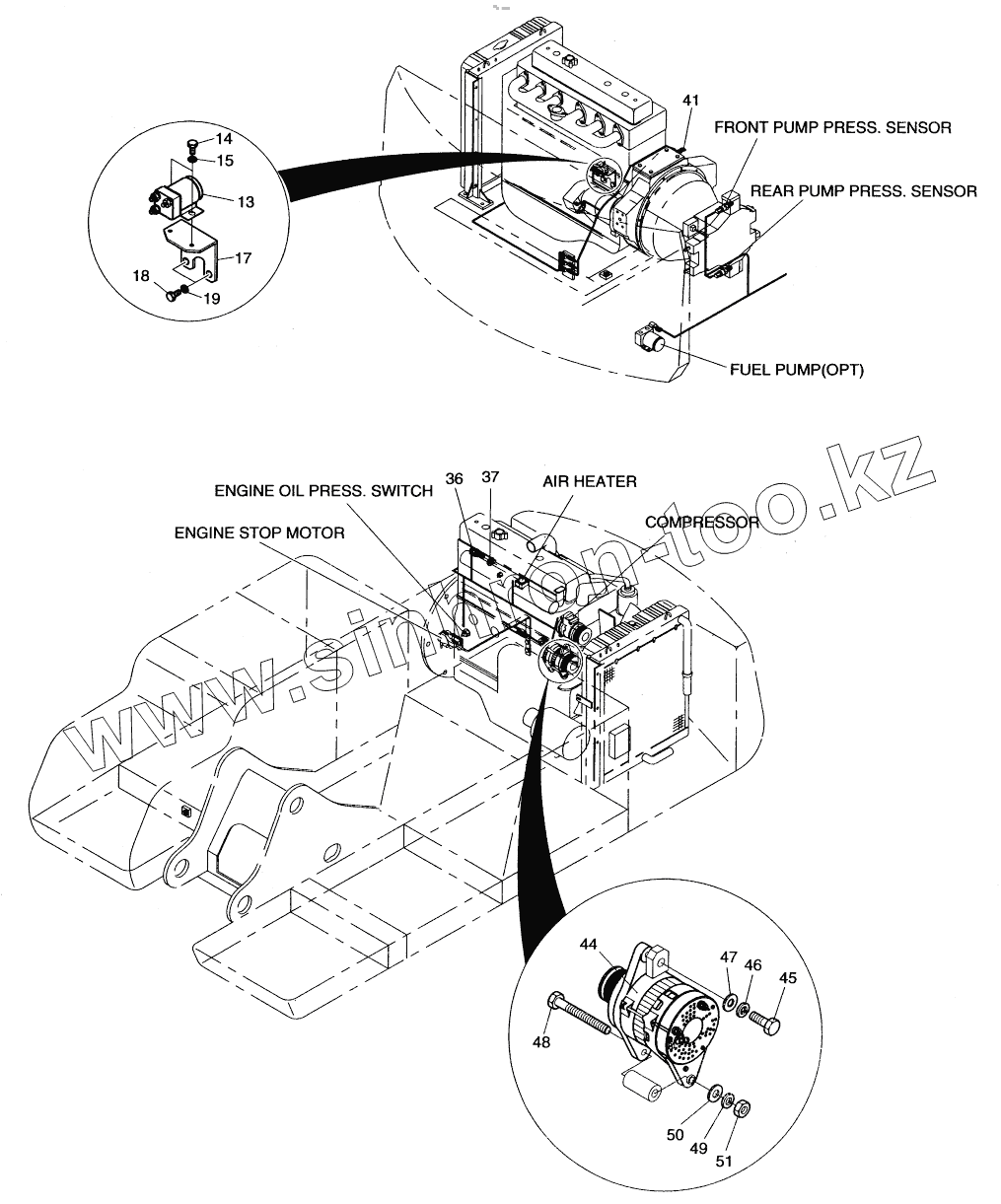

Позиция на иллюстрации
Заводской номер детали
Название детали
500-00125
500-00125
ELECTRIC PARTS (6)
13
544-00007
RELAY;PREHEAT
14
S0504453
BOLT M6X1.0X12
15
S5102303
WASHER;SPRING M6
17
4197-1954
BRACKET, RELAY
18
S0686151
BOLT
19
S5102703
WASHER;SPRING M10
36
2547-9038В
SENSOR, WATER TEMP
37
S8180251
PACKING M16/D22
41
2547-1015
SENSOR;ENGINE SPEED
44
2502-9009
Alternator
45
S0786653
Bolt
46
S5102703
WASHER;SPRING M10
47
2114-1058D54
WASHER
48
S0562653
BOLT M12X1.75X160
49
S5102703
WASHER;SPRING M10
50
S5010713
WASHER;PLAIN
51
S4012733
NUT M12
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
