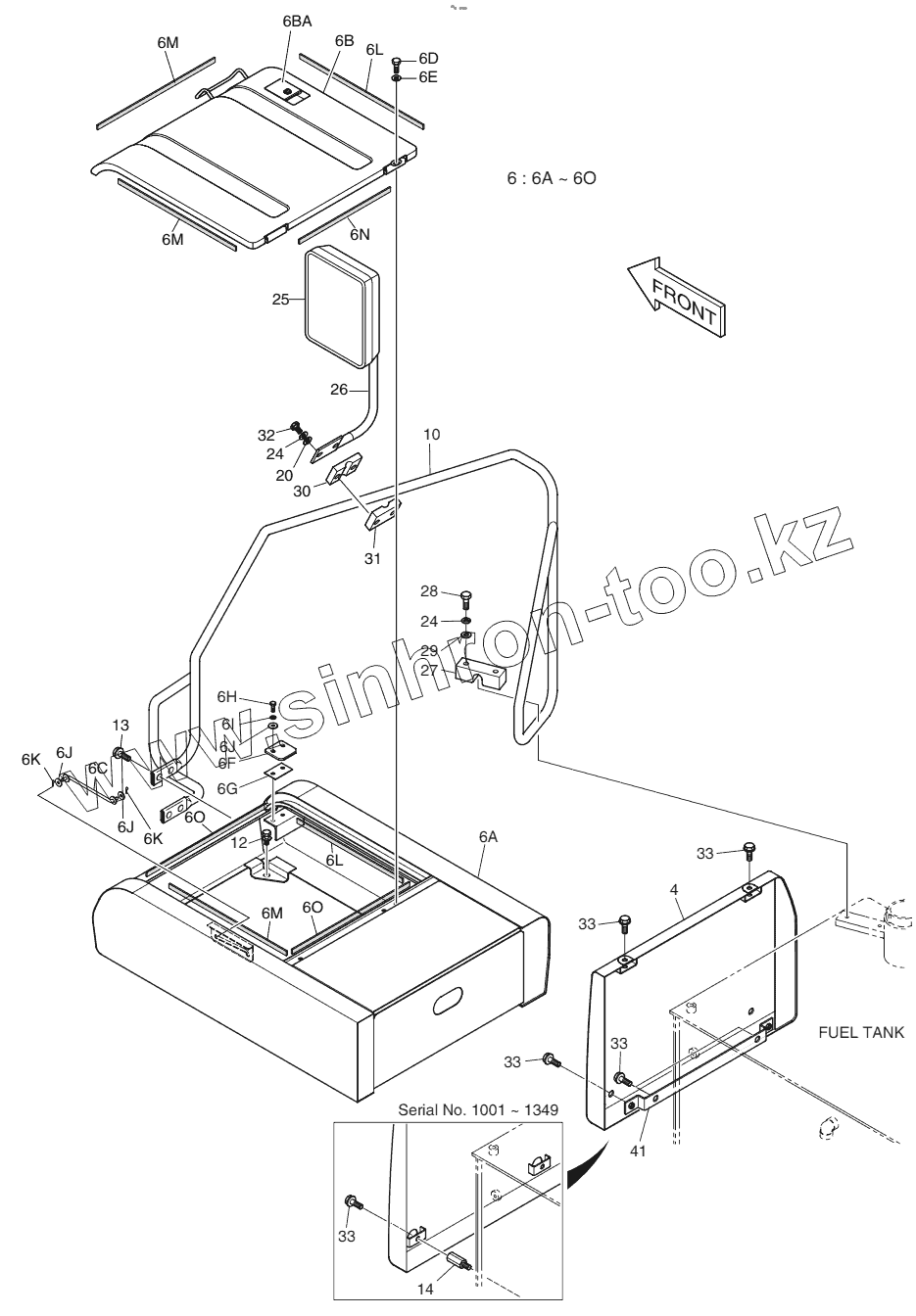

Каталог запасных частей к технике: Doosan S500LC-V. COVER (3)
621-01613
4
6
6
6
6
6
6A
6A
6B
6B
6B
6B
6B
6BA
6BA
6BA
6BA
6C
6D
6E
6F
6G
6H
6I
6J
6J
6J
6K
6K
6L
6L
6M
6M
6M
6N
6O
6O
6O
10
10
12
13
14
20
24
24
25
25
25
26
27
28
29
30
31
32
33
33
33
33
33
33
33
33
33
33
33
33
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 621-01613 | 621-01613 | COVER ASSY | |
| 4 | 621-01927A | Cover, fuel tank | |
| 6 | 621-01975A | BATTERY COVER ASSY | |
| 6 | 621-01975B | BATTERY COVER ASSY | |
| 6 | 621-01975C | BATTERY COVER ASSY | |
| 6 | 621-01975E | BATTERY COVER ASSY | |
| 6 | 621-01975G | BATTERY COVER ASSY | |
| 6A | 621-01979A | BATTERY COVER | |
| 6B | 621-01693A | COVER | |
| 6B | 621-01693B | COVER | |
| 6B | 621-01693C | COVER | |
| 6B | 621-01693E | COVER | |
| 6B | 621-01693G | COVER | |
| 6BA | 125-00034 | LOCK | |
| 6BA | 125-00082 | LOCK | |
| 6BA | 125-00082A | LOCK | |
| 6BA | K1006422 | LOCK | |
| 6C | 2145-1243 | STAY | |
| 6D | S0512053 | BOLT M10X1.5X25 | |
| 6E | S5010613 | WASHER;PLAIN | |
| 6F | 2621-3003B | PLATE | |
| 6G | 2114-1727B | Shim | |
| 6H | S0555753 | BOLT M8X1.25X25 | |
| 6I | S5010513 | WASHER;PLAIN M8 | |
| 6J | 2114-1058D29 | WASHER | |
| 6K | 2705-9002 | PIN;LOCK | |
| 6L | - | Frame assy | |
| 6M | - | Frame assy | |
| 6N | - | Frame assy | |
| 6O | - | Frame assy | |
| 10 | 145-00067 | STAY | |
| 10 | 145-00067A | STAY | |
| 12 | 2120-2196D9 | BOLT;SET M12X1.75X25 | |
| 13 | 2120-2196D11 | BOLT;SET | |
| 14 | 120-00280 | BOLT, STUD M10X1.5 | |
| 20 | S5010713 | WASHER;PLAIN | |
| 24 | S5102703 | WASHER;SPRING M10 | |
| 25 | 903-00052 | MIRROR;MAIN | |
| 25 | 2903-9012А | MIRROR | |
| 25 | 903-00068 | MIRROR;MAIN | |
| 26 | 145-00052 | STAY | |
| 27 | 124-00246 | CLAMP | |
| 28 | S0561153 | Bolt | |
| 29 | 2114-1154 | WASHER | |
| 30 | 124-00216 | CLAMP | |
| 31 | 124-00217 | CLAMP | |
| 32 | S0561253 | BOLT M12X1.75X75 | |
| 33 | 2120-2196D5 | BOLT;SET M10X1.5X25 | |
| 33 | 2120-2196D5 | BOLT;SET M10X1.5X25 | |
| 41 | К1003227 | BRACKET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
