2704-13711
2704-13711

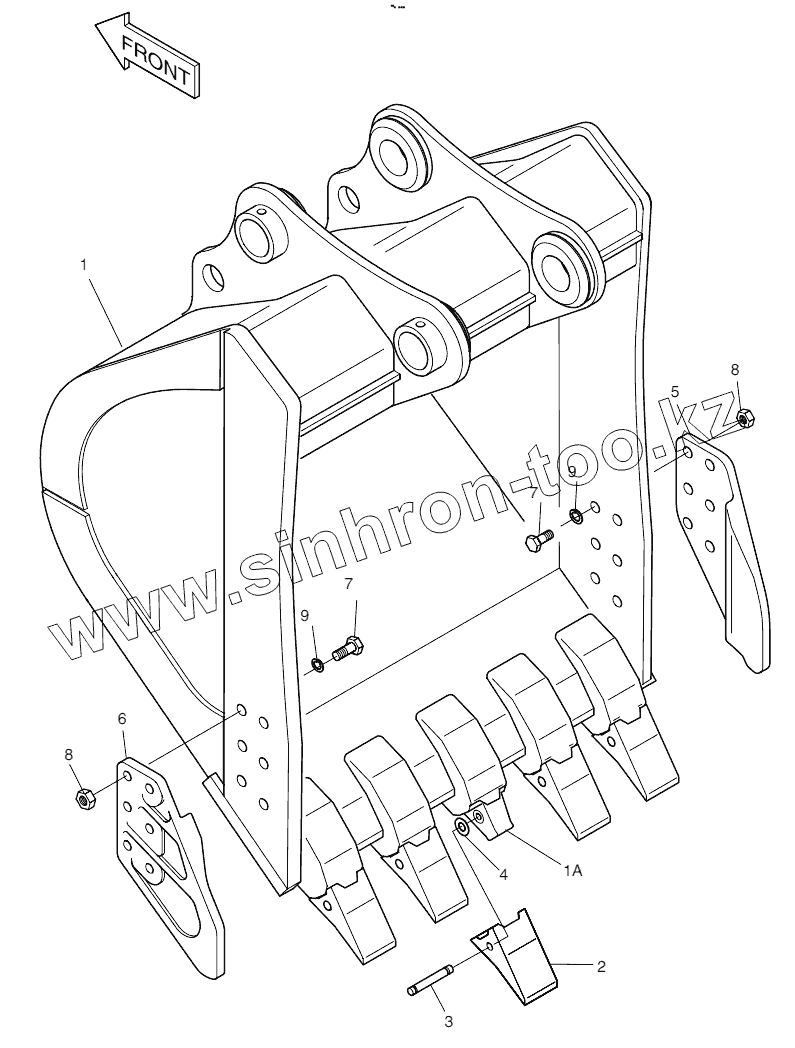

BUCKET ASSY
2704-1371J
2704-1371J
BUCKET ASSY
2704-1371К
2704-1371К
BUCKET ASSY
1
2704-1372Н
BUCKET ASSY
1А
2713-1220
ADAPTER, TOOTH
2
2713-1219
POINT, TOOTH
2
713-00054
POINT, TOOTH
2
713-00054А
POINT, TOOTH
3
2705-1021
PIN, LOCKING
4
2114-1849А
WASHER, LOCKING
5
2713-6034А
CUTTER, SIDE (R.H)
6
2713-6035А
CUTTER, SIDE (L.H)
7
S0574761
BOLT M24X3.0X70
8
S4013333
NUT M24
9
2114-1831
WASHER;HARDEN
9
2114-1831А
WASHER, HARDEN
