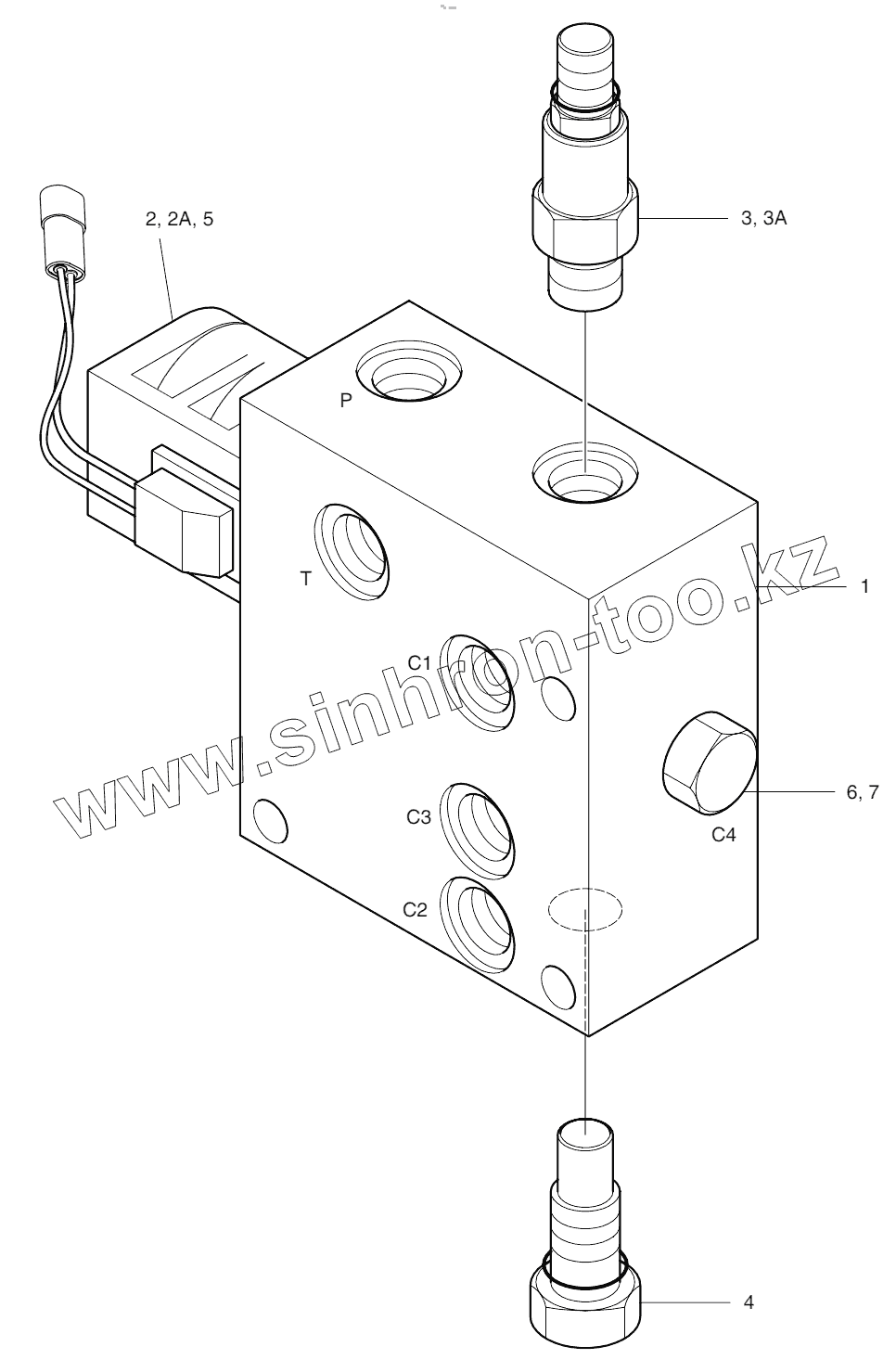

420-00340
420-00340А
420-00340В
1
2
2
2А
2А
3
ЗА
4
5
6
7
Позиция на иллюстрации
Заводской номер детали
Название детали
420-00340
420-00340
VALVE;PACKAGE
420-00340А
420-00340А
VALVE, BREAKER
420-00340В
420-00340В
VALVE, BREAKER
1
BODY
Body
2
DF-S3A-00
SOLENOID SPOOL
2
TF-S3A-00
SOLENOID SPOOL
2А
DF-S3A-S-01
SEAL KIT
2А
TF-S3A-S-01
SEAL KIT
3
PBDB-LNN
VALVE;REDUCING
ЗА
990-011-007
SEAL KIT
4
CSAB-XXN
VALVE;SHUTTLE
5
VDL24
COIL
6
2181-1950D1
PLUG
7
S8000111
O-RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
