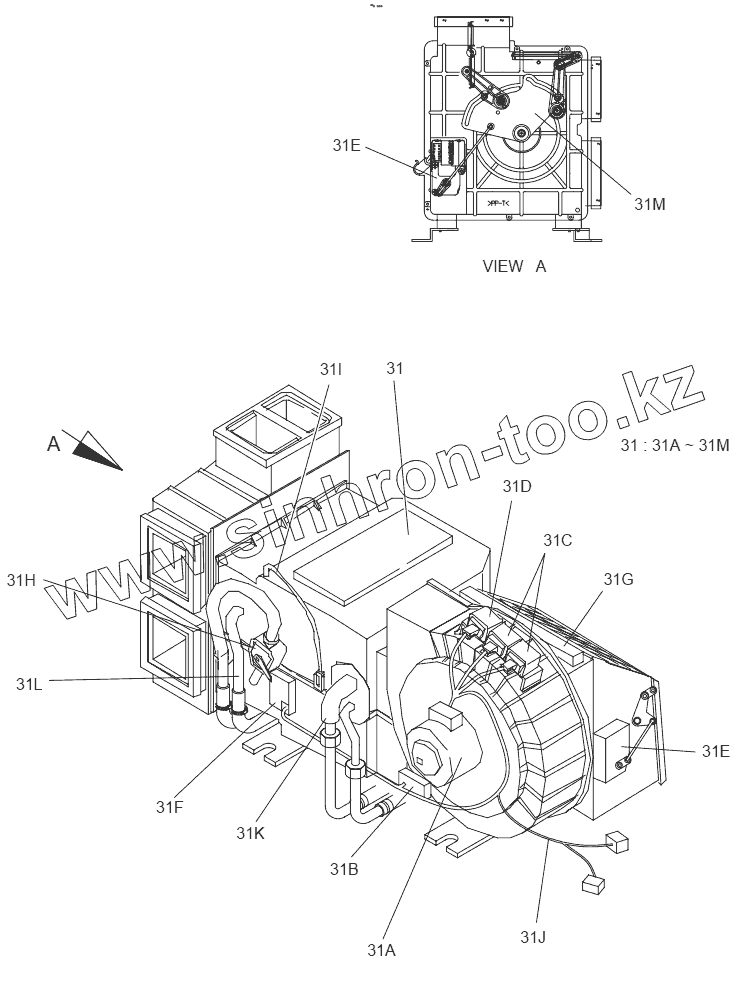

31
31
31
31
31
31
31A
31A
31A
31A
31B
31C
31D
31E
31E
31F
31G
31H
31I
31J
31K
31L
31M
31M
Позиция на иллюстрации
Заводской номер детали
Название детали
920-00069
920-00069
COOLER & HEATER
31
920-00020B
AIRCON UNIT
31
920-00020C
Unit, aircon
31A
2538-6015
MOTOR;BLOWER 24V
31A
K1040112
Motor, blower
31B
545-00003
RESISTOR;BLOWER
31C
2544-6023
RELAY 10A
31D
2544-6024
RELAY 20A
31E
2538-6016
MOTOR;INTAKE 24V
31F
2538-6017
MOTOR;MIX 12V
31G
2471-6050A
FILTER;AIRCON
31H
2426-6048
VALVE;STEM
31I
2547-6033
SENSOR;TEMPERATURE
31J
2530-6005A
HARNESS;AIRCON UNIT
31K
2920-6111
EVAPORATOR
31L
2920-6112
HEATER CORE
31M
133-00161
MAIN LEVER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
