Каталог запасных частей к технике: Doosan S340LC-V. TRAVEL/SWING ALARM ASSY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING DRIVING SYSTEM CYLINDER HEAD CYLINDER HEAD COVER TIMING SYSTEM OIL PUMP OIL FILTER OIL COOLER OIL PAN COOLING WATER PIPE WATER PUMP COOLING FAN EXHAUST MANIFOLD INTAKE MANIFOLD TURBOCHARGER NOZZLE & HOLDER INJECTION PIPE INJECTION PIPE INJECTION PUMP DRIVE INJECTION PUMP MOUNTING FUEL PIPE FUEL FILTER ALTERNATOR STARTER PRESSURE GAUGE AIR CONDITIONER ENGINE MOUNTING OVER HAUL GASKET KIT - TOP OVER HAUL GASKET KIT - ALL MAIN FRAME ENGINE MOUNTING RADIATOR RESERVE TANK MUFFLER CAC PIPING AIR CLEANER ASSY AIR CLEANER PUMP MOUNTING FUEL PIPING FUEL TANK SWING DEVICE OIL TANK OIL COOLER PIPING OIL COOLER PIPING MAIN PIPING MAIN PIPING MAIN PIPING MAIN PIPING MAIN PIPING ENGINE CONTROL PILOT PIPING PILOT PIPING PILOT PIPING PILOT PIPING PILOT PIPING PILOT PIPING PILOT PIPING PILOT PIPING CONTROL STAND L.H. CONTROL STAND R.H. SEAT AND ELECTRIC BOX COVER SEAT MOUNTING SEAT SEAT MOUNTING SEAT SEAT DUCT COVER HEATER COVER CABIN MOUNT ASSY CABIN ASSY CABIN CABIN CABIN CABIN CABIN SUPPORT COVER COVER COVER COVER COVER UNDER COVER BAFFLE ACOUSTIC FOAM ASSY LUBRICATION PIPING ELECTRIC BOX ASSY - BOX ELECTRIC BOX ASSY - ELECTRIC PARTS ELECTRIC PARTS - GAUGE AND SWITCH PANEL ELECTRIC PARTS - STAND (R.H) ELECTRIC PARTS - STAND (L.H) ELECTRIC PARTS - CABIN ELECTRIC PARTS - BATTERY ELECTRIC PARTS - ENGINE ALTERNATOR ELECTRIC PARTS - RELATED PARTS ELECTRIC WIRING - BATTERY ELECTRIC WIRING - ENGINE ELECTRIC WIRING - RELATED PARTS AIR CONDITIONER AIR CONDITIONER AIRCON UNIT HEATER PIPIING TRACK FRAME - TRACK WIDTH 3280mm TRACK FRAME - TRACK WIDTH 3000mm OPTION TRAVEL DEVICE IDLER TRACK SPRING - TRACK WIDTH 3280mm TRACK SPRING - TRACK WIDTH 3000mm OPTION UPPER ROLLER LOWER ROLLER TRACK SHOE ASSY - 600G CENTER JOINT TRAVEL PIPING COVER TRAVEL PIPING - TRACK WIDTH 3280mm TRAVEL PIPING - TRACK WIDTH 3000mm OPTION BOOM - 6.5m ARM - 3.2m BUCKET - 1.3m3 BOOM PIPING ARM PIPING FRONT LUBRICATION PIPING MAIN PUMP MAIN PUMP - PUMP MAIN PUMP - CONTROL MAIN PUMP - COVER AND HYD.LINE SWING MOTOR SWING REDUCTION GEAR Serial No. 1001 - 1054 SWING REDUCTION GEAR Serial No. 1055 - TRAVEL MOTOR TRAVEL REDUCTION GEAR CONTROL VALVE CONTROL VALVE CONTROL VALVE REMOTE CONTROL VALVE REMOTE CONTROL VALVE REMOTE CONTROL VALVE - 3 SWITCH PEDAL VALVE SOLENOID VALVE PILOT VALVE BREAKER VALVE BOOM CYLINDER (R.H.) BOOM CYLINDER (L.H.) ARM CYLINDER BUCKET CYLINDER BUCKET CYLINDER - 2.6m ARM BUCKET CYLINDER (L.H) - LOCK VALVE BUCKET CYLINDER (R.H) - LOCK VALVE ARM CYLINDER - LOCK VALVE OPTION VALVE PEDAL VALVE CONTROL VALVE - KVMG270 CONTROL VALVE - KVMG270 CONTROL VALVE - KVMG270 TOOLS SPARE PARTS NAME PLATE - ENGLISH NAME PLATE - (EUROPE) FUEL FILLER PUMP ASSY NOISE FILTER ASSY - EUROPE ACOUSTIC FOAM - EUROPE OPT. COVER - EUROPE OPT. SIDE DOOR ASSY - NOISE KIT FOR EUROPE JOYSTICK VALVE ASSY 3 - SWITCT CABIN LAMP ASSY 6 - LAMP & BEACON (TELESCOPIC) ROTATING BEACON TRAVEL/SWING ALARM ASSY TRAVEL ALARM ASSY RETURN FILTER PRESS SWITCH ALTERNATOR SUN VISOR ASSY SUN ROOF ASSY FLOOR PLATE - TILTING OVERLOAD WARNING ASSY TRACK SHOE - OPT SEALED TRACK SHOE - OPT ARM - 4.0m ARM PIPING - 4.0m ARM - 2.6m ARM PIPING - 2.6m BUCKET - 1.1m3 BUCKET - 1.4m3 BUCKET - 1.6m3 BUCKET - 1.3m3 (HD TYPE) (ESCO) BUCKET - 1.09m3(42") - SIDE PIN BUCKET - 1.29m3(48") - SIDE PIN BUCKET - 1.29m3(48") - VERTICAL PIN BUCKET - 1.48m3 (54") - SIDE PIN BUCKET - 1.48m3 (54") - VERTICAL PIN BUCKET - 1.60m3 (57") - SIDE PIN BUCKET - 1.60m3 (57") - VERTICAL PIN BUCKET - 1.80m3 (63") - SIDE PIN BUCKET - 1.80m3 (63") - VERTICAL PIN MAIN PIPING - ONE & TWO WAY PILOT PIPING - BREAKER BOOM PIPING - ONE WAY ARM PIPING - 3.2m ONE & TWO WAY ARM PIPING - 2.6m ONE & TWO WAY ARM PIPING - 4.0m ONE & TWO WAY NAME PLATE ONE & TWO WAY LOCK VALVE PIPING ADDITIONAL WORKING LAMP F.O.G.S ASSY CABIN LOW GUARD TROPICAL COVER FLOOR PLATE - ARTI.BOOM FLOOR ASSY - TILT & ARTI.BOOM BOOM PIPING - ROTATING & TILTING ARM PIPING - 3.2m - ROTATING & TILTING DOUBLE FUEL FILTER ASSY MAIN PIPING - ROTATION & TILTING BOOM PIPING - BOOM 6.5m (PE3C) MAIN PIPING - PE3C PILOT PIPING - PE3C & PERO PILOT PIPING - PE3C PILOT PIPING - PERO TRACK FRAME - INDIA TRACK SHOE ASSY(600G) - INDIA

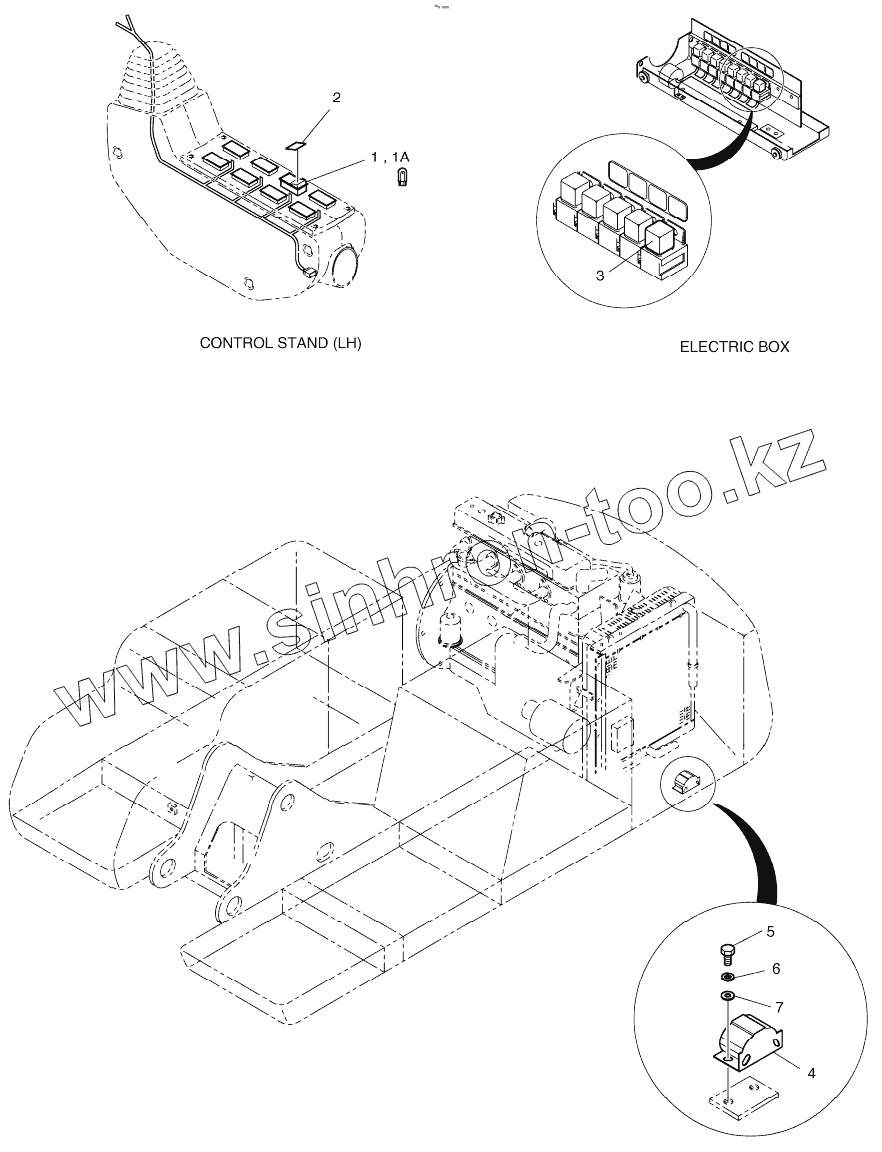

Позиция на иллюстрации	Заводской номер детали		Название детали
516-00016	516-00016		Travel/swing alarm assy
1	2549-9109		SWITCH;LAMP
1A	K9000353		LAMP;PILOT
2	2190-2584D13		INSERT;TRAVEL/SWING ALARM
3	2544-9033		RELAY
4	516-00011		BUZZER;ALARM
5	S0508653		BOLT M8X1.25X16
6	S5102503		WASHER;SPRING
7	S5010513		WASHER;PLAIN M8
8	2549-9407		SWITCH;PRESSURE
9	2530-1423A		HARNESS;LOW PRESS SW
10	2181-2666		Tee
11	S8180221		PACKING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
