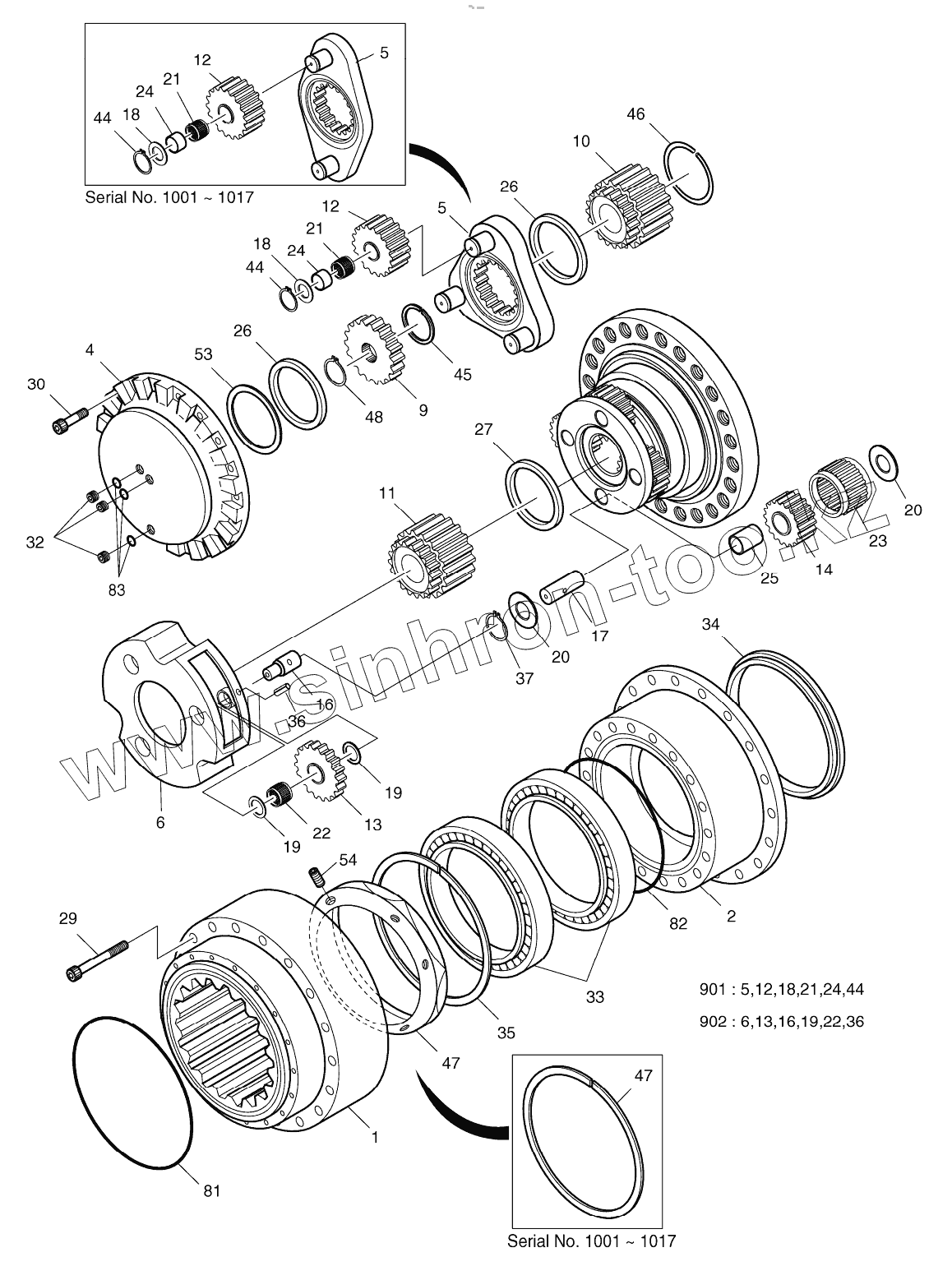

Каталог запасных частей к технике: Doosan S340LC-V. TRAVEL REDUCTION GEAR

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
4
4
5
5
5
5
5
5
6
6
6
6
9
10
11
12
12
12
12
12
12
12
12
13
13
14
16
16
16
16
17
18
18
18
18
18
18
18
18
19
19
19
20
20
21
21
21
21
21
21
21
21
22
22
23
23
24
24
24
24
24
24
24
24
25
26
26
26
26
27
29
30
32
33
34
35
35
35
35
35
35
35
35
35
35
35
35
36
36
36
36
36
36
37
44
44
44
44
44
44
44
44
45
46
47
47
47
47
47
47
48
53
54
81
82
83
901
901
902
902
Позиция на иллюстрации Заводской номер детали Название детали
722441 722441 TRAVEL REDUCTION GEAR
718883 718883 TRAVEL REDUCTION GEAR
1 132970 GEAR, RING
2 132971 HOUSING (LH)
2 141949 HOUSING
4 132972 SIDE COVER
4 140377A COVER, SIDE
5 132973 CARRIER NO.1
5 141765 CARRIER NO.1
6 132976 CARRIER NO.2
6 141952 CARRIER NO.2
9 132983 GEAR, SUN NO.1
10 132984 GEAR, SUN NO.2
11 132985 GEAR, SUN NO.3
12 132974 GEAR, PLANETARY NO.1
12 132974 GEAR, PLANETARY NO.1
13 135392 GEAR, PLANETARY NO.2
14 132980 GEAR, PLANETARY NO.3
16 141946 PIN NO.2
16 132979 PIN NO.2
17 132981 PIN NO.3
18 132975 SIDE PLATE E
18 132975A PLATE, SIDE E
19 132978 PLATE, SIDE A
20 134636 PLATE, SIDE F
21 234351 CAGE, NEEDLE
21 234351 CAGE, NEEDLE
22 234353 CAGE, NEEDLE
23 234354 CAGE, NEEDLE
23 236073 CAGE, NEEDLE
24 234352 RING, INNER
24 234352 RING, INNER
25 132982 BUSH, FLOATING
26 132986 RING, THRUST 60
26 132986 RING, THRUST 60
27 132987 RING, THRUST 90
29 230587 BOLT, SOCKET M16X100
30 200846 Bolt, socket
32 131145 PLUG;RO
33 234600 BEARING, ANGULAR
34 132988 SEAL, FLOATING
35 132989 SHIM
35 141947 SHIM 1.0
35 132989A SHIM 0.9
35 141947A SHIM 0.9
35 132989B SHIM 0.8
35 141947B SHIM 0.8
35 132989C SHIM 0.7
35 141947C SHIM 0.7
35 132989D SHIM 0.6
35 141947D SHIM 0.6
35 132989E SHIM 0.5
35 141947E SHIM 0.5
36 236663 PIN, SPRING
36 101226 SPRING PIN
37 230586 RING, SNAP
44 230583 RING, SNAP
44 230583 RING, SNAP
45 230591 CLIP
46 230592 CLIP
47 230596 RING, SNAP
47 141966 NUT, RING
48 230593 RING, SNAP
53 140374 WASHER
54 236678 SCREW, SET
81 230594-CPP323 O-RING
82 230595 O-RING
83 201710 O-RING
901 720861-PH CARRIER NO.1 SUB ASSY
901 722532-PH CARRIER NO.1 SUB ASSY
902 720860-PH CARRIER NO.2 SUB ASSY
902 722531-PH CARRIER NO.2 SUB ASSY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
