Каталог запасных частей к технике: Doosan S340LC-V. TRACK FRAME - INDIA
1
1
2
2A
3
4
5A
5A
5B
5C
5D
7
8
8
8
8
10
11
11
12
13
14
15
16
17
18
18
18
18
20
21
21
21
22
22
23
24
25
25
26
28
29
29
30
30
30
30
31
32
32
32
32
32
32
32
32
32
32
33

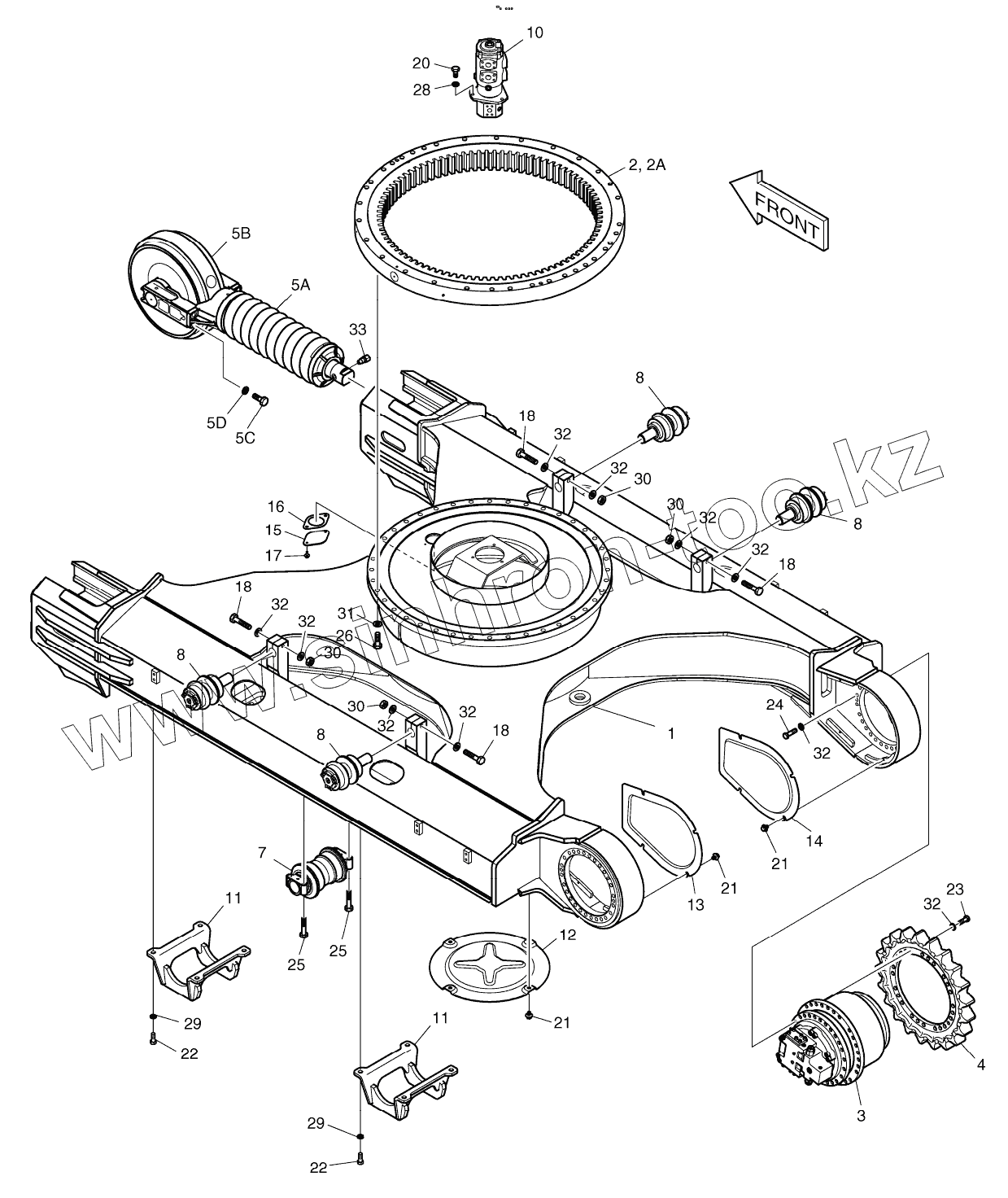

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| K1014309E | K1014309E | TRACK FRAME ASSY | |
| 1 | K1014448A | FRAME, TRACK | |
| 1 | K1014448B | FRAME, TRACK | |
| 2 | 2109-1059A | BEARING, SWING | |
| 2A | 180-00297D2 | Seal | |
| 3 | K1016156 | TRAVEL DEVICE | |
| 4 | 108-00022B | SPROCKET | |
| 5 | K1006203A | IDLER SUB ASSY | |
| 5 | K1006203C | ADJUSTER ASSY, TRACK | |
| 5A | K1006183A | SPRING, TRACK | |
| 5A | K1006183C | TRACK SPRING ASSY | |
| 5B | 270-00049B | IDLER ASSY | |
| 5C | S0565466 | BOLT M16X2.0X60 | |
| 5D | S5102903 | WASHER;SPRING | |
| 7 | K1008896 | ROLLER, LOWER | |
| 8 | 270-00047A | ROLLER, UPPER | |
| 10 | 2480-9405B | JOINT, CENTER | |
| 11 | K1009970 | GUARD, TRACK | |
| 12 | K1004271 | COVER, UNDER | |
| 13 | 621-02715A | COVER, MOTOR | |
| 14 | 621-02714A | COVER, MOTOR | |
| 15 | 2403-1002 | COVER | |
| 16 | 2180-1017A | PACKING | |
| 17 | DS0025017 | BOLT | |
| 18 | S0571166 | Bolt | |
| 20 | S0521261 | BOLT | |
| 21 | DS0025019 | BOLT | |
| 22 | S0527666 | Bolt | |
| 23 | S0570066 | BOLT | |
| 24 | S0570366 | BOLT M20X2.5X75 | |
| 25 | S0570666 | BOLT M20X2.5X90 | |
| 26 | S0574966 | Bolt | |
| 28 | S5102903 | WASHER;SPRING | |
| 29 | S5103103 | WASHER;SPRING | |
| 30 | S4013133 | Nut | |
| 31 | 2114-1831A | WASHER;HARDEN | |
| 32 | 2114-9012A | WASHER;HARD | |
| 33 | 422-00055 | VALVE, GREASE |
