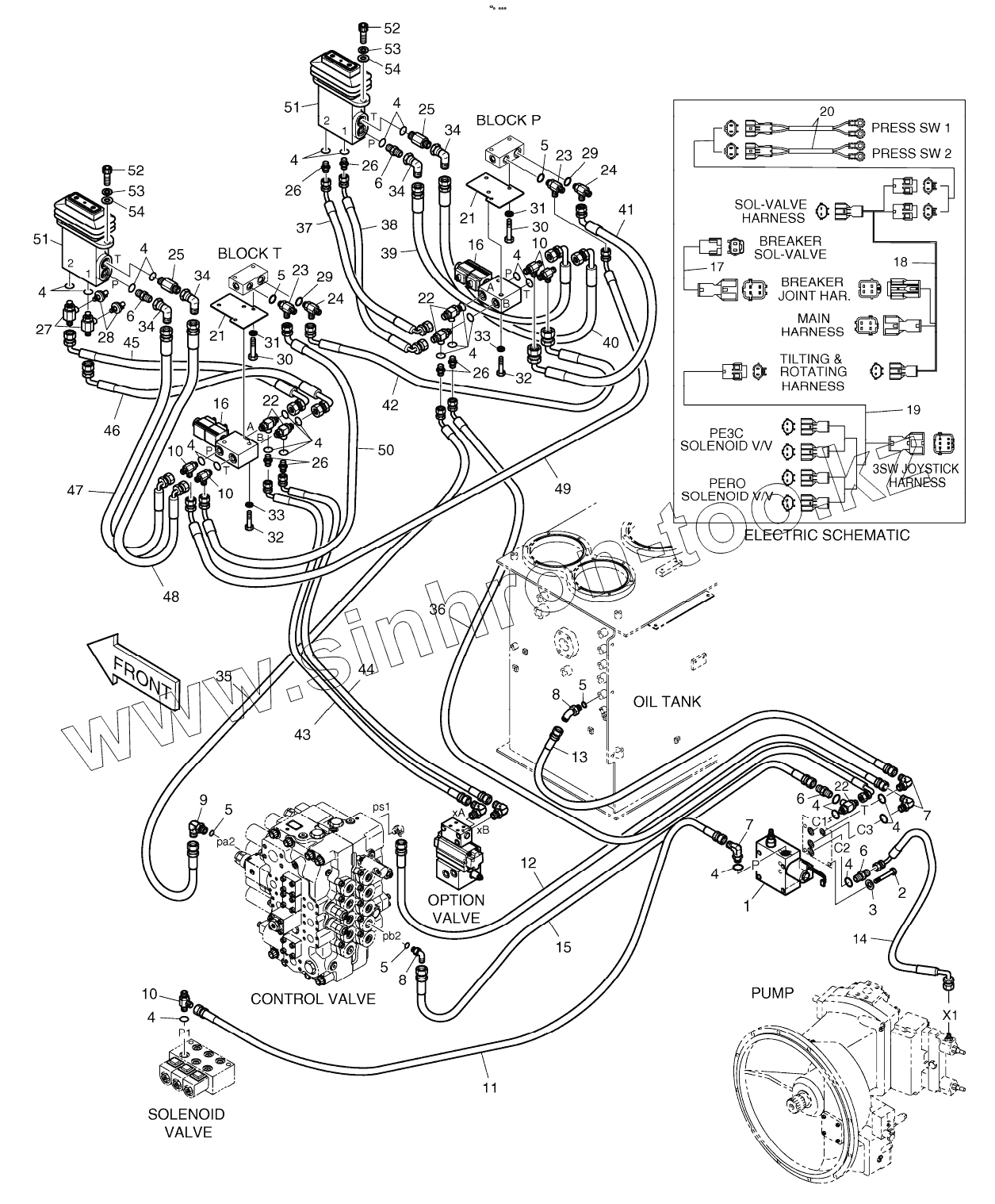

Каталог запасных частей к технике: Doosan S340LC-V. PILOT PIPING - PE3C & PERO
K1008121F1
K1008121F1
K1008121F1
K1008121F1
1
2
3
4
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
6
6
6
6
7
7
8
8
9
10
10
10
10
11
12
13
14
15
16
16
17
18
19
20
21
21
22
22
22
23
23
24
24
25
25
26
26
26
26
27
28
29
29
30
30
31
31
32
32
33
33
34
34
34
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
51
52
52
53
53
54
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| K1008121F1 | K1008121F1 | PILOT PIPING-PE3C & PERO | |
| 1 | 420-00340B | VALVE;PACKAGE | |
| 2 | S0558953 | BOLT M10X1.5X70 | |
| 3 | S5102603 | WASHER;SPRING M10 | |
| 4 | S8000111 | O-RING | |
| 5 | S8000141 | O-RING | |
| 6 | 2181-1126D14 | ADAPTER;S PFO-PF1/4 | |
| 7 | 2181-1702D4 | ELBOW | |
| 8 | 2181-1702D10 | ELBOW | |
| 9 | 2181-1702D5 | ELBOW PF3/8-PF3/8 | |
| 10 | 2181-1951D1 | TEE PFO1/4-2PF1/4 | |
| 11 | 2184-1045D104 | HOSE PF1/4-2400L | |
| 12 | 2184-1045D208 | HOSE PF1/4-1540L | |
| 13 | DS2053668 | HOSE PF1/4 1400L | |
| 14 | 2184-1061D34 | HOSE PF1/4-1100L | |
| 15 | 2184-1045D115 | HOSE PF1/4-1280L | |
| 16 | K1002677 | Valve, solenoid | |
| 17 | 530-00232 | HARNESS;BREAKER | |
| 18 | K1000471A | Harness, tilt and rot | |
| 19 | K1000408 | Harness | |
| 20 | 530-00067 | Harness | |
| 21 | K1002685 | Bracket | |
| 22 | K1002694 | Tee, shuttle | |
| 23 | 2181-1951D6 | TEE | |
| 24 | 2181-1951D19 | TEE PFO1/2XPF1/2XPF1/4 | |
| 25 | 2181-1126D34 | ADAPTER PFO1/4-PF1/4 | |
| 26 | 2181-1126D39 | Adapter | |
| 27 | 181-00760 | Tee | |
| 28 | 549-00010 | SWITCH;PRESSURE | |
| 29 | S8000181 | O-RING | |
| 30 | S0558766 | Bolt | |
| 31 | S5102603 | WASHER;SPRING M10 | |
| 32 | S0556266 | Bolt | |
| 33 | S5102503 | WASHER;SPRING | |
| 34 | 181-00709 | Elbow | |
| 35 | DS2055280 | HOSE 4000L | |
| 36 | DS2059495 | HOSE 5000L | |
| 37 | DS2059472 | Hose | |
| 38 | DS2059472 | Hose | |
| 39 | DS2055099 | Hose | |
| 40 | DS2055099 | Hose | |
| 41 | DS2059473 | Hose | |
| 42 | DS2059474 | Hose | |
| 43 | 2184-1046D229 | HOSE PF3/8-3400L | |
| 44 | 2184-1046D229 | HOSE PF3/8-3400L | |
| 45 | DS2059475 | Hose | |
| 46 | DS2059475 | Hose | |
| 47 | DS2055099 | Hose | |
| 48 | DS2055099 | Hose | |
| 49 | DS2059476 | Hose | |
| 50 | DS2059477 | Hose | |
| 51 | 420-00347 | VALVE;PEDAL | |
| 52 | S2212266 | BOLT;SOCKET M10X1.5X30 | |
| 53 | S5110601 | WASHER;SPRING | |
| 54 | S5010613 | WASHER;PLAIN |
