Каталог запасных частей к технике: Doosan S340LC-V. PILOT PIPING
9
19
20
20
21
22
22
22
23
23
24
25
25
26
26
27
27
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
29
30
30
30
30
34
34
34
34
35
36
36
37
37
37
45
47
48
58
59
78
79
80
81
82
90
90
91
91
93

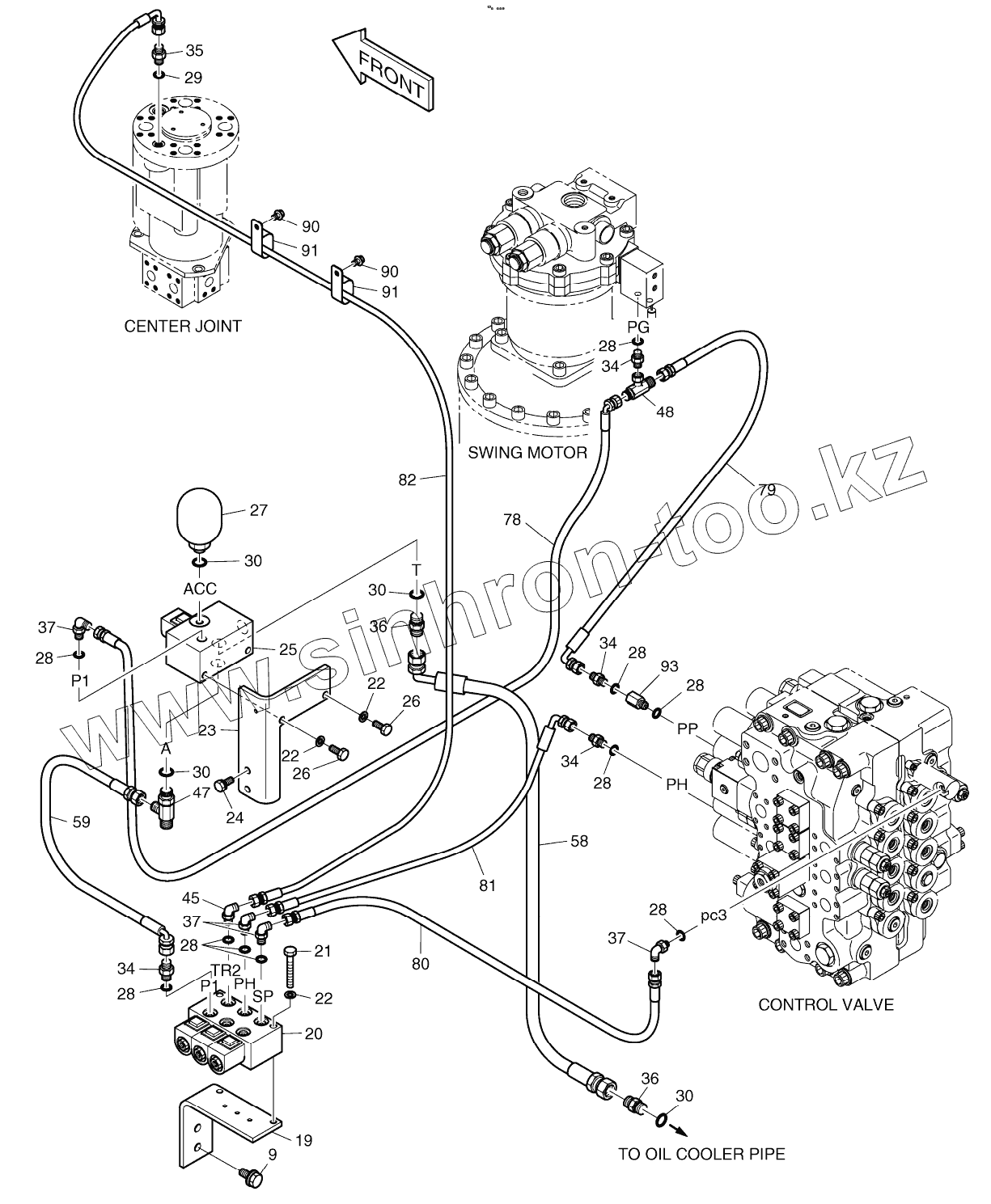

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 400-00777A | 400-00777A | PILOT PIPING | |
| 9 | 2120-2196D8 | Bolt | |
| 19 | 195-01993 | Bracket | |
| 20 | 426-00163 | Solenoid valve | |
| 20 | 426-00163A | Solenoid valve | |
| 21 | S0558953 | BOLT M10X1.5X70 | |
| 22 | S5102603 | WASHER;SPRING M10 | |
| 23 | 195-01583A | BRACKET | |
| 23 | 195-01583B | Bracket | |
| 24 | 2120-2196D4 | BOLT M10X1.5X25 | |
| 25 | 2426-9039B | PILOT VALVE | |
| 25 | 2426-9039C | PILOT VALVE | |
| 26 | S0512053 | BOLT M10X1.5X25 | |
| 27 | 2460-9057A | ACCUMULATOR | |
| 27 | 2460-9060 | ACCUMULATOR | |
| 28 | S8000111 | O-RING | |
| 28 | S8000111 | O-RING | |
| 29 | S8000141 | O-RING | |
| 30 | S8000181 | O-RING | |
| 34 | 2181-1126D14 | ADAPTER;S PFO-PF1/4 | |
| 35 | 2181-1126D7 | ADAPTER PFO3/8-PF3/8 | |
| 36 | 2181-1126D6 | ADAPTER | |
| 37 | 2181-1702D4 | ELBOW | |
| 45 | 2181-1702D3 | ELBOW | |
| 47 | 2181-1951D19 | TEE PFO1/2XPF1/2XPF1/4 | |
| 48 | 2181-4125 | TEE 3-PF1/4 | |
| 58 | 2184-1036D43 | HOSE PF1/2-550L | |
| 59 | 2184-1046D35 | Hose | |
| 78 | 2184-1046D114 | Hose | |
| 79 | 2184-1060D210 | HOSE PF1/4-480L | |
| 80 | 2184-1045D209 | Hose | |
| 81 | 2184-1046D43 | HOSE PF1/4-1120L | |
| 82 | DS2055733 | HOSE PF3/8-1750L | |
| 90 | 120-00276 | BOLT M8X1.25X12 | |
| 91 | 124-00209D1 | CLIP 2-D20/M8 | |
| 93 | 471-00118 | Filter, reducer |
