12
12
12
12
13
13
19
19
20
21
24
24
37
38

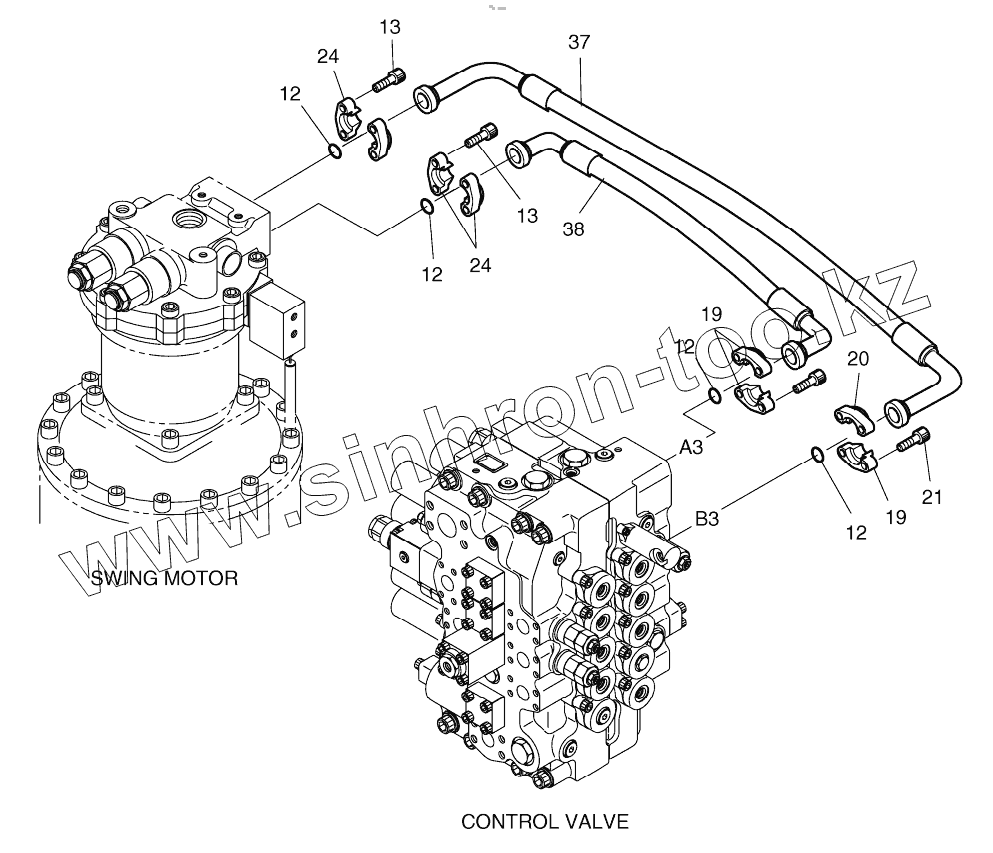

Позиция на иллюстрации
Заводской номер детали
Название детали
400-00776
400-00776
MAIN PIPING
12
2180-1026D19
O-RING
13
S2215466
BOLT;SOCKET
19
2181-9078
Flange
20
2181-9083
Flange
21
S2212266
BOLT;SOCKET M10X1.5X30
24
2181-9081
FLANGE;SPLIT
37
DS2045273
HOSE
38
DS2045274
HOSE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
