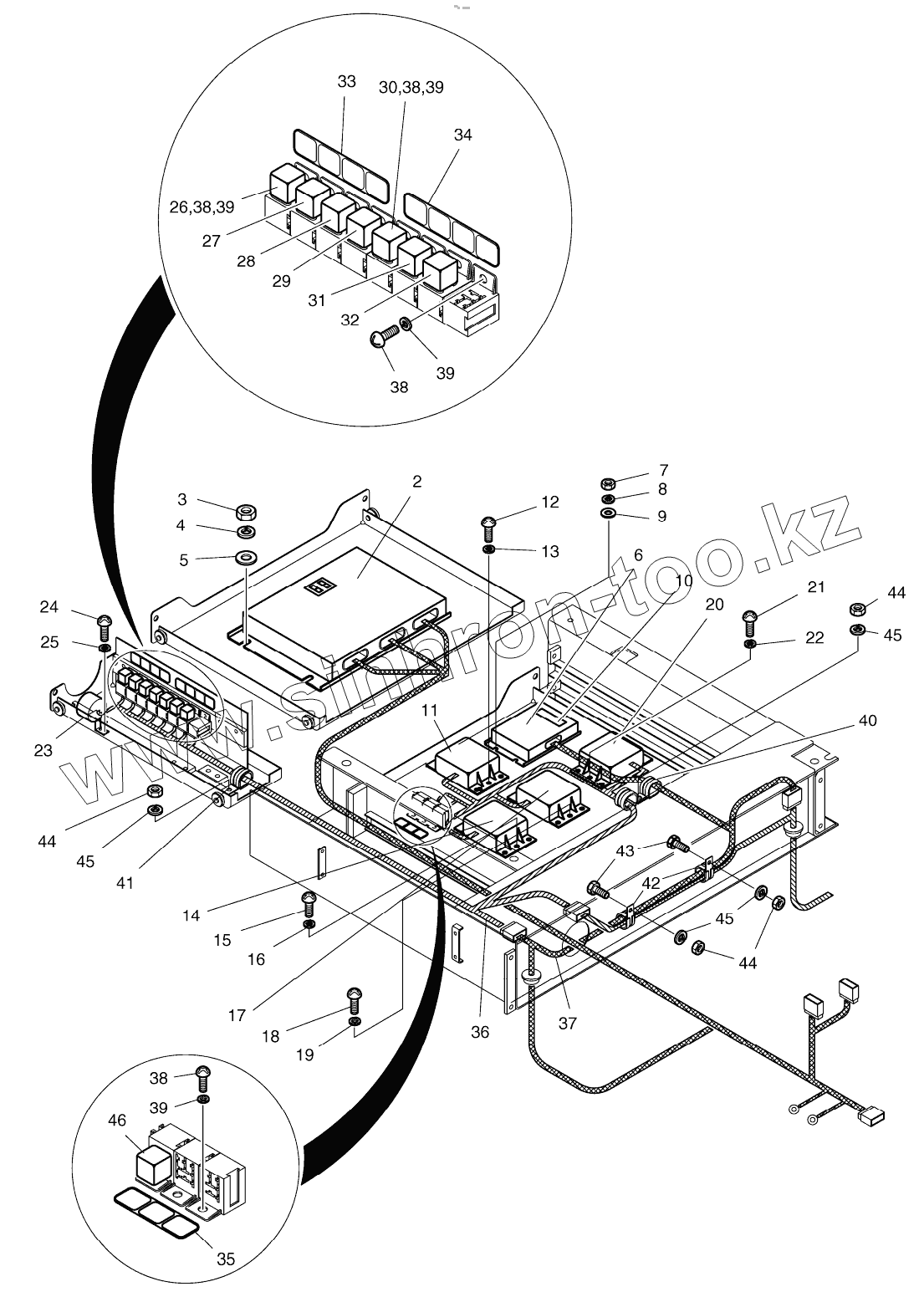

Каталог запасных частей к технике: Doosan S340LC-V. ELECTRIC BOX ASSY - ELECTRIC PARTS
500-00154B
500-00154A
500-00154G
500-00154C
500-00154E
2
2
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
38
38
38
39
39
39
39
40
41
42
43
44
44
44
45
45
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 500-00154B | 500-00154B | ELECTRIC BOX ASSY | |
| 500-00154A | 500-00154A | ELECTRIC BOX ASSY | |
| 500-00154G | 500-00154G | ELECTRIC BOX ASSY | |
| 500-00154C | 500-00154C | ELECTRIC BOX ASSY | |
| 500-00154E | 500-00154E | ELECTRIC BOX ASSY | |
| 2 | 543-00057A | CONTROLLER, EPOS | |
| 2 | 543-00057B | CONTROLLER, EPOS | |
| 2 | 543-00057C | CONTROLLER, EPOS | |
| 3 | S4012633 | NUT M10X1.5 | |
| 4 | S5102603 | WASHER;SPRING M10 | |
| 5 | S5010613 | WASHER;PLAIN | |
| 6 | 543-00074 | CONTROLLER;THROTTLE | |
| 7 | S4012333 | NUT M6X1.0 | |
| 8 | S5102303 | WASHER;SPRING M6 | |
| 9 | S5010313 | WASHER;PLAIN | |
| 10 | 2190-3231D19 | PLATE, NAME | |
| 10 | 2190-3231D22 | PLATE, NAME | |
| 11 | 2543-9015 | STARTER;CONTROLLER | |
| 12 | S3450943 | SCREW M6X1.0X10 | |
| 13 | S5102303 | WASHER;SPRING M6 | |
| 14 | 2537-9008 | TIMER;WIPER | |
| 15 | S3450943 | SCREW M6X1.0X10 | |
| 16 | S5102303 | WASHER;SPRING M6 | |
| 17 | 2531-1003 | CONVERTER;DC-DC (2) | |
| 18 | S3450953 | SCREW M6X1.0X12 | |
| 19 | S5102303 | WASHER;SPRING M6 | |
| 20 | 2531-1003 | CONVERTER;DC-DC (2) | |
| 21 | S3450953 | SCREW M6X1.0X12 | |
| 22 | S5102303 | WASHER;SPRING M6 | |
| 23 | 2516-1116 | BUZZER;PILOT | |
| 24 | S3450943 | SCREW M6X1.0X10 | |
| 25 | S5102303 | WASHER;SPRING M6 | |
| 26 | 2544-9033 | RELAY | |
| 27 | 2544-9033 | RELAY | |
| 28 | 2544-9033 | RELAY | |
| 29 | 2544-9033 | RELAY | |
| 30 | 2544-9033 | RELAY | |
| 31 | 2544-9033 | RELAY | |
| 32 | 2544-9033 | RELAY | |
| 33 | 2190-2037D19 | PLATE;NAME | |
| 34 | 2190-2037D20 | PLATE;NAME | |
| 35 | 2190-2037D56 | PLATE;NAME | |
| 36 | 530-00207A | HARNESS;ELECTRIC BOX | |
| 37 | 530-00208A | HARNESS;CABIN | |
| 37 | 530-00208B | HARNESS;CABIN | |
| 38 | S3450823 | SCREW M5X0.8X10 | |
| 39 | S5100203 | WASHER;SPRING | |
| 40 | 124-00208D3 | CLIP D20/M8 | |
| 41 | 124-00208D5 | CLIP D32/M8 | |
| 42 | 124-00208D6 | CLIP D38/M8 | |
| 43 | S0508853 | BOLT M8X1.25X20 | |
| 44 | S4012533 | NUT M8X1.25 | |
| 45 | S5102503 | WASHER;SPRING | |
| 46 | 2544-9033 | RELAY |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
