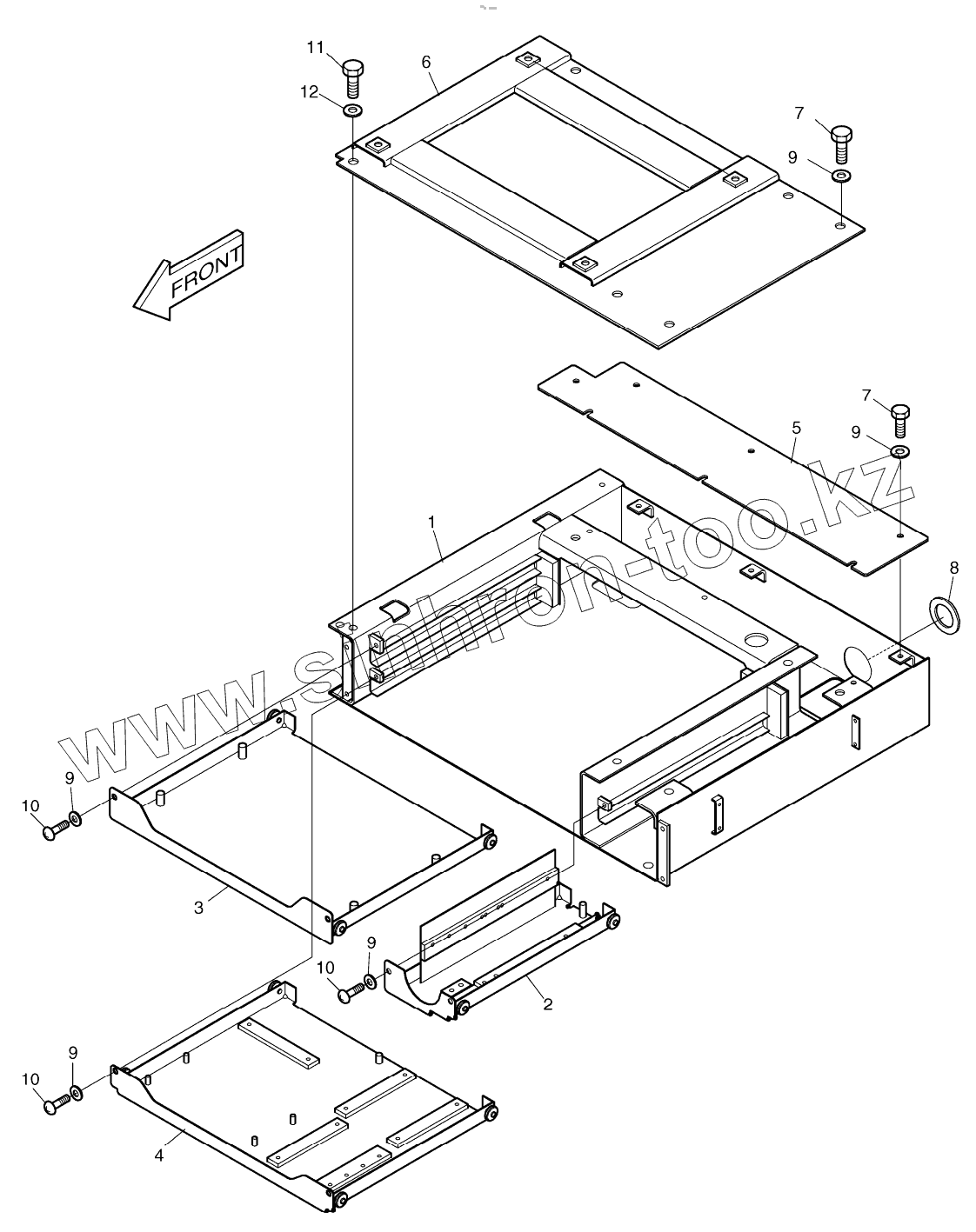

512-00031
1
2
3
4
5
6
7
7
8
9
9
9
9
9
10
10
10
11
12
Позиция на иллюстрации
Заводской номер детали
Название детали
512-00031
512-00031
ELECTRIC BOX ASS'Y
1
2512-1118B
ELECTRIC BOX
2
2891-1266A
PLATE
3
2891-1267
PLATE
4
2891-1265
PLATE
5
2891-1268
PLATE
6
621-01952
PLATE
7
2120-2166D6
BOLT M6X1.0X16
8
2110-1349
BUSH;RUBBER
9
2114-1898D3
WASHER
10
S3458953
SCREW M6X1.0X12
11
2120-2166D4
BOLT M10X1.5X20
12
2114-1898D1
WASHER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
