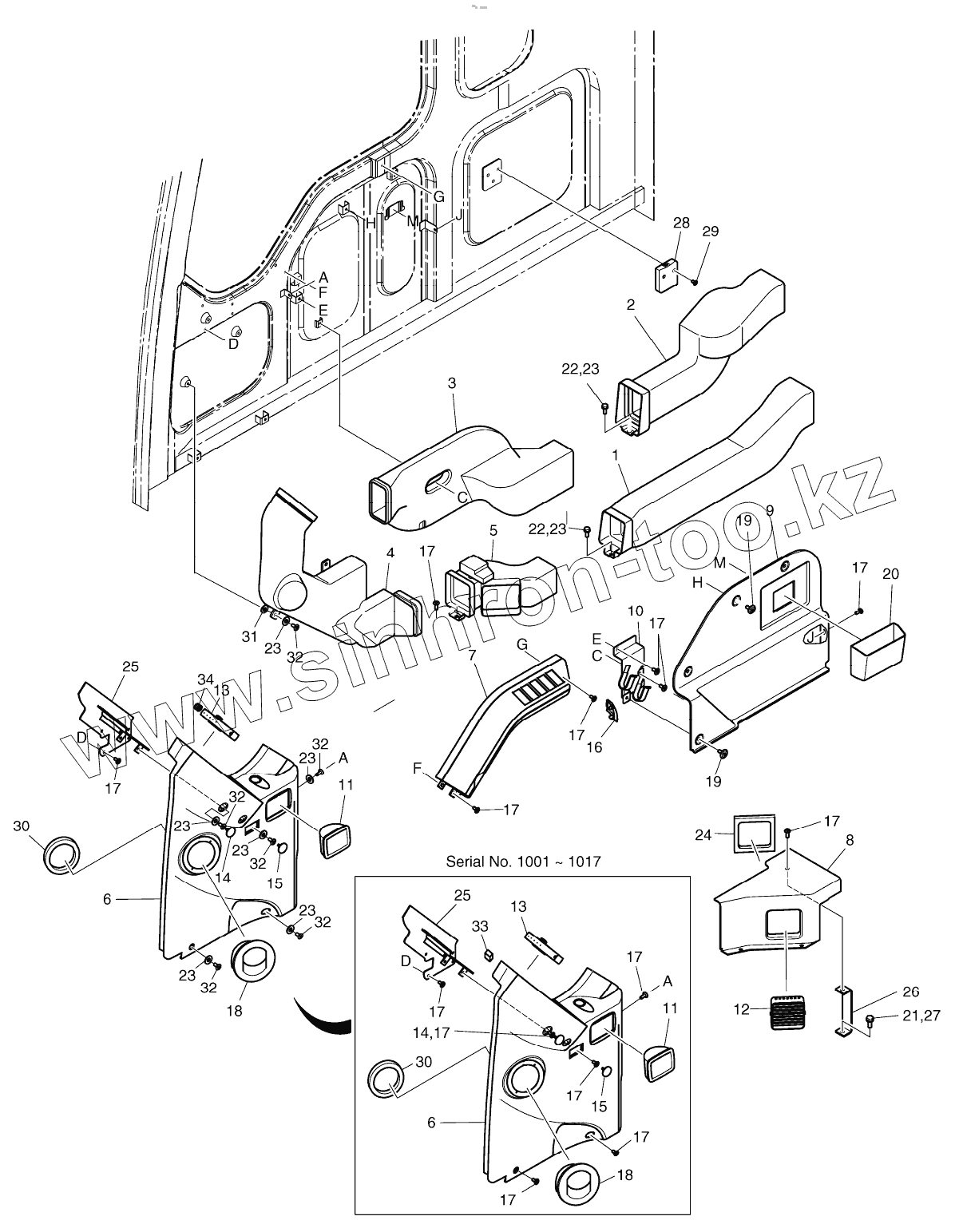

Каталог запасных частей к технике: Doosan S340LC-V. DUCT COVER
621-01885B
621-01885A
621-01885C
1
2
3
4
5
6
6
6
6
7
8
9
10
11
11
12
13
13
14
14
15
15
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
18
19
19
20
21
22
22
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
24
25
25
25
25
25
25
26
27
28
29
30
30
31
32
32
32
32
32
32
32
32
32
32
32
32
32
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 621-01885B | 621-01885B | Duct and duct cover assy | |
| 621-01885A | 621-01885A | DUCT &DUCT COVER ASSY | |
| 621-01885C | 621-01885C | DUCT & DUCT COVER ASS'Y | |
| 1 | 2213-1097 | DUCT;FOOT REAR | |
| 2 | 2213-1095 | DUCT;FACE REAR | |
| 3 | 213-00025 | DUCT;FACE REAR | |
| 4 | 213-00026 | DUCT;FACE FRONT | |
| 5 | 2213-9002 | DUCT;FOOT | |
| 6 | 621-01859 | Cover, side inner | |
| 6 | 621-01859A | COVER;SIDE INNER(FRONT) | |
| 7 | 621-01860 | COVER;SIDE INNER(REAR) | |
| 8 | 621-01849 | COVER;FOOT DUCT | |
| 9 | 621-00340 | PANEL | |
| 10 | 195-01847 | BRACKET | |
| 11 | 2906-9005 | ASHTRAY | |
| 12 | 2415-1014 | LOUVER;DEF& FOOT | |
| 13 | 415-00039 | LOUVER;FACE | |
| 14 | 621-01873 | COVER;HOLE | |
| 15 | 621-01874 | COVER;HOLE | |
| 16 | 621-01875 | COVER;HOLE | |
| 17 | 2120-2166D10 | SCREW M6X1.0X14 | |
| 17 | 2120-2166D10 | SCREW M6X1.0X14 | |
| 18 | 2415-9007 | NOZZLE;ROUND | |
| 19 | 2120-2174 | SCRIVET | |
| 20 | 621-01908 | BOX | |
| 21 | 2114-1898D2 | WASHER M8 | |
| 22 | 2120-2166D6 | BOLT M6X1.0X16 | |
| 23 | 2114-1898D5 | WASHER;PLAIN M6 | |
| 23 | 2114-1898D5 | WASHER;PLAIN M6 | |
| 24 | 2161-2397 | RUBBER;CUSHION 15T | |
| 25 | 195-01640C | BRACKET | |
| 25 | 195-01640B | Bracket | |
| 25 | 195-01640A | BRACKET | |
| 26 | 195-01746 | BRACKET PL4.5 | |
| 27 | 2120-2166D5 | BOLT M8X1.25X20 | |
| 28 | 621-01984 | HOLDER;CUP | |
| 29 | S3452853 | SCREW M5X0.8X16 | |
| 30 | 161-00427A | RUBBER;CUSHION | |
| 31 | 2114-1058D54 | WASHER | |
| 32 | 2120-2166D24 | SCREW M6X1.0X20 | |
| 32 | 2120-2166D24 | SCREW M6X1.0X20 | |
| 33 | 161-00468 | RUBBER | |
| 34 | 161-00495 | RUBBER;CUSHION |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
