Каталог запасных частей к технике: Doosan S340LC-V. DRIVING SYSTEM
1
1
1
1
1
1
2
2
2
2
2-1
2-1
3
4
5
6
7
8
9
9
10
10
10
11
11
11
12
12
12
13
14
14
15
16
17
18
18
19
20
21
21
21
21
21
22
22
22
22
23
24
24
25
26
26
26
26
27
27
27
27
28
29
30
31
32
32
33
34
35

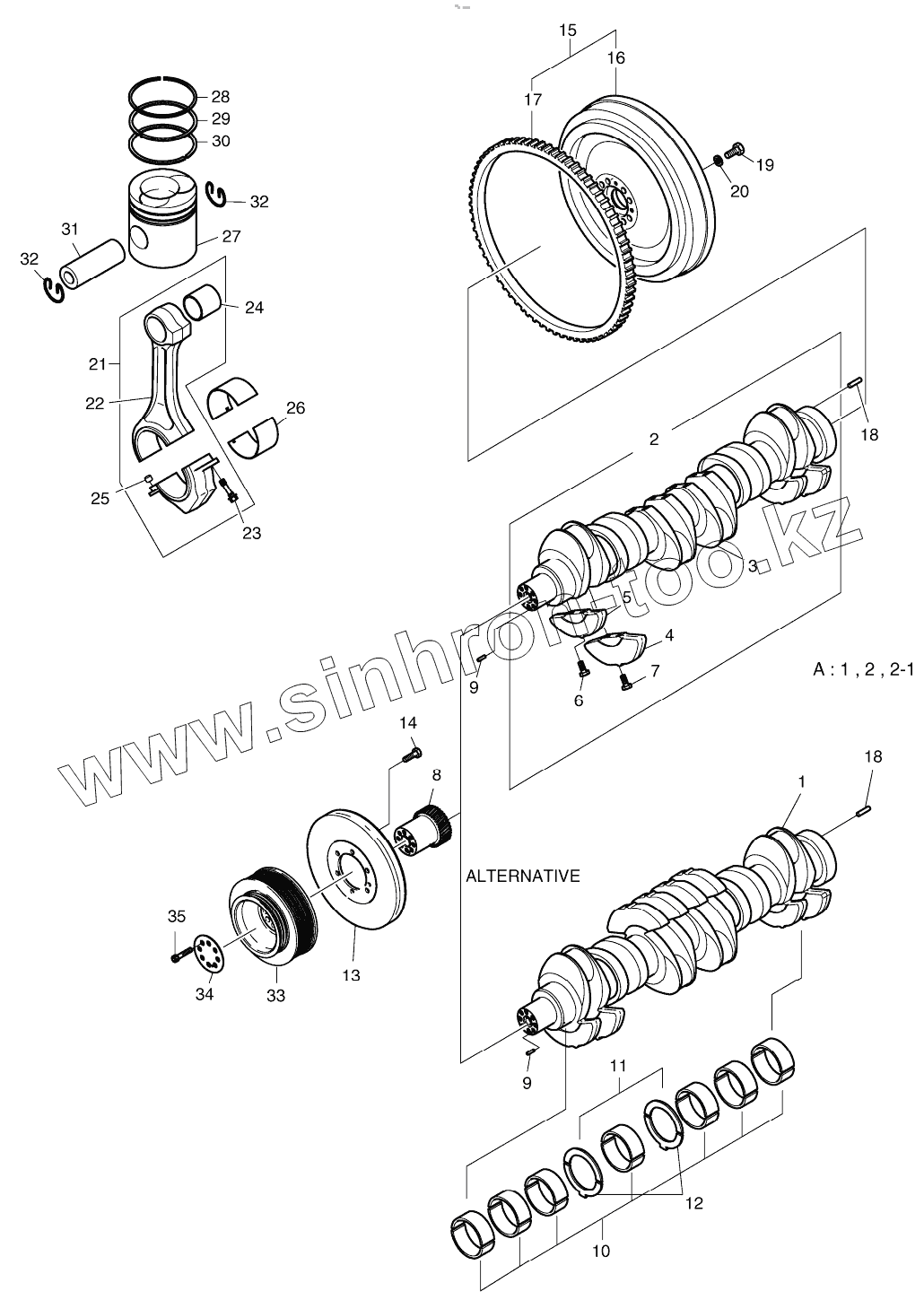

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 004 -A | 65.02101-7541A | CRANK SHAFT ASSY | |
| 004 -A | 65.02101-7541B | CRANKSHAFT ASSY | |
| 004 -A | 65.02101-7541C | CRANKSHAFT ASSY | |
| 1 | 65.02101-0057 | CRANK SHAFT ASSY | |
| 1 | 65.02101-0057A | SHAFT, CRANK | |
| 1 | 65.02101-0057B | SHAFT, CRANK | |
| 2 | 65.02101-7054A | CRANK SHAFT ASSY | |
| 2 | 65.02101-7054B | CRANK SHAFT ASSY | |
| 2-1 | 65.02101-0060A | CRANK SHAFT ASSY | |
| 2-1 | 65.02101-0060B | SHAFT, CRANK | |
| 3 | 65.02101-0054 | SHAFT, CRANK | |
| 4 | 65.02110-0013E | WEIGHT, COUNTER | |
| 5 | 65.02110-0014E | WEIGHT, COUNTER | |
| 6 | 65.90430-0012B | BOLT, CRANK SHAFT | |
| 7 | 65.90430-0013B | BOLT, CRANK SHAFT | |
| 8 | 65.02115-0008B | GEAR, CRANK SHAFT | |
| 9 | 06.22022-0912 | PIN, DOWEL | |
| 10 | 65.01110-6115 | METAL, MAIN | |
| 10 | 65.01110-6116 | METAL, MAIN | |
| 10 | 65.01110-6117 | METAL, MAIN | |
| 11 | 65.01150-0017A | WASHER | |
| 11 | 65.01150-0048A | WASHER | |
| 11 | 65.01150-0049A | WASHER | |
| 12 | 65.01150-0018B | WASHER | |
| 12 | 65.01150-0052B | WASHER | |
| 12 | 65.01150-0053B | WASHER | |
| 13 | 65.02201-7032 | Damper | |
| 14 | 06.01914-3215 | Bolt | |
| 14 | 65.90020-0062B | Bolt | |
| 15 | 65.02301-5121 | FLYWHEEL | |
| 16 | 65.02301-0266 | FLYWHEEL | |
| 17 | 65.02310-0011A | GEAR, STARTER RING | |
| 18 | 06.22022-1010 | PIN,DOWEL | |
| 19 | 65.90001-0084 | BOLT | |
| 20 | 06.16731-2110 | Washer | |
| 21 | 65.02401-6017 | CONNECTING ROD ASSY | |
| 21 | 65.02401-6017A | CONNECTING ROD ASSY | |
| 21 | 65.02401-6017B | CONNECTING ROD ASSY | |
| 21 | 65.02401-6017C | CONNECTING ROD ASSY | |
| 21 | 65.02401-6017D | CONNECTING ROD ASSY | |
| 22 | 65.02401-0045E | ROD, CONNECTING | |
| 22 | 65.02401-0045F | ROD, CONNECTING | |
| 22 | 65.02401-0045G | ROD, CONNECTING | |
| 22 | 65.02401-0045H | ROD, CONNECTING | |
| 23 | 65.90020-0010E | BOLT, CON-ROD | |
| 24 | 65.02405-1010 | BUSH, CON-ROD | |
| 24 | 65.02405-0011 | BUSH, CON-ROD | |
| 25 | 65.91301-0010 | PIN, DOWEL | |
| 26 | 65.02410-6106 | METAL, CONNECTING ROD | |
| 26 | 65.02410-6107 | METAL, CONNECTING ROD | |
| 26 | 65.02410-6108 | METAL, CONNECTING ROD | |
| 26 | 65.02410-6109 | METAL, CONNECTING ROD | |
| 27 | 65.02501-0232 | PISTON | |
| 27 | 65.02501-0601 | PISTON | |
| 27 | 65.02501-0601A | PISTON | |
| 27 | 65.02501-0601B | PISTON | |
| 28 | 65.02503-0674 | RING, TOP | |
| 29 | 65.02503-0097 | RING, 2ND | |
| 30 | 65.02503-0675B | RING, PISTON | |
| 31 | 65.02502-0013 | PIN, PISTON | |
| 32 | 06.29020-0127 | RING | |
| 33 | 65.02601-0192 | PULLEY, V-BELT | |
| 34 | 65.90701-0088 | WASHER | |
| 35 | 06.02106-0622 | BOLT, SOCKET HEAD |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
