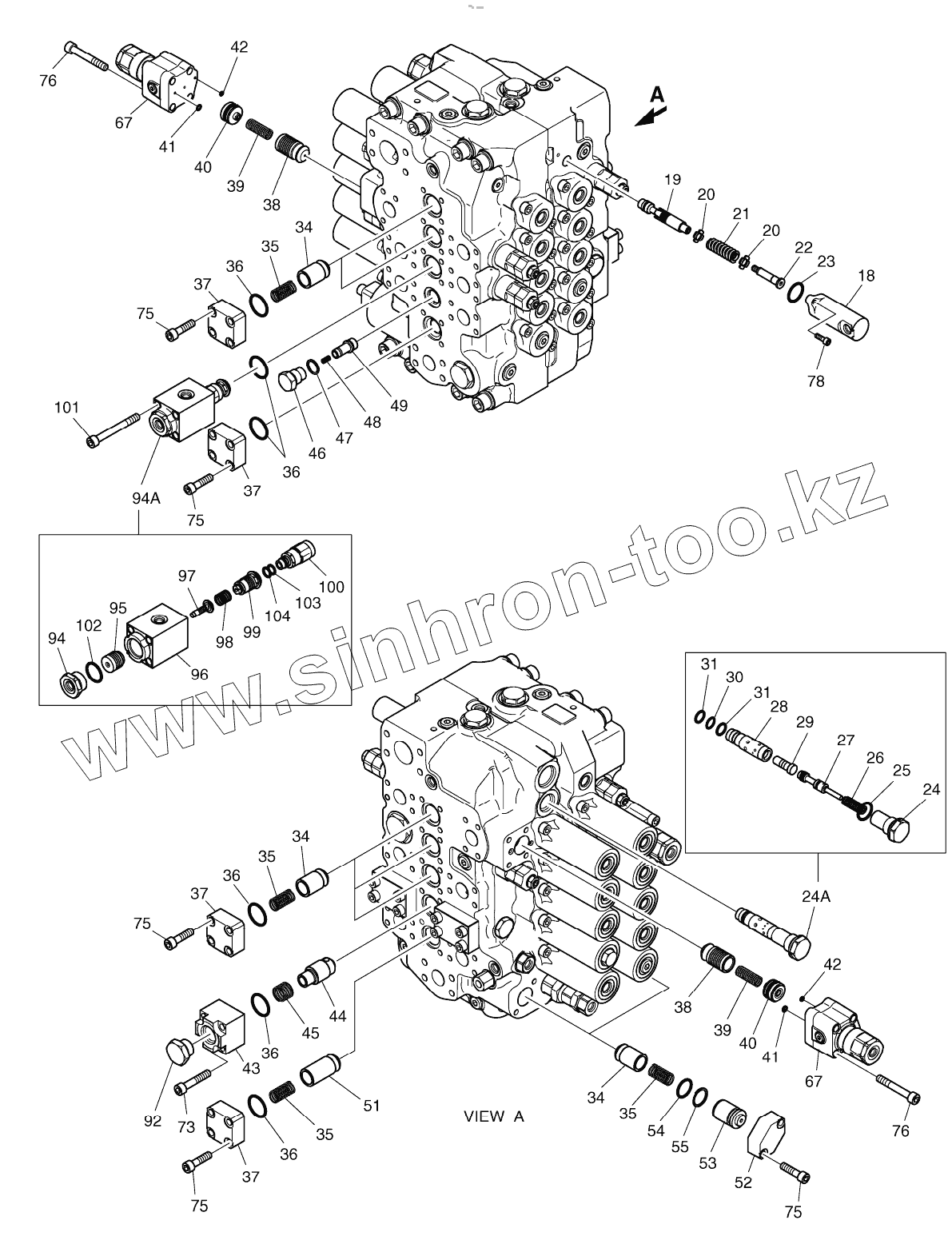

Каталог запасных частей к технике: Doosan S340LC-V. CONTROL VALVE
18
19
20
20
21
22
23
24A
24
25
26
27
28
29
30
31
31
34
34
34
35
35
35
35
36
36
36
36
36
37
37
37
37
38
38
39
39
40
40
41
41
42
42
43
44
45
46
47
48
49
51
52
53
54
55
67
67
73
75
75
75
75
75
76
76
78
92
94A
94
95
96
97
98
99
100
102
103
104
101
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 420-00294 | 420-00294 | VALVE, CONTROL | |
| 18 | C0001-33015 | Cap | |
| 19 | C0111-31287 | SPOOL | |
| 20 | 21111-30702 | Seat, spring | |
| 21 | T1461-19008 | Spring | |
| 22 | 21011-30576 | Spool end | |
| 23 | 95111-02600 | O-ring | |
| 24A | C011B-50263 | Arm regen assy | |
| 24 | T1152-27503 | Plug | |
| 25 | 95113-02400 | O-ring | |
| 26 | T1461-14002 | Spring | |
| 27 | C0112-51203 | Spool | |
| 28 | SLEEVE | Sleeve | |
| 29 | PISTON | Piston, control | |
| 30 | 95113-01600 | O-ring | |
| 31 | 95712-01600 | Ring, back-up | |
| 34 | T1411-28001 | Popet | |
| 35 | T1461-19007 | Spring | |
| 36 | 95113-03200 | O-ring | |
| 37 | T1631-00006 | Flange | |
| 38 | 21111-54501 | Popet | |
| 39 | 21111-56501 | Spring | |
| 40 | 21113-50803 | Spacer assy | |
| 41 | 95113-00600 | O-ring | |
| 42 | 95113-00400 | O-ring | |
| 43 | T1631-00007 | Flange | |
| 44 | T1411-28003 | Popet | |
| 45 | T1461-25001 | Spring | |
| 46 | 21001-90227 | Plug | |
| 47 | 21001-00036 | O-ring | |
| 48 | 21011-30644 | Spring | |
| 49 | T1411-19003 | Popet | |
| 51 | T1411-28004 | Popet | |
| 52 | T1631-00004 | Flange | |
| 53 | T1311-46001 | Spacer | |
| 54 | 95121-02500 | O-ring | |
| 55 | 95722-02500 | Ring, back-up | |
| 67 | C0113-55501 | Anti-drift valve assy | |
| 73 | 92703-10551 | Bolt, socket | |
| 75 | 92703-10401 | Bolt, socket | |
| 76 | 92703-10701 | Bolt, socket | |
| 78 | 92703-06201 | Bolt, socket | |
| 92 | 21003-00393 | Plug assy | |
| 94A | 420-00309 | BOOM PRIORITY VALVE | |
| 94 | 21001-90364 | Plug | |
| 95 | 21111-52233 | Piston | |
| 96 | C0001-57006 | Body | |
| 97 | 21111-52232 | Piston | |
| 98 | 21111-56525 | Spring | |
| 99 | T1331-28003 | Sleeve | |
| 100 | 21113-50805 | Popet assy | |
| 102 | 21001-00213 | O-ring | |
| 103 | 95712-01200 | Ring, back-up | |
| 104 | 95113-01200 | O-ring | |
| 101 | 92703-10901 | Bolt, socket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
