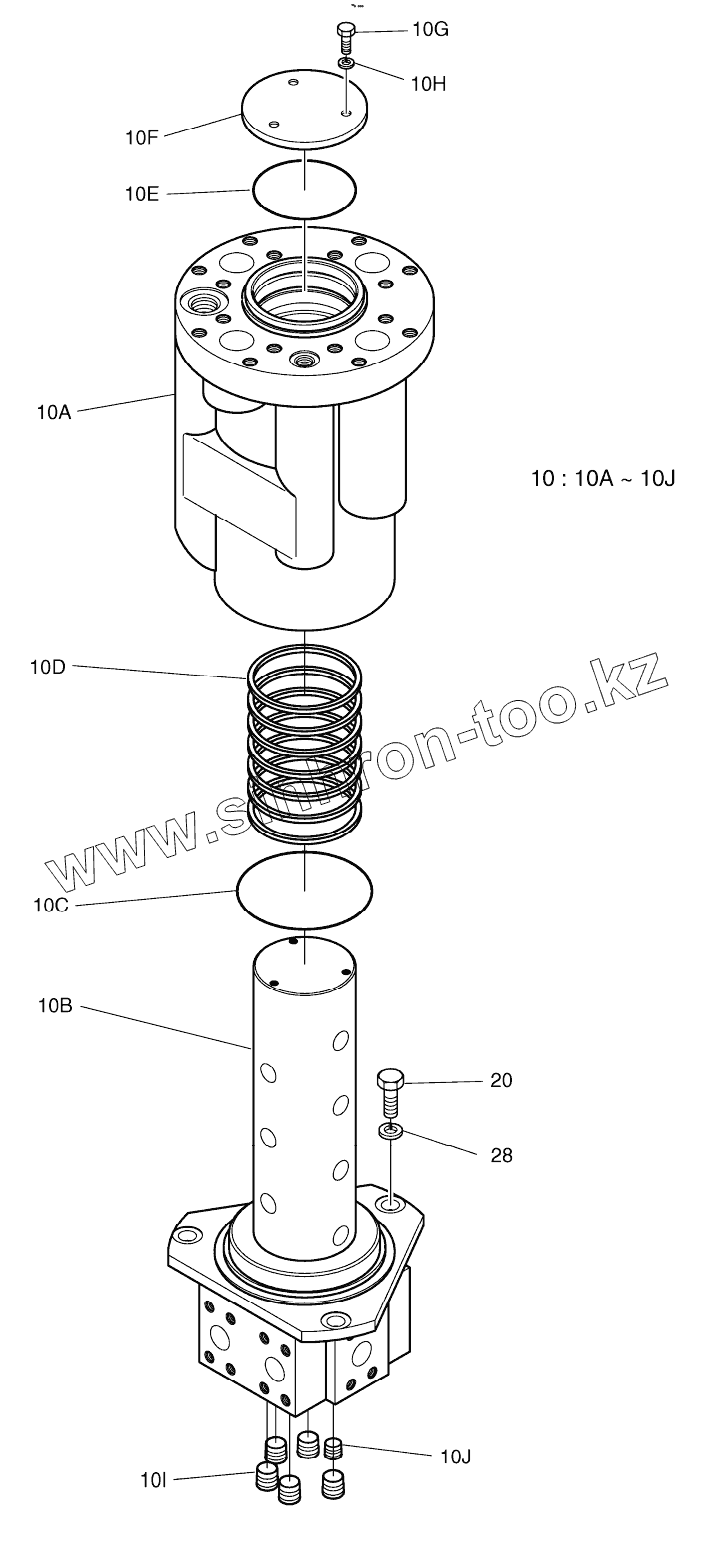

10
10A
10A
10B
10C
10D
10E
10F
10G
10H
10I
10J
10J
20
20
28
2480-9405BKT
Позиция на иллюстрации
Заводской номер детали
Название детали
604-00129
604-00129
TRACK ASSY
10
2480-9405B
JOINT, CENTER
10A
03C271-2
BODY
10B
03C272-4
SPINDLE
10C
E6301581
O-RING
10D
E5430420
SEAL, SLIPPER
10E
E6490049
O-RING
10F
03C273-1
COVER
10G
E0020335
BOLT
10H
E3110092
WASHER;SPRING
10I
E1500050
PLUG;HEX SOCKET
10J
E1500030
PLUG;HEX.
20
S0521251
Bolt
20
S0521261
BOLT
28
S5102901
WASHER;SPRING
2480-9405BKT
2480-9405BKT
SEAL KIT, CENTER JOINT
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
