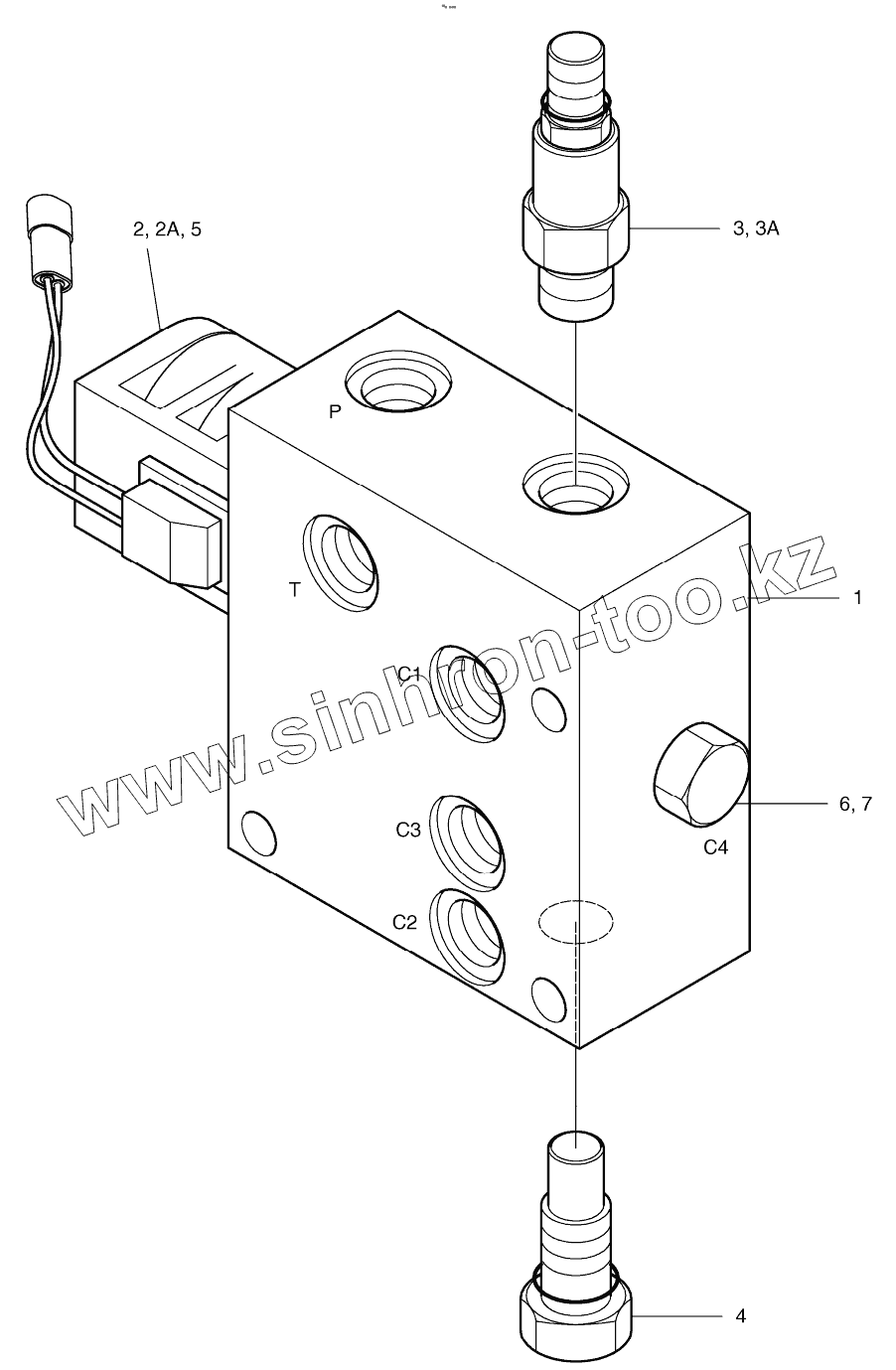

420-00340
420-00340A
420-00340B
1
2
2
2A
2A
3
3A
4
5
6
7
Позиция на иллюстрации
Заводской номер детали
Название детали
420-00340
420-00340
VALVE;PACKAGE
420-00340A
420-00340A
VALVE;PACKAGE
420-00340B
420-00340B
VALVE;PACKAGE
1
BODY
Body
2
DF-S3A-00
SOLENOID SPOOL
2
TF-S3A-00
SOLENOID SPOOL
2A
DF-S3A-S-01
SEAL KIT
2A
TF-S3A-S-01
SEAL KIT
3
PBDB-LNN
VALVE;REDUCING
3A
990-011-007
SEAL KIT
4
CSAB-XXN
VALVE;SHUTTLE
5
VDL24
COIL
6
2181-1950D1
PLUG
7
S8000111
O-RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
