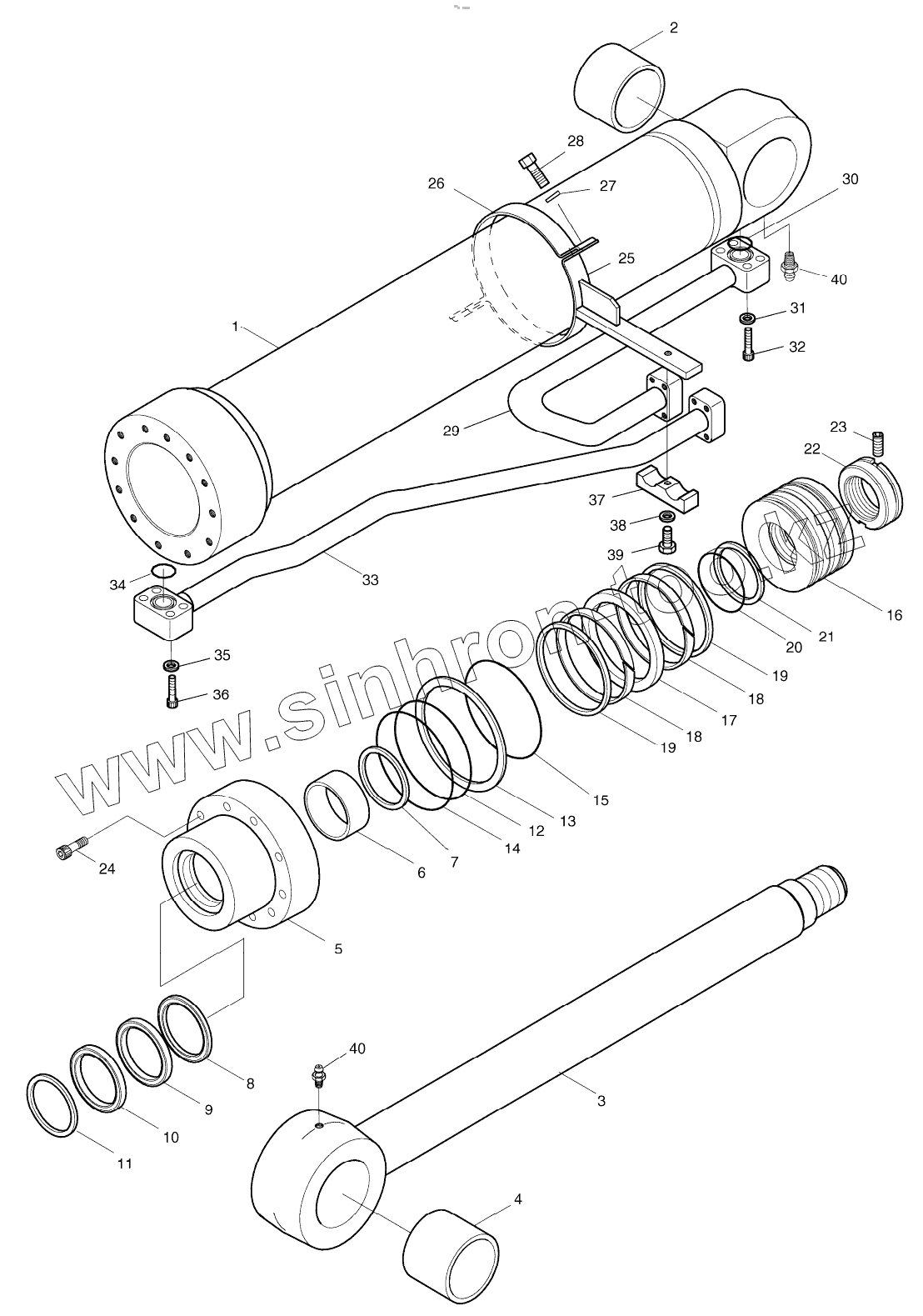

Каталог запасных частей к технике: Doosan S340LC-V. BOOM CYLINDER (R.H.)
2440-9278E
2440-9279ВКТ
2440-9279ВКТ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2440-9278E | 2440-9278E | CYLINDER, BOOM (R.H.) | |
| 2440-9279ВКТ | 2440-9279ВКТ | SEAL KIT, BOOM CYL. | |
| 1 | 53B424-2 | TUBE ASSY | |
| 2 | 00B101-0 | BUSH | |
| 3 | 53B428-1 | ROD ASSY | |
| 4 | 00B101-0 | BUSH | |
| 5 | 53B433-1 | COVER, ROD | |
| 6 | E8412283 | Du-bush | |
| 7 | 00M315-0 | RING;RETAINING | |
| 8 | E5500320 | Seal, buffer | |
| 9 | E5303320 | U-packing | |
| 10 | E6020320 | Wiper, dust | |
| 11 | 00M498-0 | Ring, retaining | |
| 12 | E6311781 | O-RING | |
| 13 | 53A359-0 | RING, BACK UP | |
| 14 | E6490060 | O-RING | |
| 15 | 00C311-0 | RING, CUSHION | |
| 16 | 53B430-0 | PISTON | |
| 17 | E5130340 | SEAL, SLIPPER | |
| 18 | 00Z111-0 | RING, WEAR | |
| 19 | 00R103-0 | RING, SLYD | |
| 20 | E6311441 | O-ring | |
| 21 | 53B441-0 | Ring, back up | |
| 22 | 53B432-0 | Nut, piston | |
| 23 | E1330544 | SCREW | |
| 24 | E0502439 | BOLT, HEX SOCKET | |
| 25 | 53B438-1 | PIPE BAND ASSY | |
| 26 | 03B810-0 | BAND, PIPE | |
| 27 | E3110102 | WASHER;SPRING | |
| 28 | E0020673 | BOLT;HEX. | |
| 29 | 53B265-2 | PIPE ASSY-H | |
| 30 | E6300761 | O-ring | |
| 31 | E3110112 | WASHER;SPRING | |
| 32 | E0501546 | Bolt, socket | |
| 33 | 53B436-0 | PIPE ASSY-R | |
| 34 | E6300761 | O-ring | |
| 35 | E3110112 | WASHER;SPRING | |
| 36 | E0501566 | BOLT, HEX SOCKET | |
| 37 | 00C260-0 | CLAMP, PIPE | |
| 38 | Е3110112 | WASHER, SPRING | |
| 39 | Е0021023 | BOLT, HEX | |
| 40 | Е8841022 | NIPPLE, GREASE |
