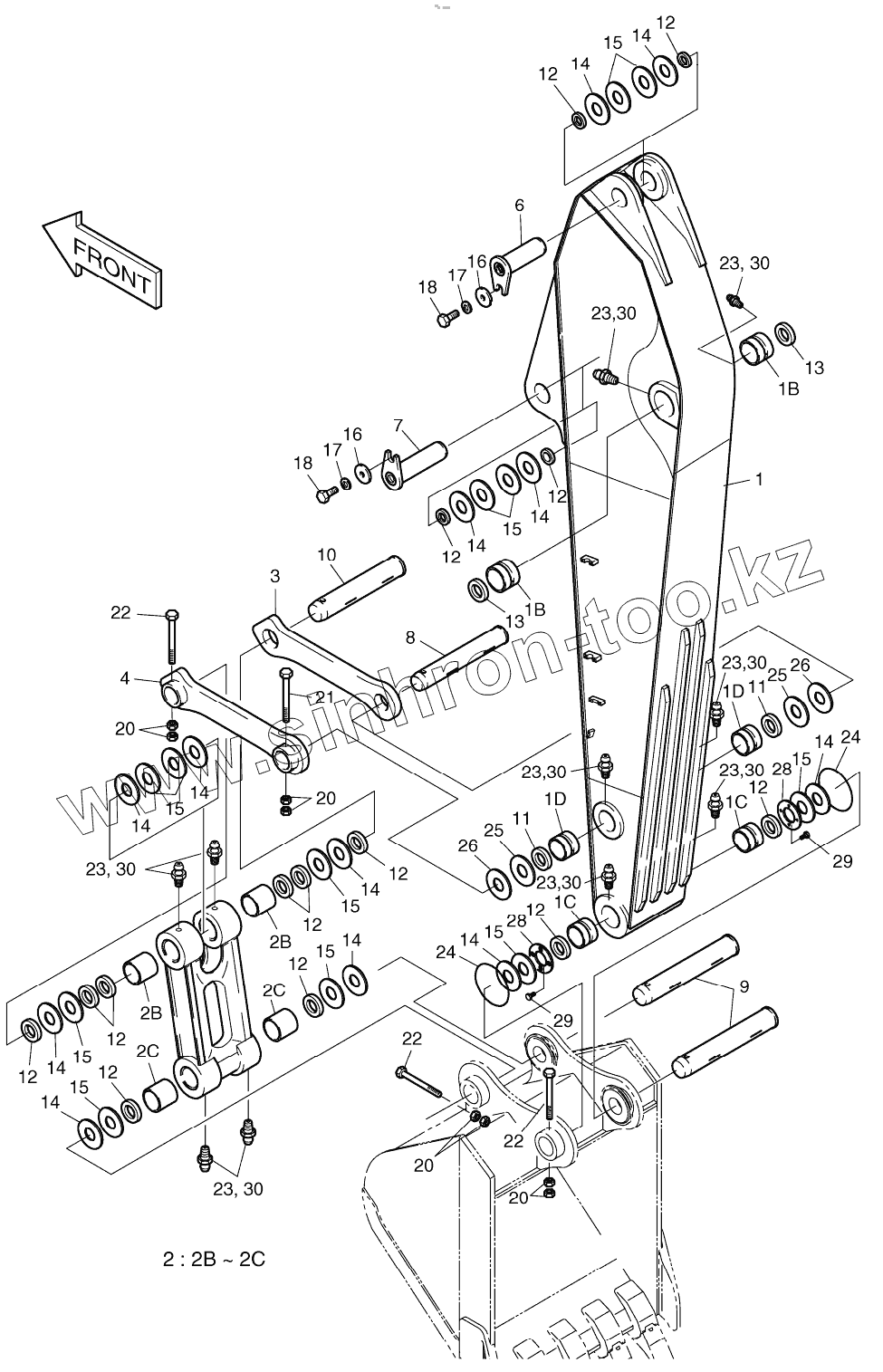

Каталог запасных частей к технике: Doosan S340LC-V. ARM - 3.2m
2701-1568A
2701-1568A
1
1
1
1
1
1
1B
1B
1C
1C
1D
1D
1D
1D
1D
1D
2
2
2B
2B
2B
2B
2B
2B
2B
2B
2C
2C
2C
3
4
6
7
8
9
10
11
11
12
12
12
12
12
12
12
12
12
12
12
12
13
13
14
14
14
14
14
14
14
14
14
14
14
14
15
15
15
15
15
15
15
15
15
16
16
17
17
18
18
20
20
20
20
21
22
22
22
23
23
23
23
23
23
23
23
24
24
25
25
26
26
28
28
28
28
29
29
30
30
30
30
30
30
30
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2701-1568A | 2701-1568A | ARM ASSY | |
| 1 | 2701-1569J | ARM SUB ASSY-3.2m | |
| 1 | 2701-1569K | ARM SUB ASSY-3.2m | |
| 1 | 2701-1569L | ARM SUB ASSY-3.2m | |
| 1 | 2701-1569M | ARM SUB ASSY-3.2m | |
| 1 | 2701-1569N | ARM SUB ASSY-3.2m | |
| 1 | 2701-1569P | ARM SUB ASSY-3.2m | |
| 1B | 110-00173 | BUSHING | |
| 1C | 110-00203 | BUSHING | |
| 1D | 110-00170 | BUSHING | |
| 1D | 2110-1376A | BUSHING | |
| 2 | 2155-1347C | PUSH LINK ASSY | |
| 2 | 2155-1347E | PUSH LINK ASSY | |
| 2B | 110-00174 | BUSHING | |
| 2B | 2110-1377A | BUSHING | |
| 2C | 2110-1378A | BUSHING | |
| 3 | 2155-1349A | LINK, GUIDE (R.H) | |
| 4 | 2155-1350A | LINK, GUIDE (L.H) | |
| 6 | 2123-2031C | PIN | |
| 7 | 2123-2356A | PIN | |
| 8 | 2123-2351A | PIN | |
| 9 | 2123-2352A | PIN | |
| 10 | 2123-2353A | PIN | |
| 11 | 2180-1106BD6 | Seal, dust | |
| 12 | 2180-1106BD14 | SEAL;DUST | |
| 13 | 2180-1106BD15 | SEAL, DUST | |
| 14 | 2114-1059D73 | Shim | |
| 15 | 2114-1059D72 | Shim | |
| 16 | 2116-1060D5 | STOPPER | |
| 17 | S5102903 | WASHER;SPRING | |
| 18 | S0521366 | BOLT M16X2.0X35 | |
| 20 | S4013133 | Nut | |
| 21 | S0571866 | Bolt | |
| 22 | S0571966 | BOLT | |
| 23 | S6710041 | NIPPLE;GREASE | |
| 24 | 180-00077D7 | O-RING | |
| 25 | 2114-1059D219 | SHIM 1.0T | |
| 26 | 2114-1059D234 | SHIM 1.6T | |
| 28 | 114-00424 | SPACER | |
| 28 | 114-00424А | SPACER | |
| 29 | 120-00223 | BOLT | |
| 30 | 160-00020 | CAP;GREASE NIPPLE |
