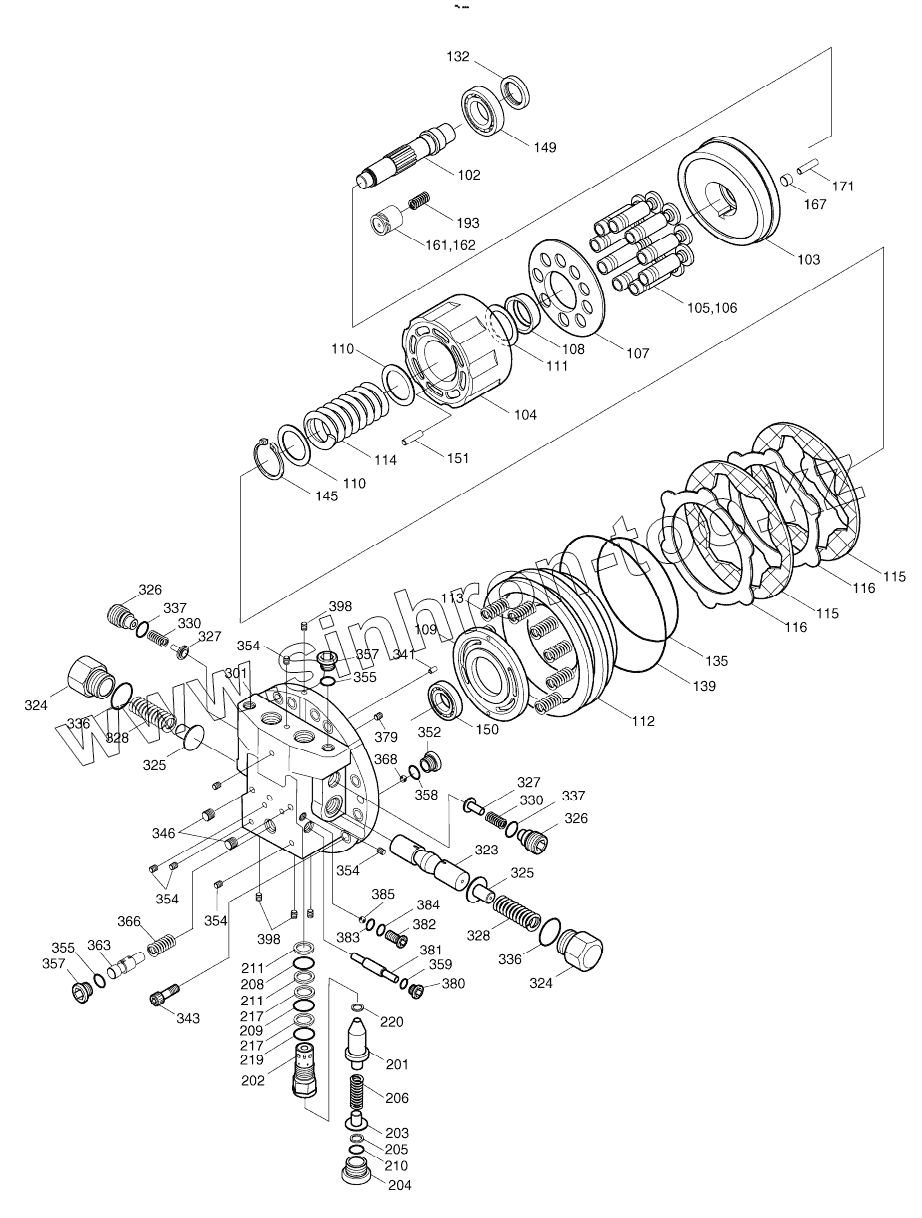

Каталог запасных частей к технике: Doosan S225LC-V. TRAVEL MOTOR
2401-9287KT
2401-9287KT
718553
716680
716694
716689
102
103
104
105
106
107
108
109
110
110
111
112
113
114
115
115
116
116
132
135
139
145
149
150
151
161
162
167
171
193
201
202
203
204
205
206
208
209
210
211
211
217
217
219
220
301
323
324
324
325
325
326
326
327
327
328
328
330
330
336
336
337
337
341
343
346
352
354
354
354
354
355
355
357
357
358
359
363
366
368
379
380
381
382
383
384
385
398
398
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 718191 | 718191 | TRAVEL MOTOR | |
| 2401-9287KT | 2401-9287KT | SEAL KIT | |
| 718553 | 718553 | REAR FLANGE KIT | |
| 716680 | 716680 | RELIEF VALVE ASSY | |
| 716694 | 716694 | PISTON KIT;2 SPEED | |
| 716689 | 716689 | PISTON ASS'Y | |
| 2401-9287A | 2401-9287A | TRAVEL DEVICE | |
| 102 | 131155 | SHAFT | |
| 103 | 133591 | PLATE, SWASH | |
| 104 | 131149 | BLOCK, CYLINDER | |
| 105 | 131147 | PISTON | |
| 106 | 131148 | SHOE | |
| 107 | 131150 | PLATE;RETAINER | |
| 108 | 132323 | BALL;THRUST | |
| 109 | 132324 | PLATE, TIMING | |
| 110 | 116976 | WASHER | |
| 111 | 131356A | COLLAR(WASHER) | |
| 112 | 131158 | PISTON;P.B | |
| 113 | 131159 | SPRING | |
| 114 | 131153 | SPRING | |
| 115 | 131160 | PLATE;FRICTION | |
| 116 | 116979 | PLATE;MATING | |
| 132 | 215823 | SEAL;OIL | |
| 135 | 228569 | O-RING | |
| 139 | 228570 | O-RING | |
| 145 | 215824 | RING;SNAP | |
| 149 | 229127 | BEARING, BALL | |
| 150 | 229128 | BEARING, BALL | |
| 151 | 131154 | ROLLER | |
| 161 | 131184 | PISTON | |
| 162 | 131185 | SHOE | |
| 167 | 131161 | PIVOT | |
| 171 | 131146 | PIN;PARALLEL | |
| 193 | 123744 | SPRING | |
| 201 | 131178 | VALVE | |
| 202 | 131179 | SLEEVE | |
| 203 | 131180 | RETAINER;SPRING | |
| 204 | 131181 | PLUG | |
| 205 | 131182 | SHIM | |
| 206 | 131183 | SPRING | |
| 208 | 201706 | O-RING | |
| 209 | 206597 | O-RING | |
| 210 | 201710 | O-RING | |
| 211 | 228576 | RING;BACK UP | |
| 217 | 228577 | RING;BACK UP | |
| 219 | 201729 | O-RING | |
| 220 | 228578 | SEAL;PISTON | |
| 301 | 132622 | FLANGE, REAR | |
| 323 | 132318 | SPOOL | |
| 324 | 204548 | PLUG | |
| 325 | 131167 | STOPPER | |
| 326 | 104126A | PLUG | |
| 327 | 105637 | VALVE | |
| 328 | 211668B | SPRING | |
| 330 | 123743 | SPRING | |
| 336 | 201733 | O-RING | |
| 337 | 201719 | O-RING | |
| 341 | 131177 | PIN;PARALLEL | |
| 343 | 200709 | BOLT;SOCKET | |
| 346 | 108061A | PLUG, PT | |
| 352 | 131170 | PLUG;RO | |
| 354 | 224308 | PLUG;PT | |
| 355 | 201710 | O-RING | |
| 357 | 131145 | PLUG;RO | |
| 358 | 201689 | O-RING | |
| 359 | 207424 | O-RING 1BP14 | |
| 363 | 131173 | SPOOL;2 SPEED | |
| 366 | 131174 | SPIRNG | |
| 368 | 200162 | BALL;STEEL | |
| 379 | 228574 | FILTER | |
| 380 | 131186 | PLUG | |
| 381 | 131165 | PISTON | |
| 382 | 131187 | PLUG | |
| 383 | 201749 | O-RING | |
| 384 | 225118 | O-RING 1BP8 | |
| 385 | 228582 | BALL;STEEL | |
| 397 | 116482 | ORIFICE | |
| 398 | 108064A | PLUG, PT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
