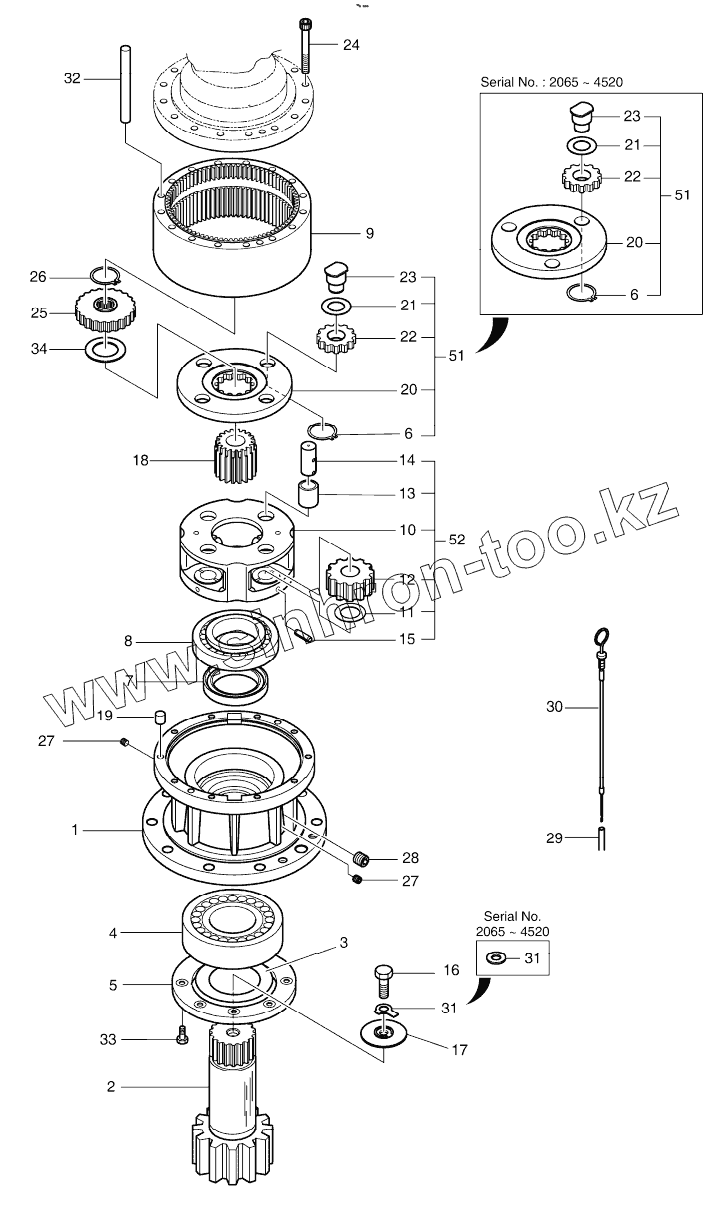

Каталог запасных частей к технике: Doosan S225LC-V. SWING REDUCTION GEAR
130422-00001
K1004160A
K1004160A
K1004160A
S6500380
S6500380
130426-00004
130426-00004
130426-00004
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
20
20
21
21
21
21
21
21
22
22
22
22
23
23
23
23
24
24
25
25
26
27
27
28
29
30
31
31
31
31
31
31
32
33
34
51
51
51
51
51
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 130422-00001 | 130422-00001 | Gear, ring | |
| K1004160A | K1004160A | Gear, reduction | |
| S6500380 | S6500380 | RING;SNAP | |
| 130426-00004 | 130426-00004 | Gear assy, reduction | |
| 1 | 2423-1496G | CASING | |
| 2 | 2112-1248E | Shaft, drive | |
| 3 | 2412-1040 | PLATE | |
| 4 | 2109-9033 | BEARING;ROLLER | |
| 5 | 2891-1421B | PLATE;COVER | |
| 6 | S6500380 | RING;SNAP | |
| 7 | 2180-1254 | SEAL;OIL | |
| 8 | 109-00174 | Bearing, roller | |
| 9 | 104-00051A | Gear, ring | |
| 10 | 230-00061 | Carrier no.2 | |
| 11 | 2114-1901A | WASHER;THRUST NO.2 | |
| 12 | 104-00050 | Gear, planet no.2 | |
| 13 | 110-00219 | Bush no.2 | |
| 14 | 123-00437A | Pin no.2 | |
| 15 | S5741341 | PIN;SPRING | |
| 16 | S0121061 | BOLT | |
| 17 | 114-00548 | Washer, thrust no.3 | |
| 18 | 104-00048 | Gear, sun no.2 | |
| 19 | 2705-1030 | PIN;KNOCK | |
| 20 | 100502-00001 | Carrier no.1 | |
| 20 | 230-00060A | Carrier no.1 | |
| 21 | 114-00527 | Washer, thrust no.1 | |
| 21 | 114-00527 | Washer, thrust no.1 | |
| 22 | 104-00049A | Gear, planet no.1 | |
| 22 | 130424-00001 | Gear, planet no.1 | |
| 23 | 123-00435A | Pin assy no.1 | |
| 23 | 120501-00009 | Pin assy, no1 | |
| 24 | S2217471 | BOLT;SOCKET | |
| 24 | 120107-00002 | Bolt, hex socket | |
| 25 | 104-00047A | Gear, sun no.1 | |
| 25 | 130425-00001 | Gear, sun, no1 | |
| 26 | S6500450 | RING;SNAP | |
| 27 | 2181-1116D2 | PLUG | |
| 28 | 2181-1116D4 | PLUG | |
| 29 | 2140-1406 | PIPE;LEVEL GAUGE | |
| 30 | 2119-1065 | GAUGE;LEVEL | |
| 31 | S5231090 | WASHER;DOUBLE TAB | |
| 31 | 120811-00001 | Washer, double tab | |
| 32 | 140-01374А | PIPE | |
| 33 | 120-00144 | BOLT | |
| 34 | 120816-00001 | Washer, thrust | |
| 51 | К90О6810 | CARRIER N01 ASSY | |
| 51 | 100502-00022 | Carrier assy, no.1 | |
| 52 | К90О6811 | CARRIER N02 ASSY |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
