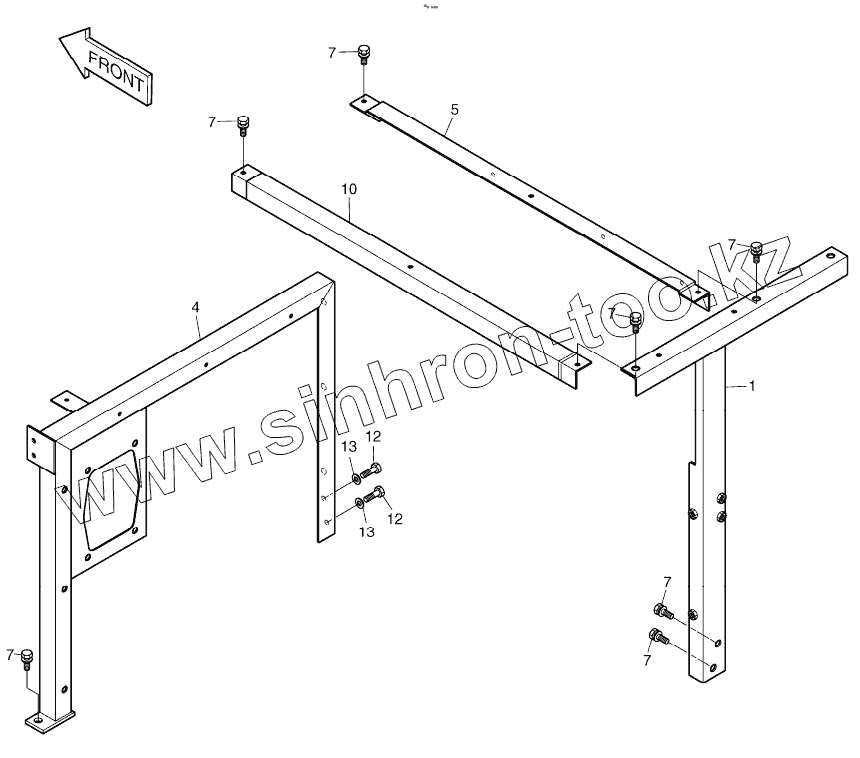

195-01772С
195-01772Е
1
4
5
7
7
7
7
7
7
7
10
12
12
13
13
Позиция на иллюстрации
Заводской номер детали
Название детали
195-01764А
195-01764А
SUPPORT ASSY
195-01772С
195-01772С
SUPPORT
195-01772Е
195-01772Е
SUPPORT
1
195-01769В
SUPPORT
4
195-01772В
SUPPORT
5
195-01773А
SUPPORT
7
2120-2196D9
BOLT;SET M12X1.75X25
10
195-01899А
SUPPORT
12
S0560553
BOLT M12X1.75X40
13
2114-1154
WASHER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
