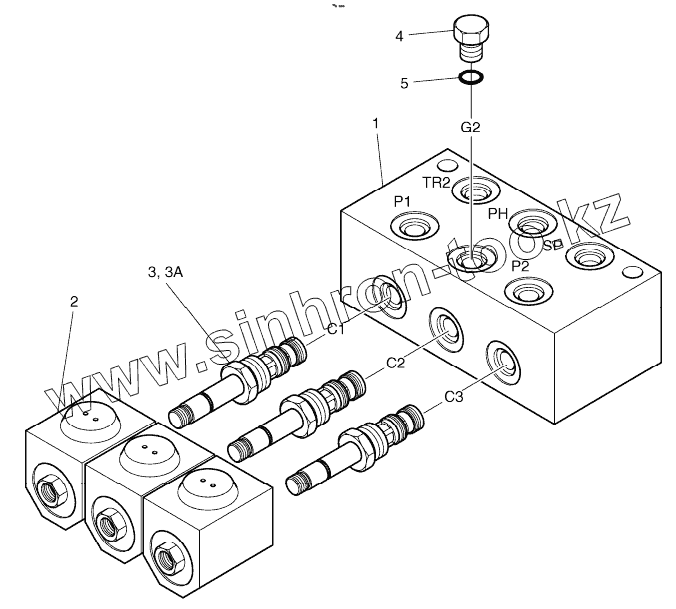

Каталог запасных частей к технике: Doosan S225LC-V. SOLENOID VALVE

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано DL220 (2010) DX140W (2017) DX225LC (2009) DX225LCA (2012) S225LC-V (2009) S340LC-V (2009) S500LC-V (2007) SOLAR 130W-V(1) (2017) SOLAR 130W-V(2) (2017) SOLAR 140W-V (2017) SOLAR 140W-V & S160W-V (2017) SOLAR 160W-V (2017) SOLAR 170W-V (2017) SOLAR 180W-V (2017) SOLAR 210W-V (2017) SOLAR 255LC-V (DI EXP) (2017) SOLAR 420LC-V (2017) Мини-погрузчик 430 Plus (2010) Мини-погрузчик 440 Plus (2010) Мини-погрузчик 450 Plus (2010) Мини-погрузчик 450 Plus (Tier3) (2010) Мини-погрузчик 460 Plus (2010) Мини-погрузчик 460 Plus (Tier3) (2010) Мини-погрузчик 470 Plus (2010) Экскаватор SOLAR 140LC-V (2010) Экскаватор SOLAR 175LC-V (2010)

Схема > Не выбрано CYLINDER BLOCK TIMING GEAR CASE FLYWHEEL HOUSING CRANK SHAFT CYLINDER HEAD VALVE MECHANISM OIL PUMP OIL FILTER OIL COOLER OIL PAN THERMOSTAT WATER PUMP AND COOLING FAN INTAKE AND EXHAUST MANIFOLD TURBO CHARGER AND OIL PIPE FUEL SYSTEM FUEL FILTER ALTERNATOR MOUNTING STARTER OVER HAUL GASKET KIT - TOP OVER HAUL GASKET KIT - ALL MAIN FRAME ENGINE MOUNTING RADIATOR RESERVE TANK MUFFLER CAC PIPING AIR CLEANER ASSY AIR CLEANER PUMP MOUNTING FUEL PIPING FUEL TANK SWING DEVICE ASSY OIL TANK OIL COOLER PIPING OIL COOLER PIPING OIL COOLER PIPING MAIN PIPING MAIN PIPING MAIN PIPING MAIN PIPING MAIN PIPING ENGINE CONTROL ASSY PILOT PIPING PILOT PIPING PILOT PIPING PILOT PIPING PILOT PIPING PILOT PIPING PILOT PIPING PILOT PIPING CONTROL STAND L.H. CONTROL STAND R.H. SEAT AND ELECTRIC BOX SEAT MOUNTING EUROPE AND USA SEAT MOUNTING EUROPE AND USA SEAT MOUNTING - EXCEPT EUROPE AND USA SEAT - EXCEPT EUROPE AND USA DUCT COVER ASSY HEATER COVER ASSY CABIN MOUNT ASSY CABIN ASSY CABIN CABIN CABIN CABIN CABIN SUPPORT SUPPORT COVER COVER COVER COVER COVER BAFFLE ACOUSTIC FOAM UNDER COVER LUBRICATION PIPING ELECTRIC BOX ASSY ELECTRIC BOX ASSY - ELECTRIC PARTS ELECTRIC PARTS - GAUGE AND SWITCH PANEL ELECTRIC PARTS - STAND R.H. ELECTRIC PARTS - STAND L.H. ELECTRIC PARTS - CABIN ELECTRIC PARTS - BATTERY ELECTRIC PARTS - ENGINE ELECTRIC PARTS - RELATED PARTS ELECTRIC WIRING (1) - BATTERY ELECTRIC WIRING (2) - ENGINE ELECTRIC WIRING (1) - RELATED PARTS AIR CONDITIONER AIR CONDITIONER - AIRCON UNIT HEATER PIPING TRACK FRAME TRAVEL DEVICE IDLER TRACK SPRING TRACK SPRING UPPER ROLLER LOWER ROLLER LOWER ROLLER TRACK SHOE ASSY - 600G TRACK SHOE ASSY - 600G CENTER JOINT TRAVEL PIPING COVER TRAVEL PIPING BOOM - 5.7m ARM - 2.9m BUCKET ASSY - 0.8m3 FRONT PIPING LUBRICATION PIPING MAIN PUMP REGULATOR GEAR PUMP SWING MOTOR SWING REDUCTION GEAR SWING REDUCTION GEAR TRAVEL MOTOR TRAVEL MOTOR TRAVEL REDUCTION GEAR TRAVEL REDUCTION GEAR CONTROL VALVE CONTROL VALVE CONTROL VALVE CONTROL VALVE - ARTI.BOOM CONTROL VALVE - ARTI.BOOM REMOTE CONTROL VALVE REMOTE CONTROL VALVE REMOTE CONTROL VALVE - SWITCH PEDAL VALVE PEDAL VALVE - ARTI.BOOM SOLENOID VALVE PILOT VALVE BOOM CYLINDER (L.H) BOOM CYLINDER (R.H) ARM CYLINDER BUCKET CYLINDER BUCKET CYLINDER - 6.2m ARM BOOM CYLINDER (L.H) - LOCK VALVE BOOM CYLINDER (R.H) - LOCK VALVE ARM CYLINDER - LOCK VALVE BOOM CYLINDER (L.H) - ARTI.BOOM BOOM CYLINDER (R.H) - ARTI.BOOM ARTI.BOOM CYLINDER BOOM CYLINDER(L.H.) - LOCK VALVE FOR ARTI.BOOM BOOM CYLINDER(R.H.) - LOCK VALVE FOR ARTI.BOOM ARTI.BOOM CYLINDER - LOCK VALVE OPTION VALVE BREAKER VALVE CONTROL VALVE - KVMG270 CONTROL VALVE - KVMG270 CONTROL VALVE - KVMG270 TOOLS SPACE PARTS CABIN NAME PLATE - EUROPE NAME PLATE - EUROPE CABIN NAME PLATE - ENGLISH NAME PLATE - ENGLISH FUEL FILLER PUMP ASSY DOUBLE FUEL FILTER ASSY NOISE FILTER ASSY - EUROPE CABIN LAMP ASSY 6 - LAMP & BEACON (TELESCOPIC) ROTATING BEACON TRAVEL/SWING ALARM ASSY TRAVEL ALARM ASSY RETURN FILTER PRESS SWITCH ALTERNATOR OVERLOAD WARNING ASSY FLOOR PLATE - TILTING SUN VISOR ASSY SUN ROOF ASSY AIR CLEANER ASSY JOYSTICK VALVE ASSY 3 - SWITCH CABIN LOW GUARD F.O.G.S ASSY TRACK SHOE ASSY - 700G TRACK SHOE ASSY - 700G TRACK SHOE ASSY - 800G TRACK SHOE ASSY - 800G TRACK SHOE ASSY - 900G TRACK SHOE ASSY - 900G TRACK SHOE ASSY - 910T SEALED TRACK SHOE - 600G SEALED TRACK SHOE - 700G SEALED TRACK SHOE - 800G SEALED TRACK SHOE - 900G BOOM - 5.2m BOOM PIPING - 5.2m LUBRICATION PIPING ARM - 2.0m ARM - 2.4m ARM - 3.5m ARM PIPING - ARM 2.0m ARM PIPING - ARM 2.4m ARM PIPING - ARM 3.5m BUCKET ASSY - 0.45m3 BUCKET ASSY - 0.7m3 BUCKET ASSY - 0.8m3 H.D TYPE BUCKET ASSY - 0.9m3 BUCKET ASSY - 1.0m3 BUCKET ASSY - 1.1m3 BUCKET ASSY - 0.67m3(36") - SIDE PIN BUCKET ASSY - 0.67m3(36") - VERTICAL PIN BUCKET ASSY - 0.80m3(42") - SIDE PIN BUCKET ASSY - 0.80m3(42") - VERTICAL PIN BUCKET ASSY - 0.95m3(48") - SIDE PIN BUCKET ASSY - 0.095m3(48") - VERTICAL PIN BUCKET ASSY - 1.1m3(54") - SIDE PIN BUCKET ASSY - 1.1m3(54") - VERTICAL PIN BUCKET ASSY - 1.17m3(57") - SIDE PIN BUCKET ASSY - 1.17m3(57") - VERTICAL PIN BUCKET ASSY - 1.31m3(63") - SIDE PIN BUCKET ASSY - 1.31m3(63") - VERTICAL PIN BOOM - 8.5m ARM ASSY - 6.2m BUCKET - 0.35m - LONG FRONT BOOM PIPING - 8.5m ARM PIPING - ARM 6.2m LUBRICATION PIPING BUCKET ASSY - 0.38m - DITCH CLEANING BUCKET ASSY - 0.46m - DITCH CLEANING COUNTER WEIGHT - LONG FRONT LOCK VALVE PIPING - BOOM 5.2m LOCK VALVE PIPING - BOOM 5.7m LOCK VALVE PIPING - BOOM 8.5m MAIN PIPING - BREAKER PILOT PIPING - BREAKER BOOM PIPING - BREAKER - BOOM 5.2m BOOM PIPING - BREAKER - BOOM 5.7m ARM PIPING - ARM 2.0m (ONE AND TWO WAY) ARM PIPING - ARM 2.4m (ONE AND TWO WAY) ARM PIPING - ARM 2.9m (ONE AND TWO WAY) ARM PIPING - ARM 3.5m (ONE AND TWO WAY) NAME PLATE - ONE AND TWO WAY PILOT PIPING (CABIN) - ROTATING AND TILTING MAIN PIPING - ROTATING AND TILTING BOOM PIPING - ROTATING AND TILTING ARM PIPING - 2.9m ROTATING AND TILTING TROPICAL COVER ARTI.BOOM ASSY MAIN PIPING - ARTI.BOOM PILOT PIPING - ARTI. BOOM FLOOR ASSY - ARTI.BOOM FLOOR ASSY - ARTI.BOOM AND TILT FRONT PIPING - ARTI.BOOM ARM PIPING - ARM 2.0m (ARTI.BOOM) ARM PIPING - ARM 2.4m (ARTI.BOOM) ARM PIPING - ARM 2.9m (ARTI.BOOM) FRONT LUBRICATION PIPING - ARTI.BOOM LOCK VALVE PIPING - ARTI.BOOM MAIN PIPING - ONE AND TWO WAY (ARTI.BOOM) FRONT PIPING - ONE AND TWO WAY (ARTI.BOOM) ARM PIPING - ARM 2.0m 1 AND 2 WAY (ARTI.BOOM) ARM PIPING - ARM 2.4m 1 AND 2 WAY (ARTI.BOOM) ARM PIPING - ARM 2.9m 1 AND 2 WAY (ARTI.BOOM) N CLAMSHELL PIPING NOISE KIT - EUROPE F.O.G.S GUARD - TURBO

1

2

3

3

3А

3А

4

5

Позиция на иллюстрации	Заводской номер детали		Название детали
426-00163	426-00163		Solenoid valve
426-00163А	426-00163А		SOLENOID VALVE
1	BLOCK		Block
2	VDL24		COIL
3	DF-S3A-00		SOLENOID SPOOL
3	TF-S3A-00		SOLENOID SPOOL
3А	DF-S3A-S-01		SEAL KIT
3А	TF-S3A-S-01		SEAL KIT
4	2181-1950D1		PLUG
5	S8000111		O-RING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
