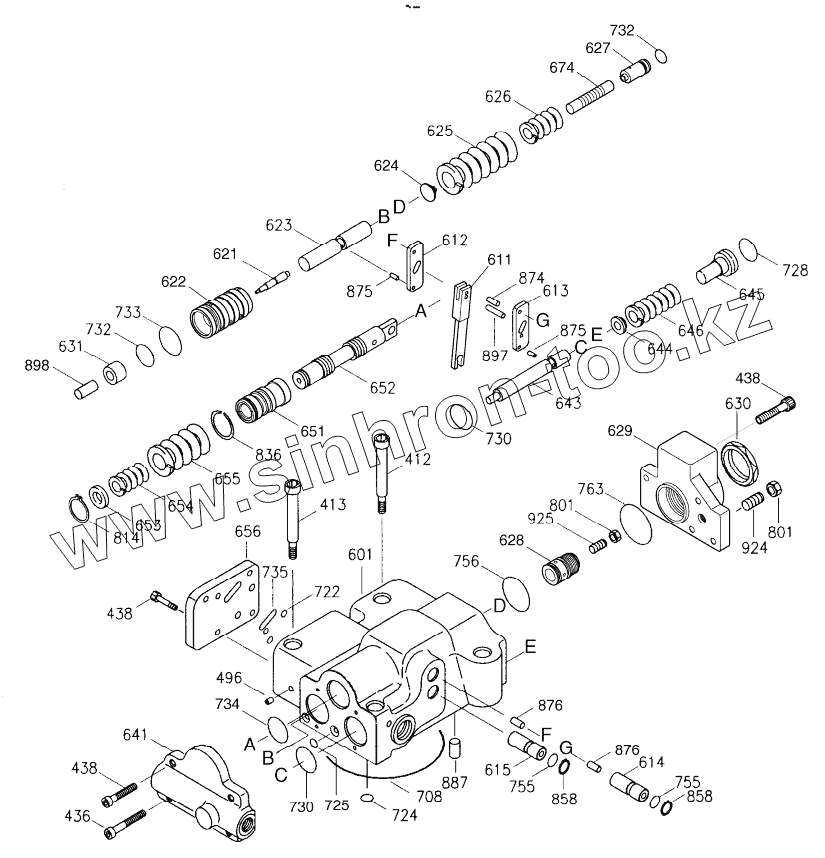

Каталог запасных частей к технике: Doosan S225LC-V. REGULATOR
412
413
436
438
438
438
496
601
611
612
613
614
615
621
622
623
624
625
626
627
628
629
630
631
641
643
644
645
646
651
652
653
654
655
656
674
708
722
724
725
728
730
730
732
732
733
734
735
755
755
756
763
801
801
814
836
858
858
874
875
875
876
876
887
897
898
924
925
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 722473 | 722473 | REGULATOR | |
| 412 | 200852 | BOLT;SOCKET M8X50L | |
| 413 | 205526 | BOLT;SOCKET M8X70L | |
| 436 | 200833 | BOLT;SOCKET M6X30L | |
| 438 | 200830 | BOLT;SOCKET M6X20L | |
| 496 | 134596 | PLUG | |
| 601 | 140783 | CASING | |
| 611 | 140790 | Lever, feed back | |
| 612 | 140787 | LEVER(1) | |
| 613 | 140788 | LEVER(2) | |
| 614 | 140795 | PLUG;SUPPORT | |
| 615 | 140796 | PLUG;ADJUST | |
| 621 | 113413A | PISTON;COMPEN | |
| 622 | 113414A | CASE;PISTON | |
| 623 | 113415 | ROD;COMPEN | |
| 624 | 113416 | SPRING;SEAT | |
| 625 | 133587 | Spring, outer | |
| 626 | 131659 | Spring, inner | |
| 627 | 120009 | RING;ADJUST(C) | |
| 628 | 120010 | SCREW;ADJUST(C) | |
| 629 | 140785 | COVER(C) | |
| 630 | 113396 | NUT;LOCK | |
| 631 | 141977 | SLEEVE, PF | |
| 641 | 115804 | COVER;PILOT | |
| 643 | 113406 | PISTON;PILOT | |
| 644 | 113431 | SPRING;SEAT(Q) | |
| 645 | 113436 | Ring, adjust | |
| 646 | 131663 | SPRING, PILOT | |
| 651 | 117387 | Sleeve | |
| 652 | 140786 | SPOOL(A) | |
| 653 | 113442 | SPRING;SEAT | |
| 654 | 131664 | SPRING;RETURN | |
| 655 | 131665 | SPRING;SET | |
| 656 | 113445 | COVER | |
| 674 | 120055 | PISTON;PF | |
| 708 | 201673 | O-RING 1BG-75 | |
| 722 | 201757 | O-RING | |
| 724 | 201765 | O-RING | |
| 725 | 201685 | O-RING 1BP-10 | |
| 728 | 201710 | O-RING | |
| 730 | 201718 | O-RING 1BP-22 | |
| 732 | 201706 | O-RING | |
| 733 | 201713 | O-RING | |
| 734 | 201654 | O-RING 1BG-25 | |
| 735 | 204458 | O-RING 1BP-12.5 | |
| 755 | 201689 | O-RING | |
| 756 | 201723 | O-RING 1BP-26 | |
| 763 | 201660 | O-RING 1BG-35 | |
| 801 | 212035 | NUT | |
| 814 | 204956 | RING;SNAP | |
| 836 | 215018 | RING;STOP | |
| 858 | 212036 | RING;SNAP | |
| 874 | 217841 | PIN | |
| 875 | 140793 | PIN | |
| 876 | 140792 | PIN | |
| 887 | 113394 | PIN | |
| 897 | 140794 | PIN | |
| 898 | 141975 | PISTON | |
| 924 | 202523 | SCREW;SET | |
| 925 | 113395 | SCREW;ADJUST(Qi) |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
