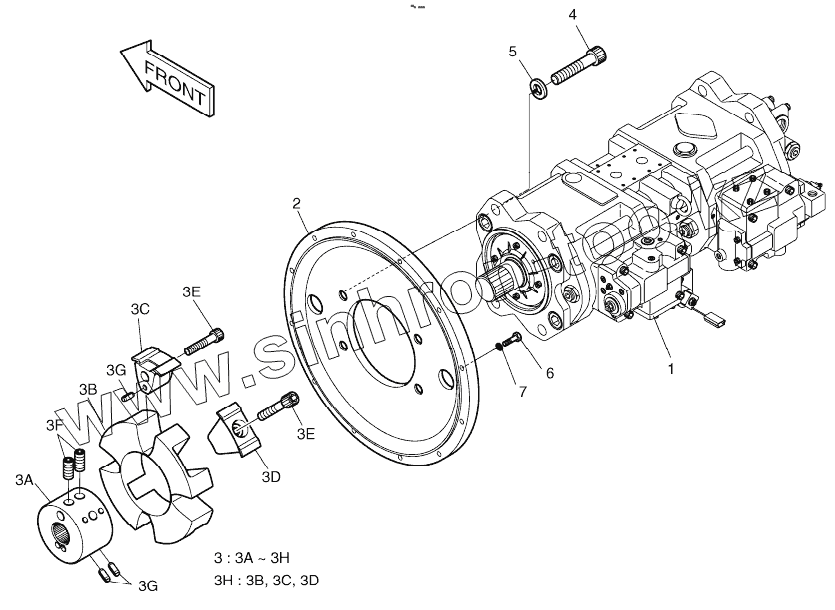

PUMP INSTALLATION
1
401-00356A
MAIN PUMP
2
229-00012A
Cover
3
2414-9008A
COUPLING
3A
HUB
Hub
3B
2474-7009
ELEMENT
3C
INSERT
Insert
3D
INSERT
Insert
3E
K9000422
SOCKET BOLT SET(8EA)
3F
BOLT
Bolt, clamping
3G
PIN
Pin, spring
3H
2474-7009K
ELEMENT KIT
4
S2227966
BOLT;SOCKET M20X2.5X65
5
S5111103
Washer, spring
6
S0512053
BOLT M10X1.5X25
7
S5102603
WASHER;SPRING M10
