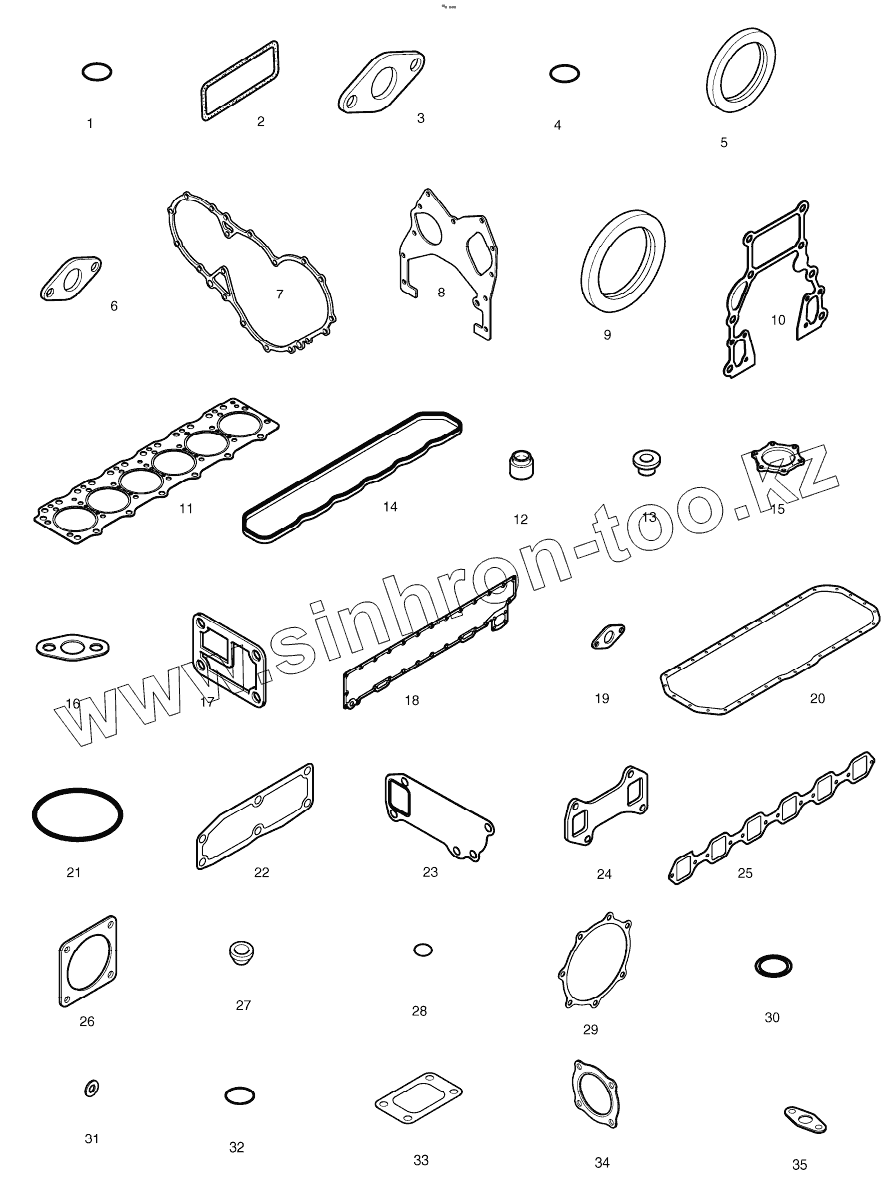

Каталог запасных частей к технике: Doosan S225LC-V. OVER HAUL GASKET KIT - ALL

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
65.99601-8027
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
35
Позиция на иллюстрации Заводской номер детали Название детали
65.99601-8027 65.99601-8027 Over haul gasket kit-all
1 06.56021-0106 O-RING;O/P DRIVE FLANGE
2 65.01901-0020 GASKET;PUSH ROD CHAMBER
3 65.05903A0013 GASKET;FLANGE
4 06.56021-0102 O-RING;RELIEF VALVE
5 65.01510-0001 SEAL;OIL(FRONT)
6 65.01903-0002C GASKET
7 65.01903B0003 GASKET;TIMING GEAR CASE COVER
8 65.01903B0004 GASKET;TIMING GEAR CASE(BLOCK)
9 65.01510-0101 SEAL;OIL(REAR)
10 65.01904-0021 GASKET;FLYWHEEL HOUSING
11 65.03901-0066A GASKET;CYLINDER HEAD
12 65.04902-0011A SEAL;VALVE STEM
12 65.04902-0015 SEAL;VALVE STEM
13 65.03905-0023A GASKET;CYLINDER HEAD COVER MOUNTIN
14 65.03905-0002B GASKET;CYLINDER HEAD COVER
15 65.03903-0001 PACKING;BREATHER PIPE
16 65.05903A0002 GASKET
17 65.05901C0004 GASKET
18 65.05902A0005 GASKET;OIL COOLER
19 65.05903A0001 GASKET
20 65.05904A0002 GASKET;OIL PAN
21 65.06904-0003 PACKING
22 65.06904A0004 GASKET
23 65.06901B0002 GASKET
24 65.08901-0028 GASKET;MANIFOLD EXHAUST
25 65.08902A0004 GASKET;INTAKE MANIFOLD
25 65.08902-0034 Gasket, intake manifold
26 65.09904-0008 GASKET
27 65.96507-0044B Ring, seal
28 65.96507-0050 RING;SEAL
29 65.11902A0001 GASKET;INJECTION PUMP
30 06.56180-0712 Ring
31 65.96507-0007 PACKING;PUSH ROD CHAMBER
32 65.96501-0032B O-ring
33 65.09901-0018A GASKET
34 65.09901-0020 GASKET
35 65.96601-0045A GASKET
35 65.96601-0067 Gasket
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
