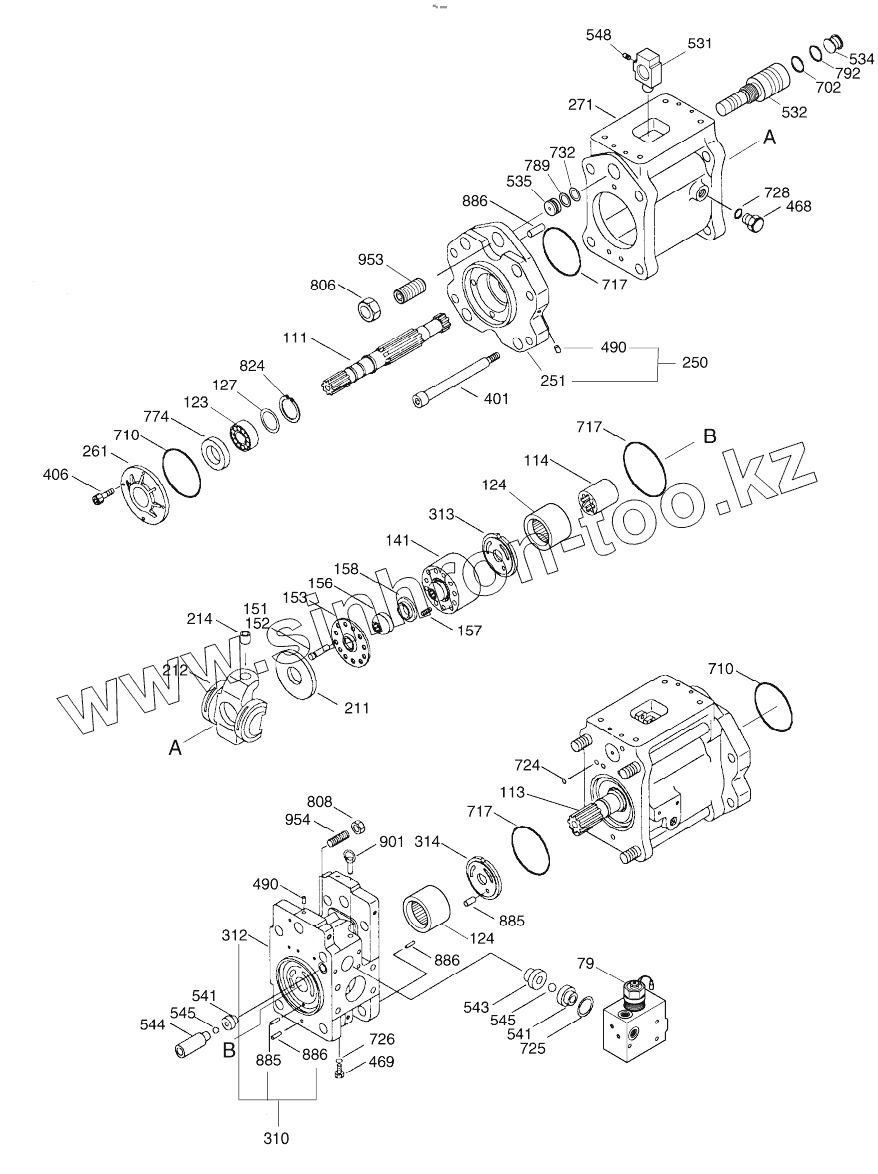

Каталог запасных частей к технике: Doosan S225LC-V. MAIN PUMP
2401-9223KT
704544A
704544A
704550A
717005
717005
717008
704543A
720777-PH
720778-PH
79
111
113
114
123
124
124
127
141
141
151
152
153
156
157
158
211
212
214
250
251
261
271
310
312
313
314
401
406
468
469
490
490
531
532
534
535
541
541
541
541
541
541
543
544
545
545
545
545
548
702
710
710
717
717
717
724
725
726
728
732
774
789
792
806
808
824
885
885
886
886
886
901
953
954
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 401-00356A | 401-00356A | MAIN PUMP | |
| 2401-9223KT | 2401-9223KT | SEAL KIT, MAIN PUMP+REG. | |
| 704544A | 704544A | Check 2 assy | |
| 704550A | 704550A | Check 1 assy | |
| 717005 | 717005 | Tilting pin assy | |
| 717008 | 717008 | Swash plate assy | |
| 704543A | 704543A | Piston and shoe assy | |
| 720777-PH | 720777-PH | Cylinder assy | |
| 720778-PH | 720778-PH | Cylinder assy | |
| 79 | 719753 | Valve, proportional | |
| 111 | 124568 | SHAFT, DRIVING(F) | |
| 113 | 124569 | SHAFT, DRIVING(R) | |
| 114 | 113783 | COUPLING, SPLINE | |
| 123 | 219362 | Bearing, roller | |
| 124 | 219363 | Bearing, spacer | |
| 127 | 113784 | BEARING, SPACER | |
| 141 | 137491 | Block, cylinder | |
| 141 | 137491 | Block, cylinder | |
| 151 | PISTON | Piston, control | |
| 152 | SHOE | Shoe | |
| 153 | 115786 | PLATE, PUSH | |
| 156 | 121437 | Bush, spherical | |
| 157 | 113787 | SPRING, CYLINDER | |
| 158 | 113789 | Spacer | |
| 211 | 113790 | PLATE, SHOE | |
| 212 | 113780 | PLATE, SWASH | |
| 214 | 218550 | Bush, tilting | |
| 250 | 718424 | SUPPORT KIT | |
| 251 | 113791 | SUPPORT | |
| 261 | 113792 | COVER, SEAL(F) | |
| 271 | 113794 | CASING, PUMP | |
| 310 | 707849 | VALVE BLOCK KIT | |
| 312 | 113795 | BLOCK, VALVE | |
| 313 | 115798 | PLATE, VALVE(R) | |
| 314 | 115799 | Plate, valve | |
| 401 | 113797 | Bolt, socket | |
| 406 | 200846 | Bolt, socket | |
| 468 | 108847 | Plug, vp | |
| 469 | 108848 | PLUG;VP | |
| 490 | 224308 | PLUG;PT | |
| 531 | 113807 | PIN, TILTING | |
| 532 | 113798 | PISTON, SERVO | |
| 534 | 113799 | Stopper | |
| 535 | 113800 | Stopper | |
| 541 | 113706 | Seat | |
| 541 | 113706 | Seat | |
| 543 | 113705 | Stopper 1 | |
| 544 | 113703 | Stopper 2 | |
| 545 | 200166 | Ball, steel | |
| 545 | 200166 | Ball, steel | |
| 548 | 113380 | PIN | |
| 702 | 220019 | O-ring | |
| 710 | 204452 | O-ring | |
| 717 | 201639 | O-ring | |
| 724 | 201765 | O-RING | |
| 725 | 201689 | O-RING | |
| 726 | S8000141 | O-RING | |
| 728 | 201721 | O-ring | |
| 732 | 220016 | O-ring | |
| 774 | 212231 | Seal | |
| 789 | 203480 | Ring, back-up | |
| 792 | 203418 | Ring, back-up | |
| 806 | 201557 | NUT;HEX. | |
| 808 | 102048 | Nut | |
| 824 | 202606 | Ring, snap | |
| 885 | 113801 | Pin | |
| 886 | 200678 | PIN;SPRING | |
| 901 | 212033 | BOLT;EYE | |
| 953 | 118892 | Screw, set | |
| 954 | 113803 | Screw, adjust |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
