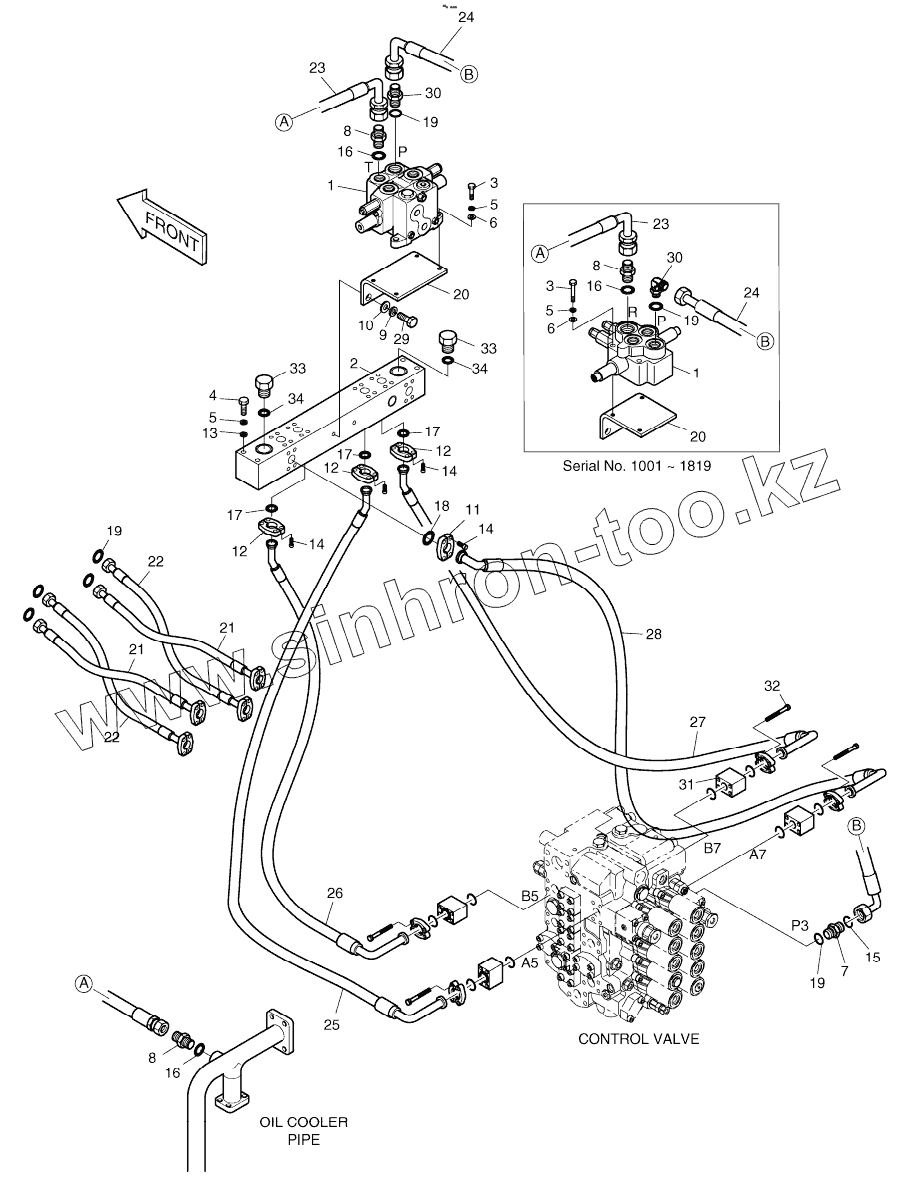

Каталог запасных частей к технике: Doosan S225LC-V. MAIN PIPING - ARTI.BOOM
2181-2627D1
2181-2627D1
400-01299
1
1
1
1
2
3
3
3
3
4
5
5
5
5
5
5
6
6
6
6
6
6
7
8
8
8
9
10
11
12
12
12
13
14
14
14
15
16
16
16
17
17
17
18
19
19
19
19
20
20
20
20
21
21
22
22
23
23
24
24
24
24
25
26
27
28
29
30
30
30
30
31
32
33
33
34
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2181-2627D1 | 2181-2627D1 | ADAPTER | |
| 400-01299 | 400-01299 | MAIN PIPING | |
| 1 | 2420-9365 | Valve, control | |
| 1 | K1004312 | VALVE;CONTROL | |
| 2 | 423-00185B | BLOCK | |
| 3 | S0559353 | BOLT M10X1.5X90 | |
| 3 | S0558453 | Bolt | |
| 4 | S0559553 | Bolt | |
| 5 | S5102603 | WASHER;SPRING M10 | |
| 5 | S5102603 | WASHER;SPRING M10 | |
| 6 | S5010613 | WASHER;PLAIN | |
| 6 | S5010613 | WASHER;PLAIN | |
| 7 | 2181-2627D1 | ADAPTER | |
| 8 | 2181-1126D25 | ADAPTER PFO1-PF1 | |
| 9 | S5102903 | WASHER;SPRING | |
| 10 | S5010913 | WASHER M16 | |
| 11 | 2181-9083 | Flange | |
| 12 | 2181-9079 | FLANGE | |
| 13 | 2114-1058D10 | WASHER | |
| 14 | S2212266 | BOLT;SOCKET M10X1.5X30 | |
| 15 | S8000231 | O-RING | |
| 16 | S8000291 | O-RING | |
| 17 | 2180-1026D2 | O-RING | |
| 18 | 2180-1026D19 | O-RING | |
| 19 | S8030121 | O-RING | |
| 20 | 195-00419 | BRACKET | |
| 20 | 195-00419A | BRACKET | |
| 21 | 2184-1229D6 | Hose | |
| 22 | 2184-1229D10 | Hose | |
| 23 | 2184-1036D112 | HOSE | |
| 24 | DS2013482 | HOSE 3/4"-800L | |
| 24 | 2184-1198D5 | HOSE(BOOM) 3/4-1000 | |
| 25 | DS2043084 | HOSE 1"-3/4"-1200L | |
| 26 | DS2043081 | HOSE 1"-900L | |
| 27 | DS2043083 | HOSE 1"-3/4"-830L | |
| 28 | DS2045331 | HOSE 1"-3/4"-1300L | |
| 29 | S0521266 | BOLT | |
| 30 | 2181-1702D78 | ELBOW | |
| 30 | 2181-2628D1 | ELBOW | |
| 31 | 181-00806 | BLOCK, SPACER | |
| 32 | S2213266 | BOLT, SOCKET | |
| 33 | 2181-1950D3 | PLUG | |
| 34 | S8000181 | O-RING |
