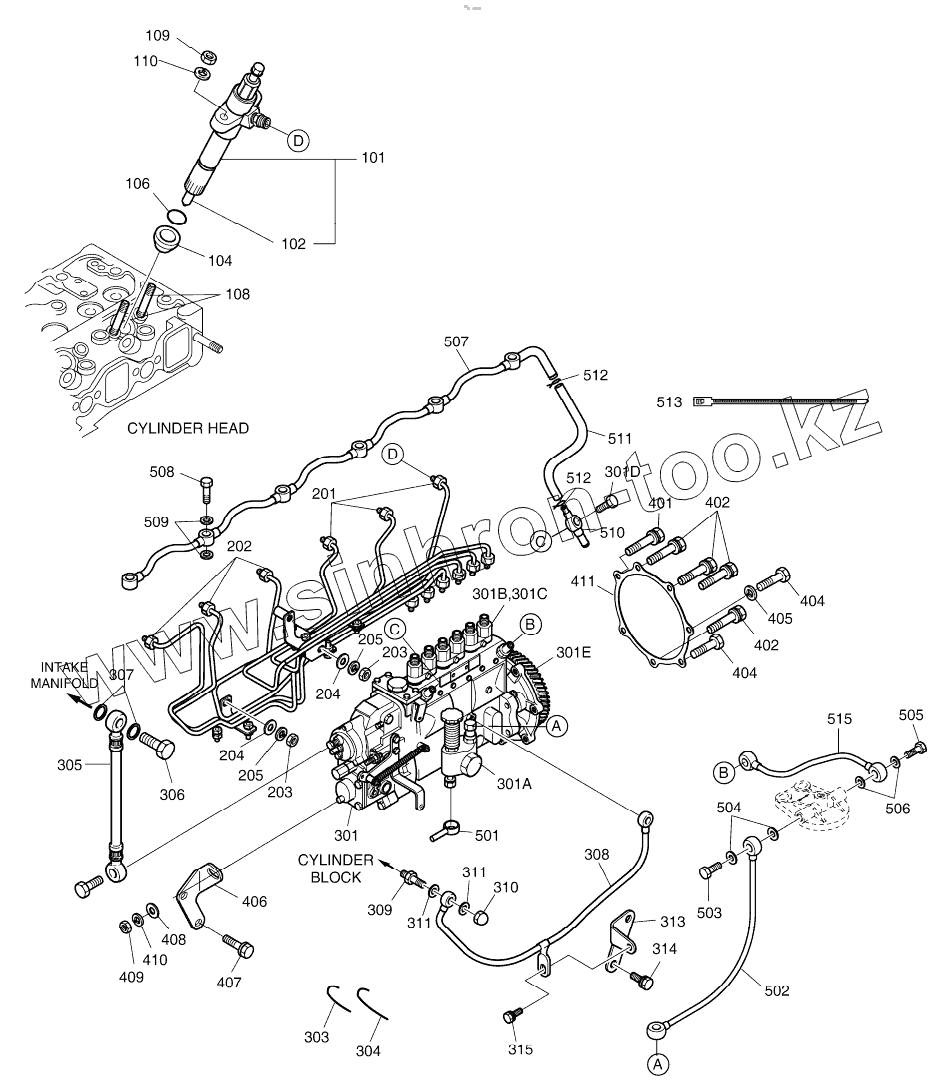

Каталог запасных частей к технике: Doosan S225LC-V. FUEL SYSTEM
101
101
101
101
101
102
102
102
102
104
104
106
108
109
110
201
201
201
202
202
202
203
203
204
204
205
205
301
301
301A
301B
301C
301D
301E
303
304
305
306
307
308
308
309
310
311
311
313
314
315
401
402
402
404
404
405
406
407
408
409
410
411
501
502
502
502
503
504
505
506
507
508
509
509
510
511
512
512
513
515
515
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 101 | 65.10101-7090 | Nozzle holder assy | |
| 101 | 65.10101-7092 | Nozzle holder assy | |
| 101 | 65.10101-7099 | Nozzle holder assy | |
| 101 | 65.10101-7099A | Nozzle holder assy | |
| 101 | 65.10101-7085A | Nozzle holder assy | |
| 102 | 65.10102-6060 | Nozzle | |
| 102 | 65.10102-6064 | Nozzle | |
| 102 | 65.10102-6069 | Nozzle | |
| 102 | 65.10102-6055 | Nozzle | |
| 104 | 65.96507-0044A | Ring, seal | |
| 104 | 65.96507-0044B | Ring, seal | |
| 106 | 65.96507-0047 | Ring, seal | |
| 108 | 65.90201-0099 | BOLT;STUD | |
| 109 | 06.11063-8214 | Nut | |
| 110 | 06.16731-2107 | Washer | |
| 201 | 65.10301-6085 | Pressure pipe assy | |
| 201 | 65.10301-6088 | PRESSURE PIPE ASS'Y | |
| 201 | 65.10301-6202 | Pressure pipe assy | |
| 202 | 65.10301-6086 | Pressure pipe assy | |
| 202 | 65.10301-6089 | PRESSURE PIPE ASS'Y | |
| 202 | 65.10301-6203 | Pressure pipe assy | |
| 203 | 06.11063-8214 | Nut | |
| 204 | 06.15010-2311 | Washer | |
| 205 | 06.16731-2107 | Washer | |
| 301 | 65.11101-7384 | Pump, injection | |
| 301 | 65.11101-7391 | Pump, injection | |
| 301A | 105220-6490 | FEED PUMP | |
| 301B | 131150-2620 | PLUNGER | |
| 301C | 131110-5520 | VALVE;DELIVERY | |
| 301D | 131424-1520 | VALVE;OVERFLOW | |
| 301E | 156639-882C | COUPLING | |
| 303 | 65.11596-0001 | WIRE;SEAL | |
| 304 | 65.11596-0002 | WIRE;SEAL | |
| 305 | 65.08301-6010A | HOSE;AIR | |
| 306 | 65.98150-0053B | SCREW;HOLLOW | |
| 307 | 06.56180-0714 | RING;SEAL | |
| 308 | 65.05701-5200 | PIPE;OIL | |
| 308 | 65.05701-5328 | Pipe, oil | |
| 309 | 65.98155-0011 | UNION;HOLLOW | |
| 310 | 06.12172-9314 | NUT;CAP | |
| 311 | 06.56180-0714 | RING;SEAL | |
| 313 | 65.97403-0014 | Bracket | |
| 314 | 06.01943-3213 | BOLT ASS'Y M10X1.25X20 | |
| 315 | 06.01923-3112 | Bolt | |
| 401 | 06.01913-3122 | Bolt | |
| 402 | 06.01913-3124 | BOLT ASS'Y M8X65 | |
| 404 | 06.01283-7128 | BOLT;HEXM8X85 | |
| 405 | 06.16731-2107 | Washer | |
| 406 | 65.11401-0002C | BRACKET;REAR | |
| 407 | 06.01953-3213 | BOLT ASS'Y M10X1.25X20 | |
| 408 | 06.15010-2312 | Washer | |
| 409 | 06.11063-9215 | NUT M10X1.25 | |
| 410 | 06.16731-2108 | Washer | |
| 411 | 65.11902A0001 | GASKET;INJECTION PUMP | |
| 501 | 65.12301-5022 | PIPE;FUEL | |
| 502 | 65.96341-0107 | Hose, fuel | |
| 502 | 65.96341-0100 | HOSE;FUEL | |
| 502 | 65.96341-0140 | Hose, fuel | |
| 503 | 06.78144-2204 | Screw | |
| 504 | 65.96507-0043 | Ring | |
| 505 | 06.78144-2204 | Screw | |
| 506 | 65.96507-0043 | Ring | |
| 507 | 65.12301-5824 | PIPE;FUEL | |
| 508 | 65.98150-0015B | SCREW;HOLLOW | |
| 509 | 06.56180-0712 | Ring | |
| 509 | 65.96501-0001 | Ring, seal | |
| 510 | 65.12301-5825 | PIPE;FUEL(RETURN) | |
| 511 | 65.96301-0176 | HOSE;RUBBER | |
| 512 | 65.97401-0089 | CLIP | |
| 513 | 65.97460-0002 | CABLE TIA | |
| 515 | 65.96341-0080 | Hose, fuel | |
| 515 | 65.96341-0100 | HOSE;FUEL |
