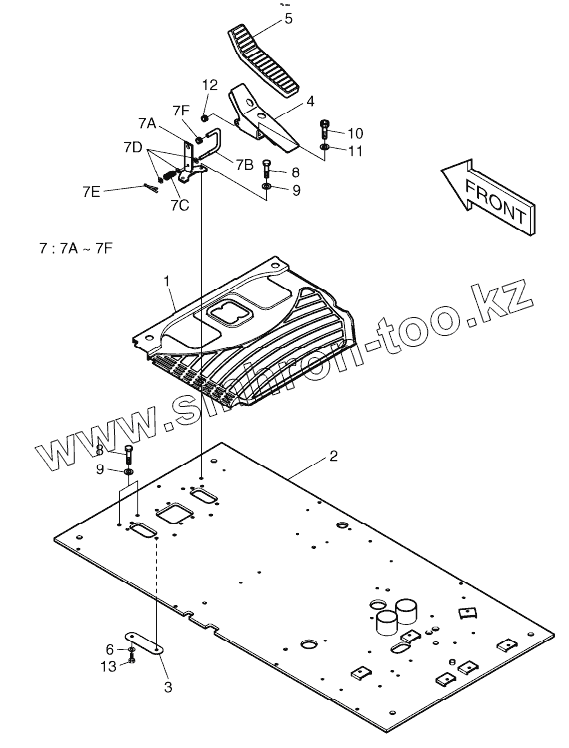

621-02077
1
2
2
3
4
5
6
7
7A
7A
7B
7C
7D
7E
7F
7F
8
8
9
9
10
11
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
621-02077
621-02077
FLOOR ASS'Y
1
161-00448
MAT;FLOOR
2
621-02072A
PLATE;FLOOR
2
621-02072B
PLATE;FLOOR
3
621-01507
PLATE;FLOOR
4
195-01736
BRACKET;PEDAL(R.H)
5
161-00386
RUBBER;PEDAL
6
2114-1898D1
WASHER
7
195-01940
BRACKET
7A
195-01937
BRACKET
7B
133-00167
BAR
7C
129-00144
SPRING
7D
2114-1898D14
WASHER
7E
S5735351
PIN;SPLIT
7F
160-00045
BUSHING;RUBBER
8
2120-2166D5
BOLT M8X1.25X20
9
2114-1898D14
WASHER
10
S2211866
BOLT;SOCKET
11
S5110601
WASHER;SPRING
12
160-00045
BUSHING;RUBBER
13
S0511653
BOLT M10X1.5X16
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
