ELECTRIC WIRING (1) - BATTERY
ELECTRIC WIRING (2) - ENGINE
ELECTRIC WIRING (1) - RELATED PARTS
AIR CONDITIONER
AIR CONDITIONER - AIRCON UNIT
HEATER PIPING
TRACK FRAME
TRAVEL DEVICE
IDLER
TRACK SPRING
TRACK SPRING
UPPER ROLLER
LOWER ROLLER
LOWER ROLLER
TRACK SHOE ASSY - 600G
TRACK SHOE ASSY - 600G
CENTER JOINT
TRAVEL PIPING COVER
TRAVEL PIPING
BOOM - 5.7m
ARM - 2.9m
BUCKET ASSY - 0.8m3
FRONT PIPING
LUBRICATION PIPING
MAIN PUMP
REGULATOR
GEAR PUMP
SWING MOTOR
SWING REDUCTION GEAR
SWING REDUCTION GEAR
TRAVEL MOTOR
TRAVEL MOTOR
TRAVEL REDUCTION GEAR
TRAVEL REDUCTION GEAR
CONTROL VALVE
CONTROL VALVE
CONTROL VALVE
CONTROL VALVE - ARTI.BOOM
CONTROL VALVE - ARTI.BOOM
REMOTE CONTROL VALVE
REMOTE CONTROL VALVE
REMOTE CONTROL VALVE - SWITCH
PEDAL VALVE
PEDAL VALVE - ARTI.BOOM
SOLENOID VALVE
PILOT VALVE
BOOM CYLINDER (L.H)
BOOM CYLINDER (R.H)
ARM CYLINDER
BUCKET CYLINDER
BUCKET CYLINDER - 6.2m ARM
BOOM CYLINDER (L.H) - LOCK VALVE
BOOM CYLINDER (R.H) - LOCK VALVE
ARM CYLINDER - LOCK VALVE
BOOM CYLINDER (L.H) - ARTI.BOOM
BOOM CYLINDER (R.H) - ARTI.BOOM
ARTI.BOOM CYLINDER
BOOM CYLINDER(L.H.) - LOCK VALVE FOR ARTI.BOOM
BOOM CYLINDER(R.H.) - LOCK VALVE FOR ARTI.BOOM
ARTI.BOOM CYLINDER - LOCK VALVE
OPTION VALVE
BREAKER VALVE
CONTROL VALVE - KVMG270
CONTROL VALVE - KVMG270
CONTROL VALVE - KVMG270
TOOLS
SPACE PARTS
CABIN NAME PLATE - EUROPE
NAME PLATE - EUROPE
CABIN NAME PLATE - ENGLISH
NAME PLATE - ENGLISH
FUEL FILLER PUMP ASSY
DOUBLE FUEL FILTER ASSY
NOISE FILTER ASSY - EUROPE
CABIN LAMP ASSY
6 - LAMP & BEACON (TELESCOPIC)
ROTATING BEACON
TRAVEL/SWING ALARM ASSY
TRAVEL ALARM ASSY
RETURN FILTER PRESS SWITCH
ALTERNATOR
OVERLOAD WARNING ASSY
FLOOR PLATE - TILTING
SUN VISOR ASSY
SUN ROOF ASSY
AIR CLEANER ASSY
JOYSTICK VALVE ASSY 3 - SWITCH
CABIN LOW GUARD
F.O.G.S ASSY
TRACK SHOE ASSY - 700G
TRACK SHOE ASSY - 700G
TRACK SHOE ASSY - 800G
TRACK SHOE ASSY - 800G
TRACK SHOE ASSY - 900G
TRACK SHOE ASSY - 900G
TRACK SHOE ASSY - 910T
SEALED TRACK SHOE - 600G
SEALED TRACK SHOE - 700G
SEALED TRACK SHOE - 800G
SEALED TRACK SHOE - 900G
BOOM - 5.2m
BOOM PIPING - 5.2m
LUBRICATION PIPING
ARM - 2.0m
ARM - 2.4m
ARM - 3.5m
ARM PIPING - ARM 2.0m
ARM PIPING - ARM 2.4m
ARM PIPING - ARM 3.5m
BUCKET ASSY - 0.45m3
BUCKET ASSY - 0.7m3
BUCKET ASSY - 0.8m3 H.D TYPE
BUCKET ASSY - 0.9m3
BUCKET ASSY - 1.0m3
BUCKET ASSY - 1.1m3
BUCKET ASSY - 0.67m3(36") - SIDE PIN
BUCKET ASSY - 0.67m3(36") - VERTICAL PIN
BUCKET ASSY - 0.80m3(42") - SIDE PIN
BUCKET ASSY - 0.80m3(42") - VERTICAL PIN
BUCKET ASSY - 0.95m3(48") - SIDE PIN
BUCKET ASSY - 0.095m3(48") - VERTICAL PIN
BUCKET ASSY - 1.1m3(54") - SIDE PIN
BUCKET ASSY - 1.1m3(54") - VERTICAL PIN
BUCKET ASSY - 1.17m3(57") - SIDE PIN
BUCKET ASSY - 1.17m3(57") - VERTICAL PIN
BUCKET ASSY - 1.31m3(63") - SIDE PIN
BUCKET ASSY - 1.31m3(63") - VERTICAL PIN
BOOM - 8.5m
ARM ASSY - 6.2m
BUCKET - 0.35m - LONG FRONT
BOOM PIPING - 8.5m
ARM PIPING - ARM 6.2m
LUBRICATION PIPING
BUCKET ASSY - 0.38m - DITCH CLEANING
BUCKET ASSY - 0.46m - DITCH CLEANING
COUNTER WEIGHT - LONG FRONT
LOCK VALVE PIPING - BOOM 5.2m
LOCK VALVE PIPING - BOOM 5.7m
LOCK VALVE PIPING - BOOM 8.5m
MAIN PIPING - BREAKER
PILOT PIPING - BREAKER
BOOM PIPING - BREAKER - BOOM 5.2m
BOOM PIPING - BREAKER - BOOM 5.7m
ARM PIPING - ARM 2.0m (ONE AND TWO WAY)
ARM PIPING - ARM 2.4m (ONE AND TWO WAY)
ARM PIPING - ARM 2.9m (ONE AND TWO WAY)
ARM PIPING - ARM 3.5m (ONE AND TWO WAY)
NAME PLATE - ONE AND TWO WAY
PILOT PIPING (CABIN) - ROTATING AND TILTING
MAIN PIPING - ROTATING AND TILTING
BOOM PIPING - ROTATING AND TILTING
ARM PIPING - 2.9m ROTATING AND TILTING
TROPICAL COVER
ARTI.BOOM ASSY
MAIN PIPING - ARTI.BOOM
PILOT PIPING - ARTI. BOOM
FLOOR ASSY - ARTI.BOOM
FLOOR ASSY - ARTI.BOOM AND TILT
FRONT PIPING - ARTI.BOOM
ARM PIPING - ARM 2.0m (ARTI.BOOM)
ARM PIPING - ARM 2.4m (ARTI.BOOM)
ARM PIPING - ARM 2.9m (ARTI.BOOM)
FRONT LUBRICATION PIPING - ARTI.BOOM
LOCK VALVE PIPING - ARTI.BOOM
MAIN PIPING - ONE AND TWO WAY (ARTI.BOOM)
FRONT PIPING - ONE AND TWO WAY (ARTI.BOOM)
ARM PIPING - ARM 2.0m 1 AND 2 WAY (ARTI.BOOM)
ARM PIPING - ARM 2.4m 1 AND 2 WAY (ARTI.BOOM)
ARM PIPING - ARM 2.9m 1 AND 2 WAY (ARTI.BOOM)
N
CLAMSHELL PIPING
NOISE KIT - EUROPE
F.O.G.S GUARD - TURBO
5
6
7
8
9
10
11
12
13
14
14
15
15
16
16
Позиция на иллюстрации
Заводской номер детали
Название детали
500-00148
500-00148

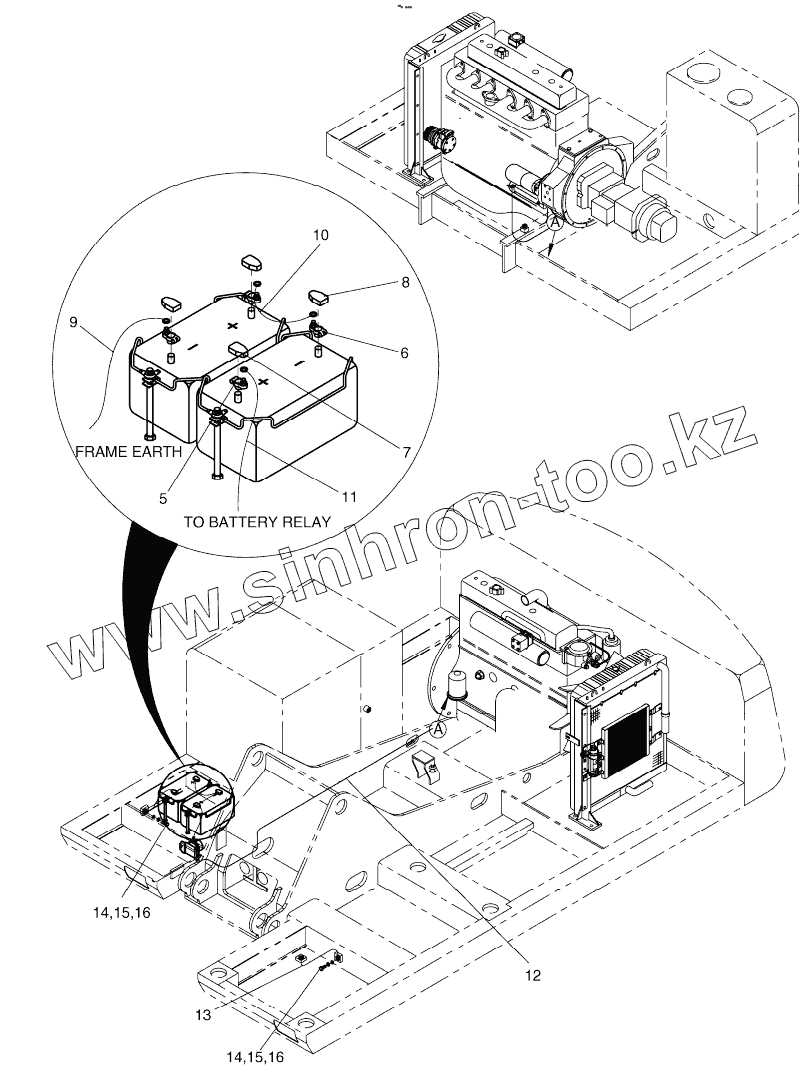

ELECTRIC WIRING(1)-BATTERY
5
2550-1014D1
TERMINAL;BATTERY(+)
6
2550-1014D2
TERMINAL;BATTERY(-)
7
2160-1212
CAP;BATTTML (+)
8
2160-1213
CAP;BATTTML (-)
9
2553-1275D5
CABLE;FL PLATE-EARTH 60B-300L
10
2553-1275D46
CABLE, BATT-BATT
11
2553-1275D69
CABLE;BATT-BATT RELAY 60R-300L
12
2553-1275D8
CABLE, BATT RY-STARTER
13
2553-1275D5
CABLE;FL PLATE-EARTH 60B-300L
14
S0511653
BOLT M10X1.5X16
15
S5102603
WASHER;SPRING M10
16
S5010613
WASHER;PLAIN
